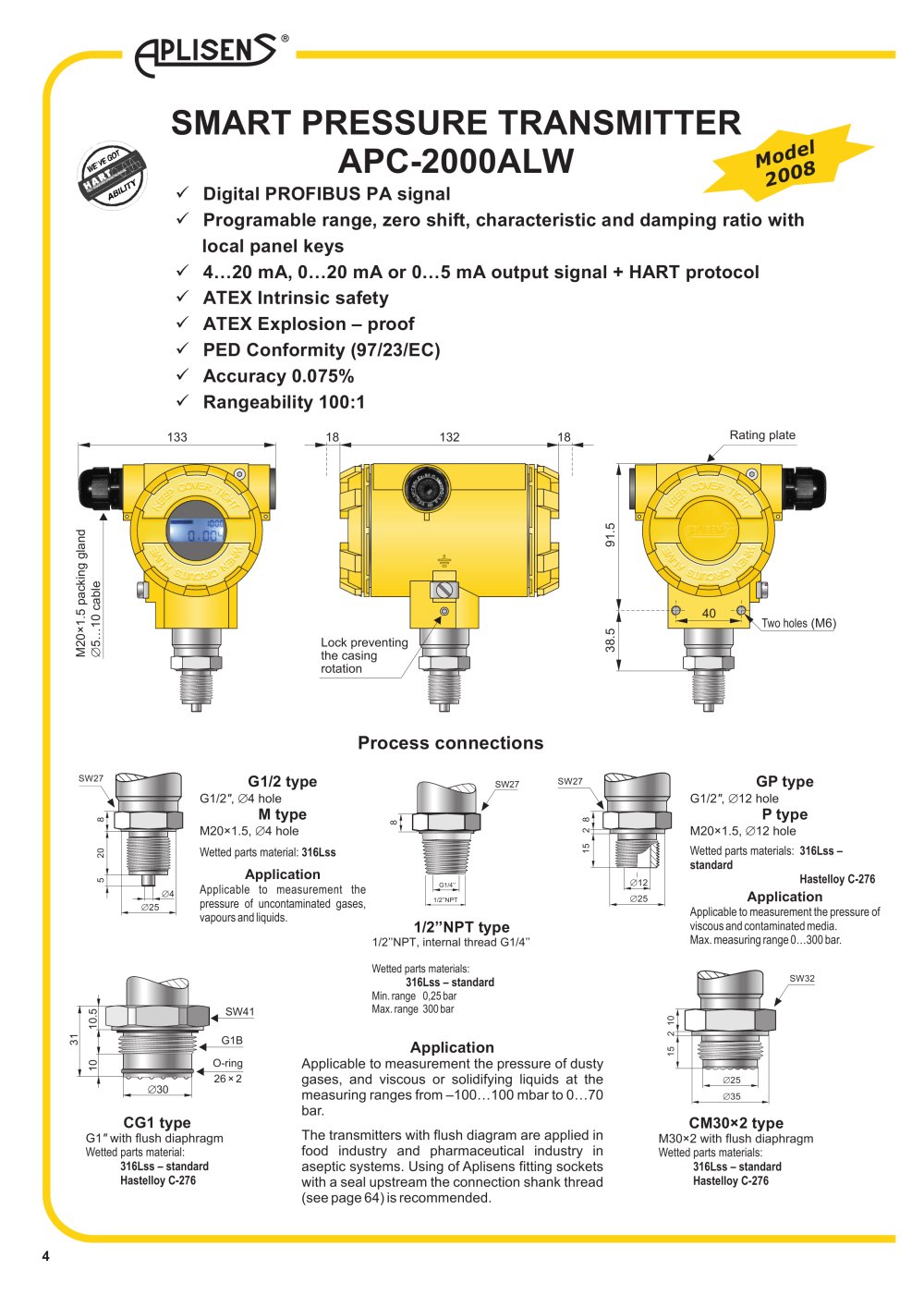

SMART PRESSURE TRANSMITTER APC-2000ALW

dlMoe2800

 Digital PROFIBUS PA signal  Programable range, zero shift, characteristic and damping ratio with local panel keys  4…20 mA, 0…20 mA or 0…5 mA output signal + HART protocol  ATEX Intrinsic safety  ATEX Explosion – proof  PED Conformity (97/23/EC)  Accuracy 0.075%  Rangeability 100:1

133 1818 132 Rating plate
91.538.5 40 Two holes (M6)
5…10 cable Lock preventing the casing rotation
M20×1.5 packing gland Ć

Process connections

SW27

G1/2 type

SW27 SW27

GP type

G1/2 " , Ć 4 hole G1/2 " , Ć 12 hole

M type

8 8 8

P type

M20×1.5, Ć 4 hole
215 M20×1.5, Ć 12 hole
20 Wetted parts material: 316Lss Wetted parts materials: 316Lss – standardHastelloy C-276
5

Application

Applicable to measurement the pressure of uncontaminated gases, vapours and liquids.
G1/4’’ Ć 12 Ć 4 1/2’’NPT Ć 25 Ć 25

Application

Applicable to measurement the pressure of viscous and contaminated media.Max. measuring range 0…300 bar.

1/2’’NPT type

1/2’’NPT, internal thread G1/4’’ Wetted parts materials: 316Lss – standard
SW32 Min. range 0,25 bar Max. range 300 bar 10.5 21510 31

Application

10 O-ring 26

Applicable to measurement the pressure of dusty gases, and viscous or solidifying liquids at the measuring ranges from –100…100 mbar to 0…70 bar. The transmitters with flush diagram are applied in food industry and pharmaceutical industry in aseptic systems. Using of Aplisens fitting sockets with a seal upstream the connection shank

× 2G1BSW41 Ć 25 Ć 30 Ć 35

CG1 type CM30×2 type

G1 " with flush diaphragm M30×2 with flush diaphragm Wetted parts material: Wetted parts materials: 316Lss – standardHastelloy C-276 316Lss – standardHastelloy C-276

thread (see page 64) is recommended. 4
