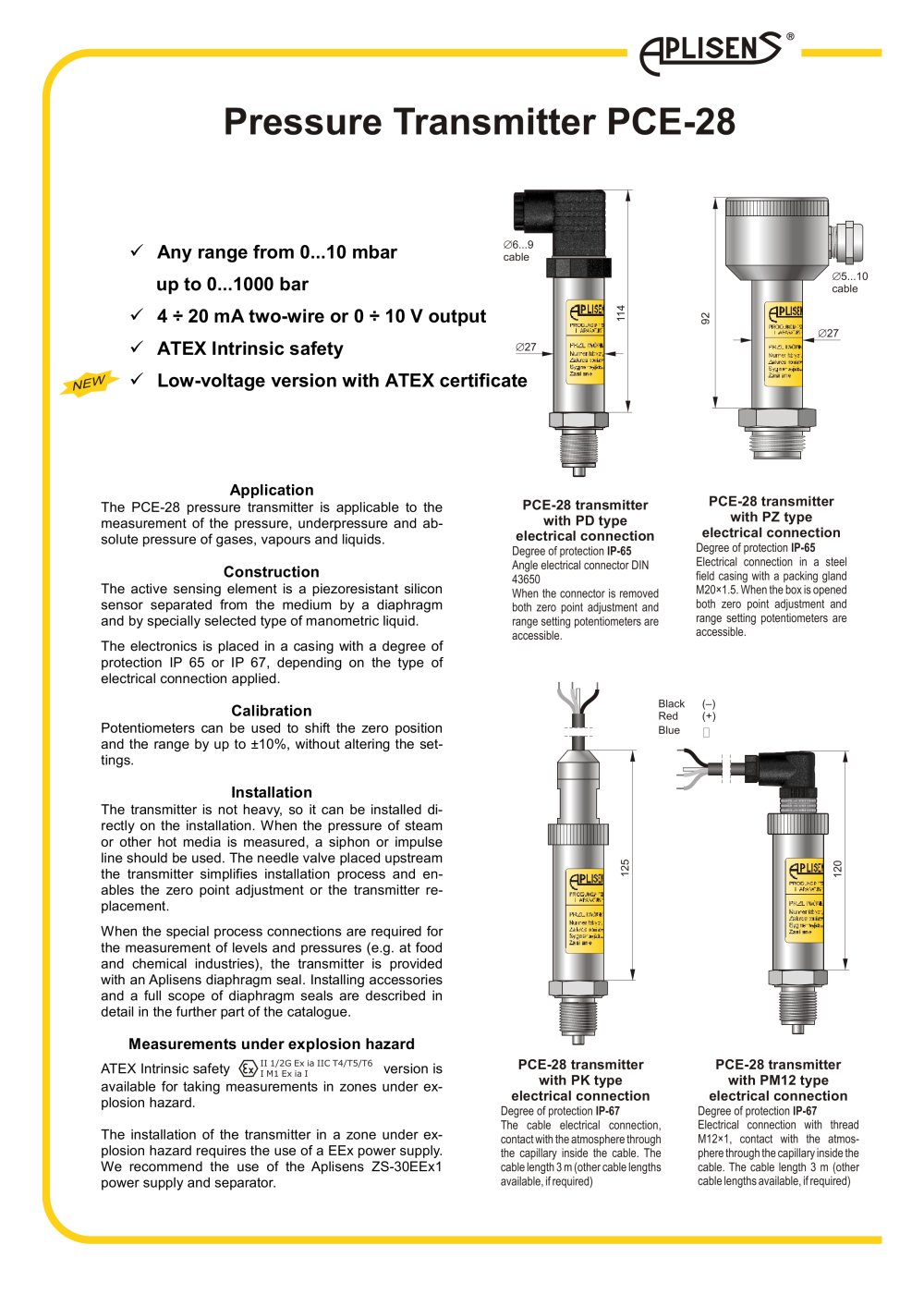

Pressure Transmitter PCE-28
Any range from 0...10 mbar up to 0...1000 bar
Ć 6...9cable Ć 5...10cable 4 20 mA two-wire or 0 10 V output
114 92 Ć 27
Black()Red(+)Blue ATEX Intrinsic safety
Ć 27 NEW Low-voltage version with ATEX certificate
Application
The PCE-28 pressure transmitter is applicable to the measurement of the pressure, underpressure and ab-solute pressure of gases, vapours and liquids.
PCE-28 transmitter with PD type electrical connection PCE-28 transmitter with PZ type electrical connection
Degree of protection IP-65 Degree of protection IP-65
Construction
Angle electrical connector DIN 43650 When the connector is removed both zero point adjustment and range setting potentiometers are accessible. Electrical connection in a steel field casing with a packing gland M201.5. When the box is opened both zero point adjustment and range setting potentiometers are accessible.
The active sensing element is a piezoresistant silicon sensor separated from the medium by a diaphragm and by specially selected type of manometric liquid. The electronics is placed in a casing with a degree of protection IP 65 or IP 67, depending on the type of electrical connection applied.
Calibration
Potentiometers can be used to shift the zero position and the range by up to 10%, without altering the set-tings.
Installation
The transmitter is not heavy, so it can be installed di-rectly on the installation. When the pressure of steam or other hot media is measured, a siphon or impulse line should be used. The needle valve placed upstream the transmitter simplifies installation process and en-ables the zero point adjustment or
125 120 the transmitter re-placement. When the special process connections are required for the measurement of levels and pressures (e.g. at food and chemical industries), the transmitter is provided with an Aplisens diaphragm seal. Installing accessories and a full scope of diaphragm seals are described in detail in the further part of the catalogue.
Measurements under explosion hazard
ATEX Intrinsic safety version is available for taking measurements in zones under ex-plosion hazard. The installation of the transmitter in a zone under ex-plosion hazard requires the use of a EEx power supply. We recommend
II 1/2G Ex ia IIC T4/T5/T6I M1 Ex ia I PCE-28 transmitter with PK type electrical connection PCE-28 transmitter with PM12 type electrical connection
Degree of protection IP-67 Degree of protection IP-67 The cable electrical connection, contact with the atmosphere through the capillary inside the cable. The cable length 3 m (other cable lengths available, if required) Electrical connection with thread M121, contact with the atmos-phere through the capillary inside the cable. The cable length 3 m (other cable lengths available, if required)
the use of the Aplisens ZS-30EEx1 power supply and separator.
