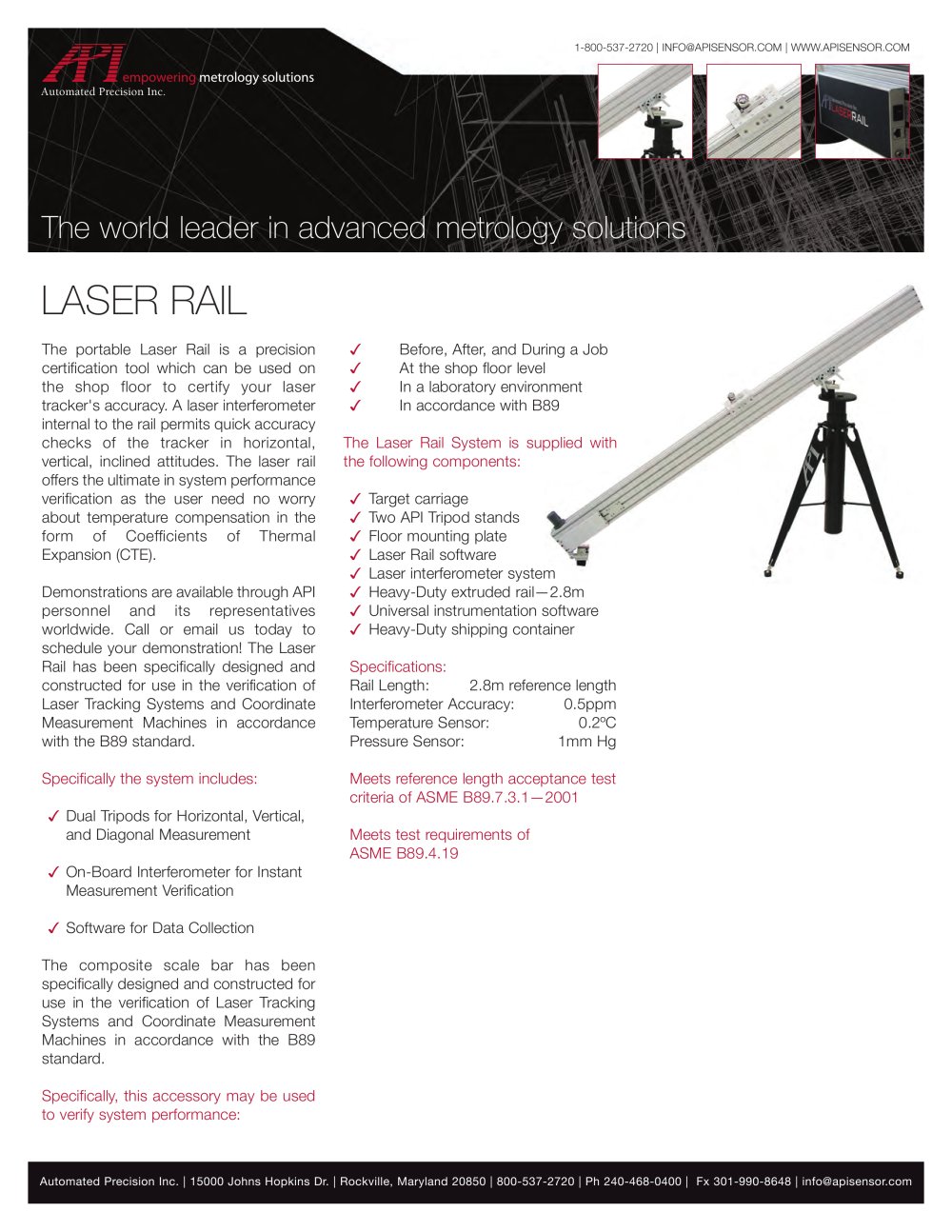

LASER RAIL

The portable Laser Rail is a precision certification tool which can be used on the shop floor to certify your laser tracker's accuracy. A laser interferometer internal to the rail permits quick accuracy checks of the tracker in horizontal, vertical, inclined attitudes. The laser rail offers the ultimate in system performance verification as the user need no worry about temperature compensation in the form of Coefficients of Thermal Expansion (CTE).

Demonstrations are available through API personnel and its representatives worldwide. Call or email us today to schedule your demonstration! The Laser Rail has been specifically designed and constructed for use in the verification of Laser Tracking Systems and Coordinate Measurement Machines in accordance with the B89 standard.

Before, After, and During a Job At the shop floor level In a laboratory environment In accordance with B89

y y y y

The Laser Rail System is supplied with the following components:

Target carriage Two API Tripod stands Floor mounting plate Laser Rail software Laser interferometer system Heavy-Duty extruded rail—2.8m Universal instrumentation software Heavy-Duty shipping container

Specifications:

Rail Length: 2.8m reference length Interferometer Accuracy: 0.5ppm Temperature Sensor: 0.2°C

Pressure Sensor: 1mm Hg

Specifically the system includes:

y Dual Tripods for Horizontal, Vertical, and Diagonal Measurement

y On-Board Interferometer for Instant Measurement Verification

y Software for Data Collection

The composite scale bar has been specifically designed and constructed for use in the verification of Laser Tracking Systems and Coordinate Measurement Machines in accordance with the B89 standard.

Meets reference length acceptance test criteria of ASME B89.7.3.1—2001

Meets test requirements of ASME B89.4.19

Specifically, this accessory may be used to verify system performance:

Automated Precision Inc. | 15000 Johns Hopkins Dr. | Rockville, Maryland 20850 | 800-537-2720 | Ph 240-468-0400 | Fx 301-990-8648 | info@apisensor.com
