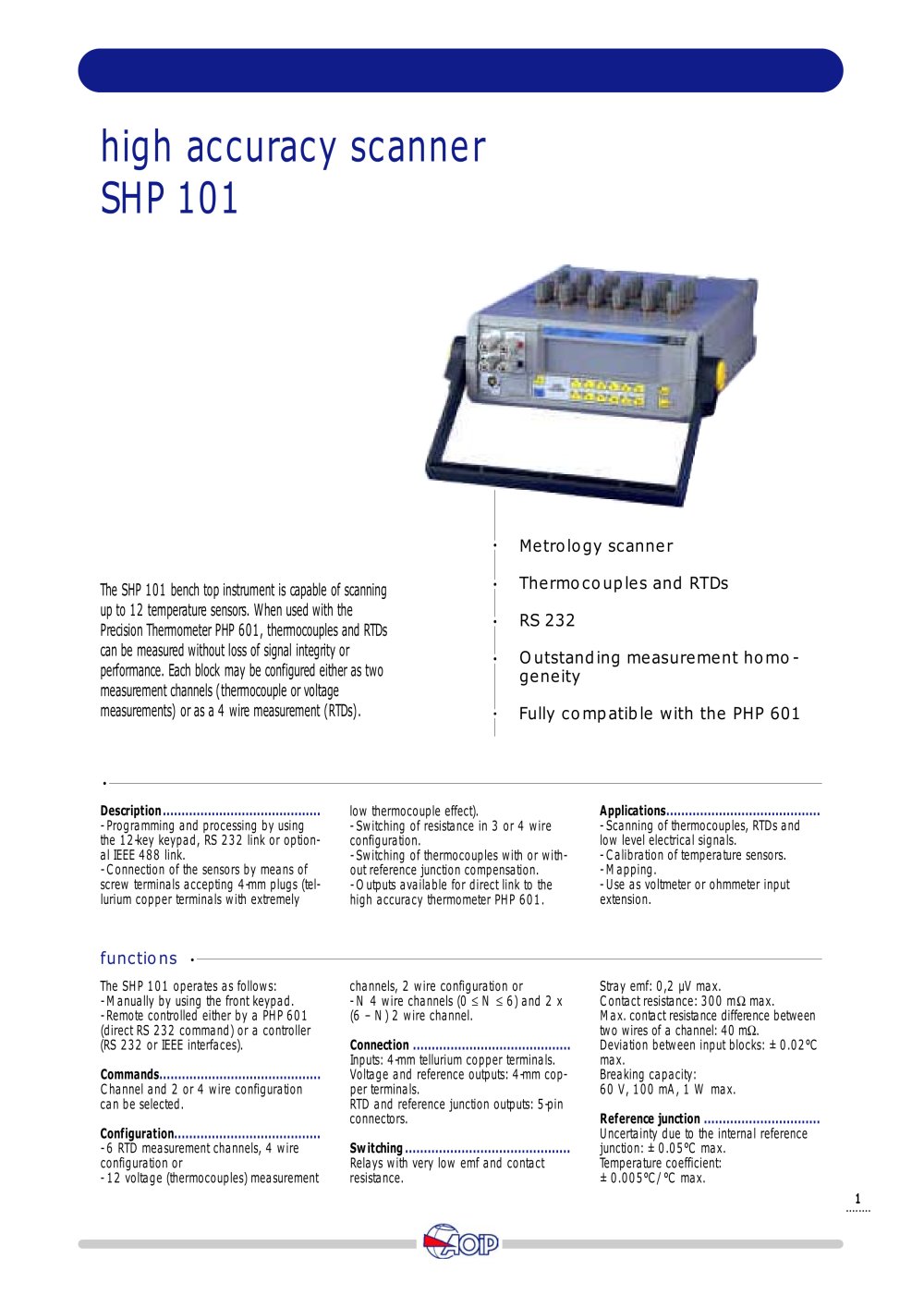

High accuracy scanner SHP 101 - AOIP - #1

The SHP 101 bench top instrument is capable of scanning up to 12 temperature sensors. When used with the Precision Thermometer P-P 601, thermocouples and RIDs can be measured without loss of signal integity or performance. Each bock may be configured either as two measurement channels (thermocouple or voltage measurements) or as a 4 wire measurement (RIDs).

- Programming and processing by using the 12-key keypad, RS 232 link or option­al IEEE 488 link.

- Connection of the sensors by means of screw terminals accepting 4-nm plugs (tel­lurium copper terminals with extremely

- Scanning of thermocouples, RTDs and low level electrical signals. -Calibration of temperature sensors.

- Mapping.

- Use as voltmeter or ohmmeter input extension.

low thermocouple effect).

- Switching of resistance in 3 or 4 wire configuration.

- Switching of thermocouples with or with­out reference junction compensation.

- Outputs available for direct link to the high accuracy thermometer PHP 601.

The SHP 101 operates as follows: -Manually by using the front keypad. -Remote controlled either by a PHP601 (direct RS 232 command) or a controller (RS 232 or IEEE interfaces).

Channel and 2 or 4 wire configuration can be selected.

-6 RTD measurement channels, 4 wire configuration or

- 12 voltage (thermocouples) measurement

channels, 2 wire configuration or

- N 4 wire channels (0 < N < 6) and 2 x

(6 - N) 2 wire channel

Inputs: 4-mm tellurium copper terminals. Voltage and reference outputs: 4-mm cop­per terminals.

RTD and reference junction outputs: 5-pin connectors.

Relays with very low emf and contact resistance.

Stray emf: 0,2 uV max.

Contact resistance: 300 mQ max.

Max. contact resistance difference between

two wires of a channel: 40 mil

Deviation between input blocks: ± 0.02°C

max.

Breaking capacity:

60 V, 100 mA, 1 W max.

Uncertainty due to the internal reference junction: ± 0.05°C max. Temperature coefficient: ± 0.005°C/°C max.
