Créé le 15/02/2005 15:44 DATAACQUISITION

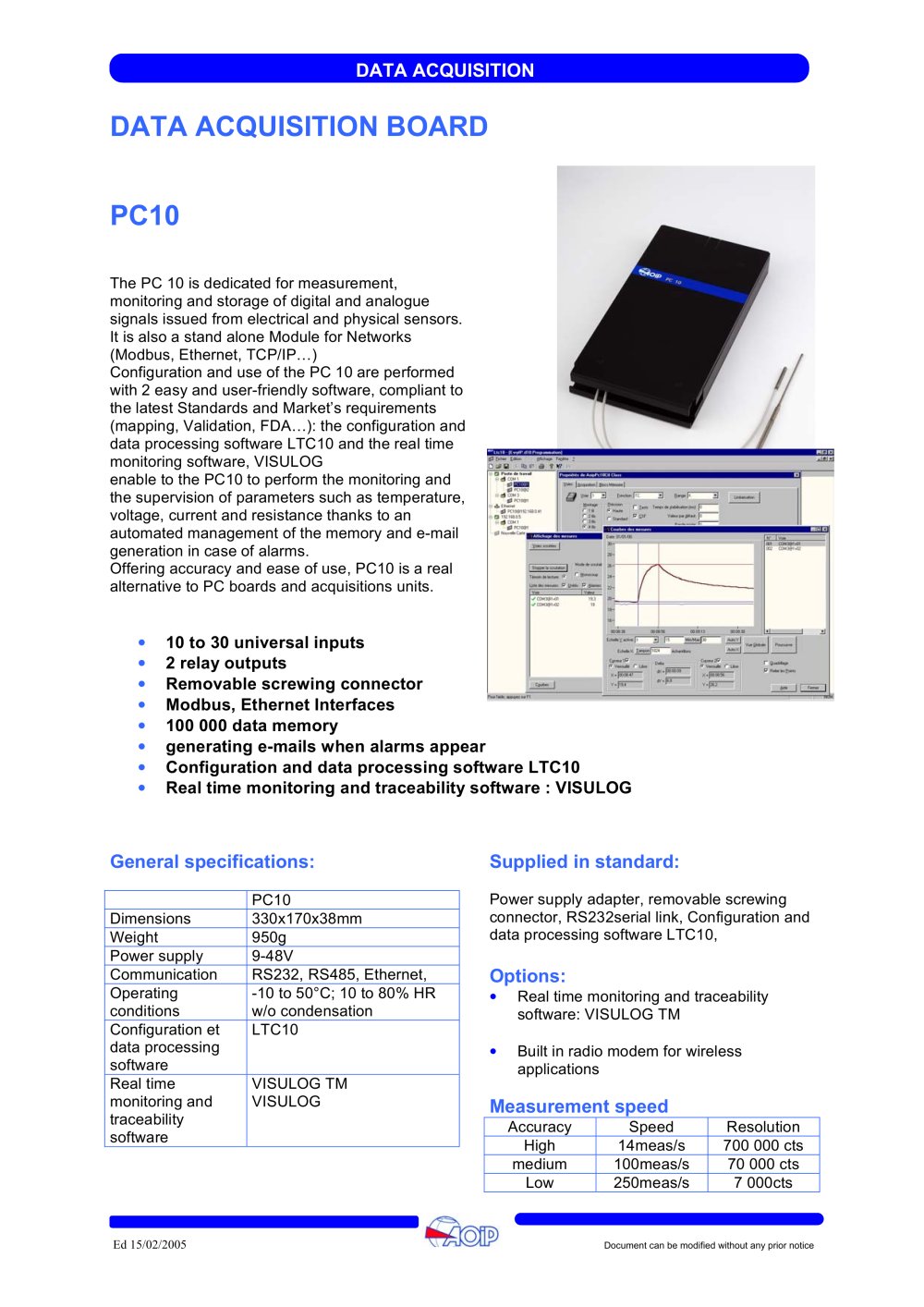

Acquisition module for networks PC 10 - 7451 DATA ACQUISITION BOARD PC10

The PC 10 is dedicated for measurement, monitoring and storage of digital and analogue signals issued from electrical and physical sensors. It is also a stand alone Module for Networks (Modbus, Ethernet, TCP/IP…) Configuration and use of the PC 10 are performed with 2 easy and user-friendly software, compliant to the latest Standards and Market’s requirements (mapping, Validation, FDA…): the configuration and data processing software LTC10 and the real time monitoring software, VISULOG enable to the PC10 to perform the monitoring and the supervision of parameters such as temperature, voltage, current and resistance thanks to an automated management of the memory and e-mail generation in case of alarms. Offering accuracy and ease of use, PC10 is a real alternative to PC boards and acquisitions units.

10 to 30 universal inputs 2 relay outputs Removable screwing connector Modbus, Ethernet Interfaces 100 000 data memory generating e-mails when alarms appear Configuration and data processing software LTC10 Real time monitoring and traceability software : VISULOG • • • • • • • •

General specifications: Supplied in standard:

PC10 Power supply adapter, removable screwing connector, RS232serial link, Configuration and data processing software LTC10, Dimensions 330x170x38mm Weight 950g Power supply 9-48V

Options:

Communication RS232, RS485, Ethernet, Operating conditions -10 to 50°C; 10 to 80% HR w/o condensation • • Real time monitoring and traceability software: VISULOG TM Built in radio modem for wireless applications Configuration et data processing software LTC10 Real time monitoring and traceability software VISULOG TM VISULOG

Measurement speed

Accuracy Speed Resolution High 14meas/s 700 000 cts medium 100meas/s 70 000 cts Low 250meas/s 7 000cts
Ed 15/02/2005 Document can be modified without any prior notice
