Vacuum System Accessories
43Pages

{{requestButtons}}

Catalog excerpts

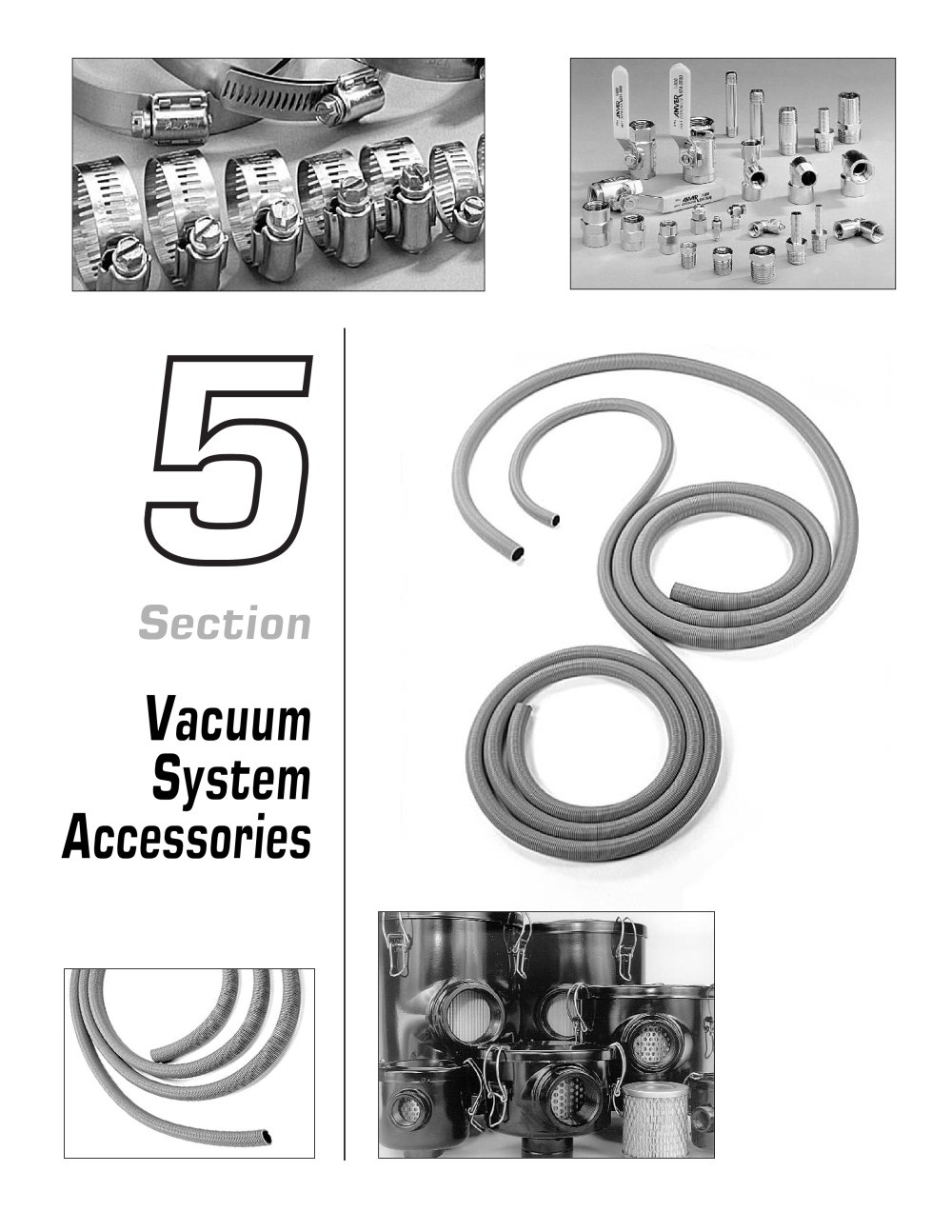

Vacuum System Accessories - 1

Section Vacuum System Accessories

Open the catalog to page 1
Vacuum System Accessories - 2

Warning The VLS-07 is designed to be a warning device for vacuum leakage detection. When properly installed on an ANVER vacuum lifter, the operator will be warned of a slow vacuum leakage and should have adequate time to safely lower the attached load. If the alarm signal is ignored and the lifting operation is continued, the vacuum loss may adversely affect the vacuum "hold", possibly resulting in serious injury to the operator. The VLS-07 is not designed for nor effective in detecting fast leaks or sudden failures of the vacuum system. Vacuum Leakage Sensing Systems VLS-07 Vacuum Leakage...

Open the catalog to page 2
Vacuum System Accessories - 3

Warning The VLS-07-20 is designed to be a warning device for vacuum leakage detection. When properly installed on an ANVER vacuum lifter, the operator will be warned of a slow vacuum leakage and should have adequate time to safely lower the attached load. If the alarm signal is ignored and the lifting operation is continued, the vacuum loss may adversely affect the vacuum "hold", possibly resulting in serious injury to the operator. The VLS-07-20 is not designed for nor effective in detecting fast leaks or sudden failures of the vacuum system. Vacuum Leakage Sensing Systems VLS-07-20 Vacuum...

Open the catalog to page 3
Vacuum System Accessories - 4

Vacuum Leakage Sensing Systems VLS-07-AUX-S Auxiliary Siren/Alarm Bulletin No. 132 00 343 Revision: A • Control No. 909130 ANVER VLS-07-AUX-S Auxiliary Siren/Alarm The VLS-07-AUX-S is a peripheral device designed to be connected to the VLS-07 vacuum leakage sensor. When the VLS-07 warning is activated the VLS-07-AUX-S sounds a loud, 105db(A) siren and the flashing strobe is initiated. This add-on device is ideal for noisy environments, where the lifter is at a distance from the operator or where other personnel may be in the general area of use. This device has a self contained, easily...

Open the catalog to page 4
Vacuum System Accessories - 5

36 Parmenter Road • Hudson MA 01749 USA • 978-568-0221 • 800-654-3500 • FAX 978-568-1570 • www.anver.com • E-Mail: sales@anver.com Vacuum System Accessories Vacuum Leakage Sensing Systems ðn This spec sheet was adapted for print from our website. Additional information and photos are available at www.anver.com. 9040201 VLS-07 VLS-07-20 VLS-07-AUX-S Vacuum Leakage Sensor and Warning Device Vacuum Leakage Sensor and Warning Device, Special 20% Version Auxiliary Alarm for VLS-07 ANVER Item No. Description VLS-07-20 Leakage Sensor The VLS-07 Vacuum Leakage Sensor is also available for Lifters...

Open the catalog to page 5
Vacuum System Accessories - 6

36 Parmenter Road • Hudson MA 01749 USA • 978-568-0221 • 800-654-3500 • FAX 978-568-1570 • www.anver.com • E-Mail: sales@anver.com Vacuum Filters and Vacuum Mufflers Metal Filters with Snap-On Covers 6012401 FLTME-6 FLT-3 Plastic Filter Assemblies ANVER’S FLT-3 Series Plastic Filters are specifically designed for use with high air flow vacuum lifting systems. By comparing the vacuum level on the filter and the vacuum level on the vacuum attachment head, the operator can monitor the filter status at a glance. A reduction differential in vacuum level provides an indication of when the filter...

Open the catalog to page 6
Vacuum System Accessories - 7

36 Parmenter Road • Hudson MA 01749 USA • 978-568-0221 • 800-654-3500 • FAX 978-568-1570 • www.anver.com • E-Mail: sales@anver.com Vacuum Filters and Mufflers Metal Construction Vacuum Filters 9030201 FLTM-3/8 FLTM-1/2 FLTM-3/4 FLTM-1.25S FLTM-1.25T FLTM-1.5 FLTM-2.0 N/A PSF.5 PSF.75 N/A N/A PSF1.5 PSF2.0 1-1/2" 2" 1-1/4" (Short Style) 1-1/4" (Tall Style) 3/8" 1/2" 3/4" FLTME-1 FLTME-2 FLTME-3 FLTME-5 FLTME-6 1.97" (50) 2.52" (64) 3.86" (98) 5.00" (127) 5.91" (150) 0.93" (23.5) 1.49" (38) 2.36" (60) 2.52" (64) 3.46" (88) 2.28" (58) 2.72" (69) 2.79" (71) 4.92" (125) 8.35" (212) N/A PSF.5RE...

Open the catalog to page 7
Vacuum System Accessories - 9

Vacuum Filters and Mufflers Plastic In-Line Type 5001501 FLTP Series These are absolutely great vacuum filters for use with vacuum pumps and vacuum systems. They are 100% airtight, even after repeated element changes; you can easily see when the element needs changing; they do not corrode or rust; and the element works well even on fine dust. These filters are used to protect valves, pumps, ejectors, etc., from dust and other harmful particles. In-line filters are designed to be serviced without removing the entire unit from the line. You can simply remove the bowl by hand and clean or...

Open the catalog to page 9
Vacuum System Accessories - 10

36 Parmenter Road • Hudson MA 01749 USA • 978-568-0221 • 800-654-3500 • FAX 978-568-1570 • www.anver.com • E-Mail: sales@anver.com Vacuum Filters and Mufflers Disposable Vacuum Filters 3062301 Ø 0.2 (5) 2.39 (60.7) Ø 0.78 (19.8) In-Line Barbed Vacuum Filters Miniature Quick Change Replacement In-Line Barbed Vacuum Filters. Small, Lightweight and Available with either 10 Micron or 25 Micron Filter Elements. Simply throw them away when used and replace with a new filter. These In-Line Barbed Vacuum Filters are inexpensive and small enough to be a disposable item. • Maximum operating pressure...

Open the catalog to page 10
Vacuum System Accessories - 11

36 Parmenter Road • Hudson MA 01749 USA • 978-568-0221 • 800-654-3500 • FAX 978-568-1570 • www.anver.com • E-Mail: sales@anver.com Vacuum Filters and Mufflers Drum Vacuum Filters 6002301 10 For Vacuum Tube Lift Systems and other High-Flow Applications ANVER Drum Filters are specially designed for use with vacuum tube lift systems but are suitable for many other applications. The drums are constructed of very heavy-gauge material to withstand the high vacuum levels typical with a vacuum system. A hose cuff slips inside the fitting on the filter cover. Model FLT-30 is suitable for vacuum...

Open the catalog to page 11
Vacuum System Accessories - 12

36 Parmenter Road • Hudson MA 01749 USA • 978-568-0221 • 800-654-3500 • FAX 978-568-1570 • www.anver.com • E-Mail: sales@anver.com Vacuum Filters and Mufflers Vacuum Exhaust Mufflers 9030201 Thread Diameter Length Porous Plastic Mufflers ANVER Porous Plastic Exhaust Mufflers are available in several styles to meet your noise reduction requirements. They all feature standard NPT threads and reduce exhaust noise to within OSHA standards. ANVER Exhaust Mufflers can be used on vacuum pumps, small compressors, pneumatic valves, air motors, rotary/impact air tools, or other similar equipment....

Open the catalog to page 12
