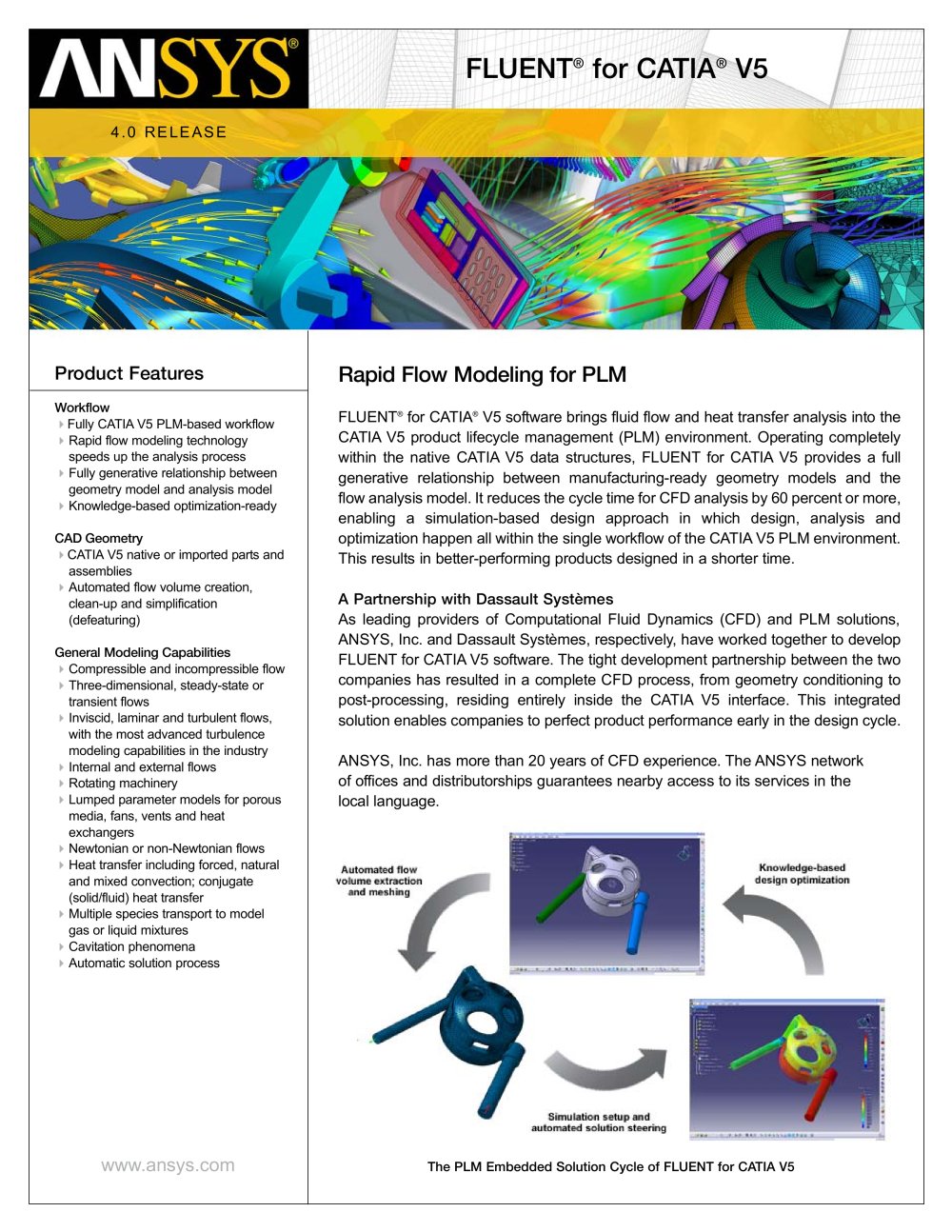

FLUENT
®
for CATIA
®
V5
4.0 RELEASE A Partnership with Dassault Systèmes
Product Features
Rapid Flow Modeling for PLM
As leading providers of Computational Fluid Dynamics (CFD) and PLM solutions,
ANSYS, Inc. and Dassault Systèmes, respectively, have worked together to develop
FLUENT for CATIA V5 software. The tight development partnership between the two
companies has resulted in a complete CFD process, from geometry conditioning to
post-processing, residing entirely inside the CATIA V5 interface. This integrated solution enables companies to perfect product performance early in the design cycle.ANSYS, Inc. has more than 20 years of CFD experience. The ANSYS network of offices and distributorships guarantees nearby access to its services in the local language.
Workflow
® ® Fully CATIA V5 PLM-based workflow
FLUENT for CATIA V5 software brings fluid flow and heat transfer analysis into theCATIA V5 product lifecycle management (PLM) environment. Operating completely
within the native CATIA V5 data structures, FLUENT for CATIA V5 provides a full generative relationship between manufacturing-ready geometry models and the flow analysis model. It reduces the cycle time for CFD analysis by 60 percent or more,
enabling a simulation-based design approach in which design, analysis and optimization happen all within the single workflow of the CATIA V5 PLM environment.
This results in better-performing products designed in a shorter time.
Rapid flow modeling technology speeds up the analysis process Fully generative relationship between geometry model and analysis model Knowledge-based optimization-ready CAD Geometry CATIA V5 native or imported parts and assemblies Automated flow volume creation, clean-up and simplification (defeaturing) General Modeling Capabilities Compressible and incompressible flow Three-dimensional, steady-state or transient flows Inviscid, laminar and turbulent flows, with the most advanced turbulence modeling capabilities in the industry Internal and external flows Rotating machinery Lumped parameter models for porous media, fans, vents and heat exchangers Newtonian or non-Newtonian flows Heat transfer including forced, natural and mixed convection; conjugate (solid/fluid) heat transfer Multiple species transport to model gas or liquid mixtures Cavitation phenomena Automatic solution process
www.ansys.com
The PLM Embedded Solution Cycle of FLUENT for CATIA V5
