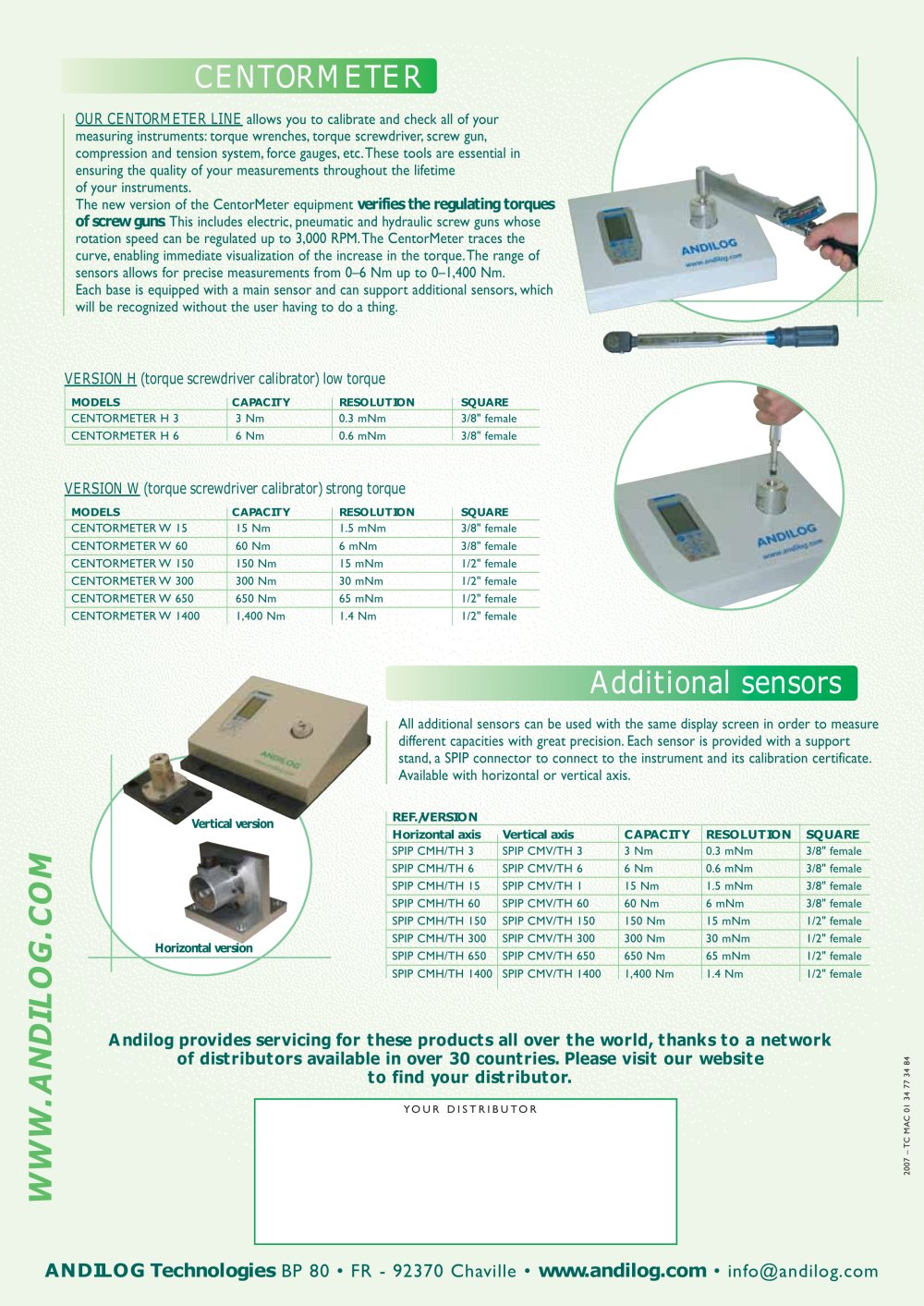

CENTORMETER

verifies the regulating torquesof screw industrial guns . This includes electric, pneumatic and hydraulic screw guns whoserotation speed can be regulated up to 3,000 RPM. The CentorMeter traces the curve, enabling immediate visualization of the increase in the torque. The range of sensors allows for precise measurements from 0–6 Nm up to 0–1,400 Nm. Each base is equipped with a main sensor and can support additional sensors, which will be recognized without the user having to do a thing. OUR CENTORMETER LINE allows you to calibrate and check all of yourmeasuring instruments: industrial torque wrenches, torque screwdriver, screw gun, compression and tension system, force gauges, etc. These tools are essential in ensuring the quality of your measurements throughout the lifetime of your instruments. The new version of the CentorMeter equipment VERSION H (torque screwdriver calibrator) low torque

MODELSCAPACITYRESOLUTION SQUARE CENTORMETER H 33 Nm0.3 mNm3/8" female CENTORMETER H 66 Nm0.6 mNm3/8" female

VERSION W (torque screwdriver calibrator) strong torque

MODELSCAPACITYRESOLUTION SQUARE CENTORMETER W 1515 Nm1.5 mNm3/8" female CENTORMETER W 6060 Nm6 mNm3/8" female CENTORMETER W 150150 Nm15 mNm1/2" female CENTORMETER W 300300 Nm30 mNm1/2" female CENTORMETER W 650650 Nm65 mNm1/2" femaleCENTORMETER W 14001,400 Nm1.4 Nm1/2" female

Additional sensors

All additional sensors can be used with the same display screen in order to measuredifferent capacities with great precision. Each sensor is provided with a support stand, a SPIP connector to connect to the instrument and its calibration certificate. Available with horizontal or vertical axis.

Vertical version Horizontal version

REF./VERSION Horizontal axisVertical axisCAPACITYRESOLUTION SQUARE SPIP CMH/TH 3SPIP CMV/TH 33 Nm0.3 mNm3/8" female SPIP CMH/TH 6SPIP CMV/TH 66 Nm0.6 mNm3/8" female SPIP CMH/TH 15SPIP CMV/TH 115 Nm1.5 mNm3/8" female SPIP CMH/TH 60SPIP CMV/TH 6060 Nm6 mNm3/8" female SPIP CMH/TH 150SPIP CMV/TH 150150 Nm15 mNm1/2" female SPIP CMH/TH 300SPIP CMV/TH 300 300 Nm30 mNm1/2" female SPIP CMH/TH 650SPIP CMV/TH 650650 Nm65 mNm1/2" femaleSPIP CMH/TH 1400SPIP CMV/TH 1400 1,400 Nm1.4 Nm1/2" female

Andilog provides servicing for these products all over the world, thanks to a network of distributors available in over 30 countries. Please visit our website to find your distributor.
