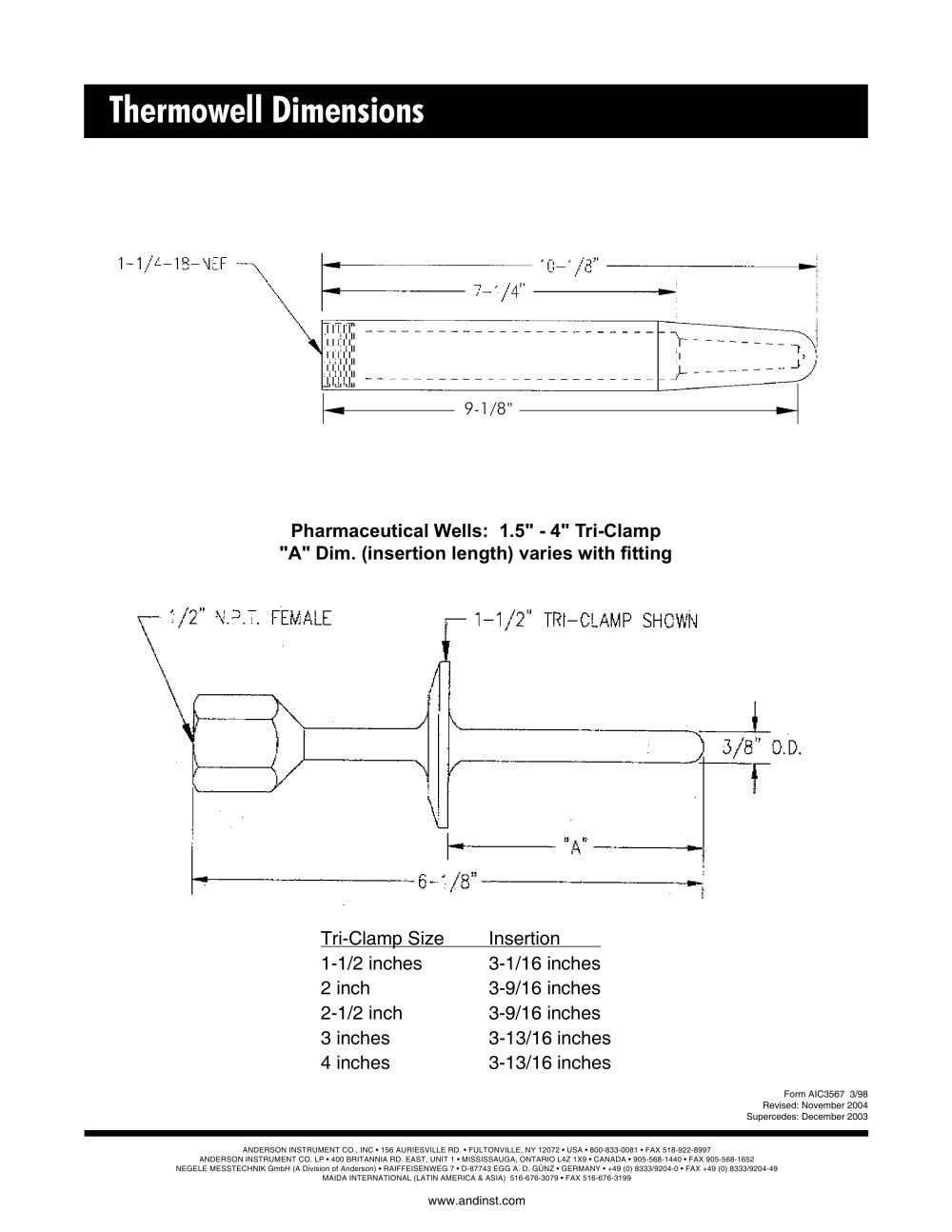

Thermowell Dimensions

Pharmaceutical Wells: 1.5" - 4" Tri-Clamp"A" Dim. (insertion length) varies with fitting
9-1/8 " Tri-Clamp Size Insertion 1-1/2 inches 3-1/16 inches 2 inch 3-9/16 inches 2-1/2 inch 3-9/16 inches 3 inches 3-13/16 inches 4 inches 3-13/16 inches
Form AIC3567 3/98Revised: November 2004Supercedes: December 2003 ANDERSON INSTRUMENT CO., INC • 156 AURIESVILLE RD. • FULTONVILLE, NY 12072 • USA • 800-833-0081 • FAX 518-922-8997ANDERSON INSTRUMENT CO. LP • 400 BRITANNIA RD. EAST, UNIT 1 • MISSISSAUGA, ONTARIO L4Z 1X9 • CANADA • 905-568-1440 • FAX 905-568-1652NEGELE MESSTECHNIK GmbH (A Division of Anderson) • RAIFFEISENWEG 7 • D-87743 EGG A. D. GÜNZ • GERMANY • +49 (0) 8333/9204-0 • FAX +49 (0) 8333/9204-49MAIDA INTERNATIONAL (LATIN AMERICA & ASIA) 516-676-3079 • FAX 516-676-3199 www.andinst.com
