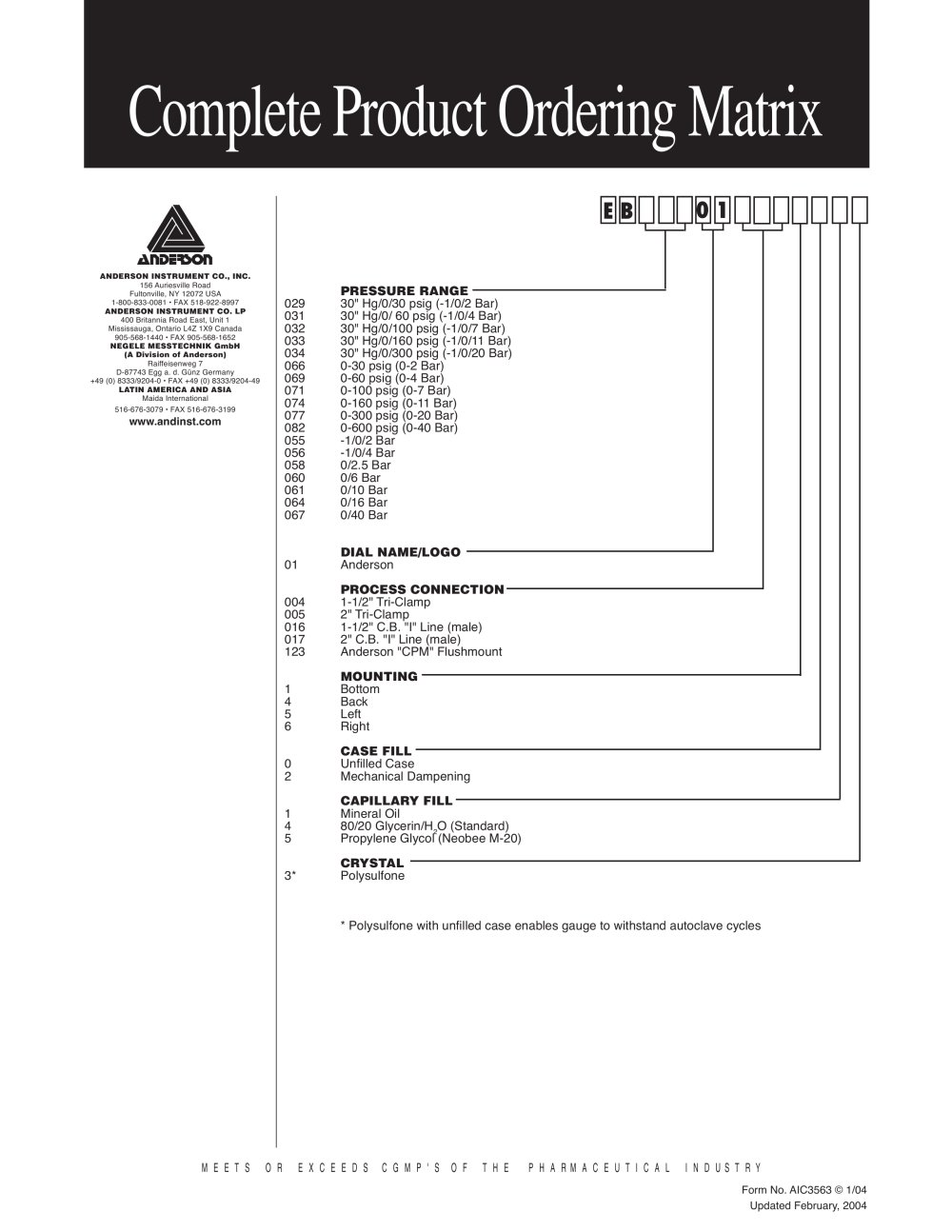

Complete Product Ordering Matrix

DIAL NAME/LOGO 01 Anderson MOUNTING CASE FILL 1 Bottom 4 Back 5 Left 6 Right 0 Un lled Case 2 Mechanical Dampening PROCESS CONNECTION 004 1-1/2" Tri-Clamp 005 2" Tri-Clamp 016 1-1/2" C.B. "I" Line (male) 017 2" C.B. "I" Line (male) 123 Anderson "CPM" Flushmount CAPILLARY FILL 1 Mineral Oil 4 80/20 Glycerin/H

E B 0 1

ANDERSON INSTRUMENT CO., INC. 156 Auriesville RoadFultonville, NY 12072 USA1-800-833-0081 • FAX 518-922-8997 PRESSURE RANGE
ANDERSON INSTRUMENT CO. LP 029 30" Hg/0/30 psig (-1/0/2 Bar) 031 30" Hg/0/ 60 psig (-1/0/4 Bar) 032 30" Hg/0/100 psig (-1/0/7 Bar) 033 30" Hg/0/160 psig (-1/0/11 Bar) 034 30" Hg/0/300 psig (-1/0/20 Bar) 066 0-30 psig (0-2 Bar) 069 0-60 psig (0-4 Bar) 071 0-100 psig (0-7 Bar) 074 0-160 psig (0-11 Bar) 077 0-300 psig (0-20 Bar) 082 0-600 psig (0-40 Bar) 055 -1/0/2 Bar 056 -1/0/4 Bar 058 0/2.5 Bar 060 0/6 Bar 061 0/10 Bar 064 0/16 Bar 067 0/40 Bar
400 Britannia Road East, Unit 1 Mississauga, Ontario L4Z 1X9 Canada905-568-1440 • FAX 905-568-1652 NEGELE MESSTECHNIK GmbH(A Division of Anderson) Raiffeisenweg 7D-87743 Egg a. d. Günz Germany+49 (0) 8333/9204-0 • FAX +49 (0) 8333/9204-49 LATIN AMERICA AND ASIA Maida International 516-676-3079 • FAX 516-676-3199 www.andinst.com CRYSTAL 3* Polysulfone * Polysulfone with un lled case enables gauge to withstand autoclave cycles
2 O (Standard)5 Propylene Glycol (Neobee M-20) M E E T S O R E X C E E D S C G M P ' S O F T H E P H A R M A C E U T I C A L I N D U S T R Y
Form No. AIC3563 © 1/04Updated February, 2004
