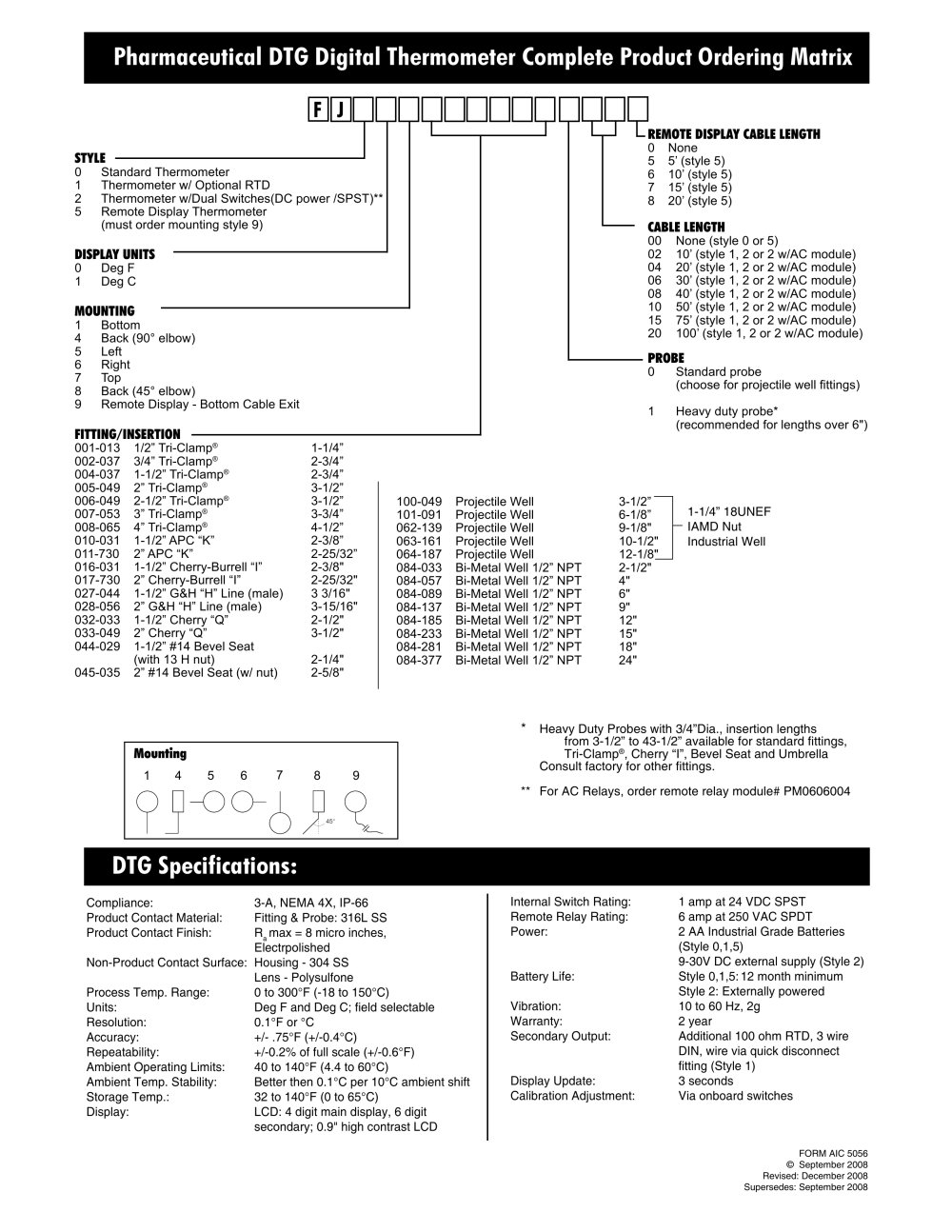

Pharmaceutical DTG Digital Thermometer Complete Product Ordering Matrix

MtEMOTE DISPLAY CABLE LENGTH

0 None

5 5' (style 5)

6 10' (style 5)

7 15' (style 5)

8 20' (style 5)

STYLE -

0 Standard Thermometer

1 Thermometer w/ Optional RTD

2 Thermometer w/Dual Switches(DC power /SPST)** 5 Remote Display Thermometer

(must order mounting style 9)

CABLE LENGTH

00 None (style 0 or 5)

02 10' (style 1, 2 or 2 w/AC module)

04 20' (style 1, 2 or 2 w/AC module)

06 30' (style 1, 2 or 2 w/AC module)

08 40' (style 1, 2 or 2 w/AC module)

10 50' (style 1, 2 or 2 w/AC module)

15 75' (style 1, 2 or 2 w/AC module)

20 100' (style 1, 2 or 2 w/AC module)

DISPLAY UNITS

0 Deg F

1 Deg C

MOUNTING -

1 Bottom

4 Back (90° elbow)

5 Left

6 Right

7 Top

8 Back (45° elbow)

9 Remote Display - Bottom Cable Exit

PROBE

0 Standard probe

(choose for projectile well fittings)

1 Heavy duty probe* (recommended for lengths over 6")

FITTING/INSERTION


001-013	1/2" Tri-Clamp®	1-1/4"
002-037	3/4" Tri-Clamp®	2-3/4"
004-037	1-1/2" Tri-Clamp®	2-3/4"
005-049	2" Tri-Clamp^®	3-1/2"
006-049	2-1/2" Tri-Clamp^®	3-1/2"	100-049	Projectile Well	3-1/2"
007-053	3" Tri-Clamp^®	3-3/4"	101-091	Projectile Well	6-1/8"
008-065	4" Tri-Clamp^®	4-1/2"	062-139	Projectile Well	9-1/8"	—
010-031	1-1/2" APC "K"	2-3/8"	063-161	Projectile Well	10-1/2"
011-730	2" APC "K"	2-25/32"	064-187	Projectile Well	12-1/8"_
016-031	1-1/2" Cherry-Burrell "I"	2-3/8"	084-033	Bi-Metal Well 1/2" NPT	2-1/2"
017-730	2" Cherry-Burrell "I"	2-25/32"	084-057	Bi-Metal Well 1/2" NPT	4"
027-044	1-1/2" G&H "H" Line (male)	3 3/16"	084-089	Bi-Metal Well 1/2" NPT	6"
028-056	2" G&H "H" Line (male)	3-15/16"	084-137	Bi-Metal Well 1/2" NPT	9"
032-033	1-1/2" Cherry "Q"	2-1/2"	084-185	Bi-Metal Well 1/2" NPT	12"
033-049	2" Cherry "Q"	3-1/2"	084-233	Bi-Metal Well 1/2" NPT	15"
044-029	1-1/2" #14 Bevel Seat		084-281	Bi-Metal Well 1/2" NPT	18"
	(with 13 H nut)	2-1/4"	084-377	Bi-Metal Well 1/2" NPT	24"
045-035	2" #14 Bevel Seat (w/ nut)	2-5/8"

1-1/4" 18UNEF

Industrial Well

Heavy Duty Probes with 3/4"Dia., insertion lengths from 3-1/2" to 43-1/2" available for standard fittings, Tri-Clamp®, Cherry "I", Bevel Seat and Umbrella

Consult factory for other fittings.

For AC Relays, order remote relay module# PM0606004

DTG Specifications:

Internal Switch Rating: Remote Relay Rating: Power:

1 amp at 24 VDC SPST 6 amp at 250 VAC SPDT

2 AA Industrial Grade Batteries (Style 0,1,5)

9-30V DC external supply (Style 2) Style 0,1,5: 12 month minimum Style 2: Externally powered 10 to 60 Hz, 2g

2 year

Additional 100 ohm RTD, 3 wire DIN, wire via quick disconnect fitting (Style 1)

3 seconds

Via onboard switches

Compliance:

Product Contact Material: Product Contact Finish:

Non-Product Contact Surface:

Process Temp. Range: Units:

Resolution:

Accuracy:

Repeatability:

Ambient Operating Limits:

Ambient Temp. Stability:

Storage Temp.:

Display:

3-A, NEMA 4X, IP-66

Fitting & Probe: 316L SS

R max = 8 micro inches,

Electrpolished

Housing - 304 SS

Lens - Polysulfone

0 to 300°F (-18 to 150°C)

Deg F and Deg C; field selectable

0.1°F or °C

+/- .75°F (+/-0.4°C)

+/-0.2% of full scale (+/-0.6°F)

40 to 140°F (4.4 to 60°C)

Better then 0.1°C per 10°C ambient shift

32 to 140°F (0 to 65°C)

LCD: 4 digit main display, 6 digit

secondary; 0.9" high contrast LCD

Battery Life:

Vibration: Warranty: Secondary Output:

Display Update: Calibration Adjustment:
