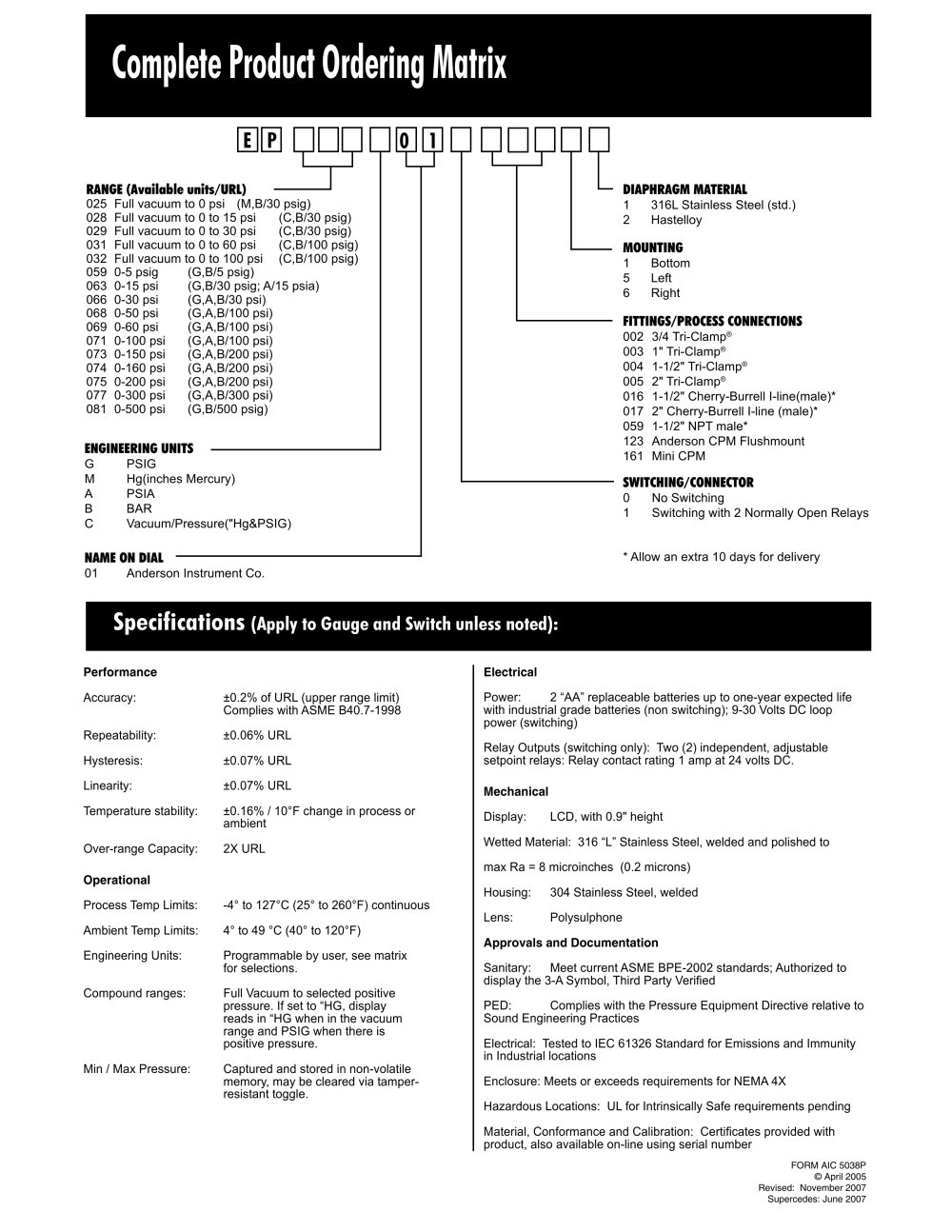

Complete Product Ordering Matrix

EP 10

RANGE (Available units/URL) DIAPHRAGM MATERIAL

025 Full vacuum to 0 psi (M,B/30 psig)028 Full vacuum to 0 to 15 psi (C,B/30 psig) 029 Full vacuum to 0 to 30 psi (C,B/30 psig) 031 Full vacuum to 0 to 60 psi (C,B/100 psig) 032 Full vacuum to 0 to 100 psi (C,B/100 psig) 059 0-5 psig (G,B/5 psig) 063 0-15 psi (G,B/30 psig; A/15 psia) 066 0-30 psi (G,A,B/30 psi) 068 0-50 psi (G,A,B/100 psi) 069 0-60 psi (G,A,B/100 psi) 071 0-100 psi (G,A,B/100 psi) 073 0-150 psi (G,A,B/200 psi) 074 0-160 psi (G,A,B/200 psi) 075 0-200 psi (G,A,B/200 psi) 077 0-300 psi (G,A,B/300 psi) 081 0-500 psi (G,B/500 psig) 1 316L Stainless Steel (std.)2 Hastelloy

MOUNTING

1 Bottom 5 Left 6 Right

FITTINGS/PROCESS CONNECTIONS

002 3/4 Tri-Clamp
® 003 1" Tri-Clamp
® 004 1-1/2" Tri-Clamp
® 005 2" Tri-Clamp
® 016 1-1/2" Cherry-Burrell I-line(male)* 017 2" Cherry-Burrell I-line (male)* 059 1-1/2" NPT male* 123 Anderson CPM Flushmount 161 Mini CPM

ENGINEERING UNITS

G PSIGM Hg(inches Mercury) A PSIA B BAR C Vacuum/Pressure("Hg&PSIG)

SWITCHING/CONNECTOR

0 No Switching 1 Switching with 2 Normally Open Relays

NAME ON DIAL

* Allow an extra 10 days for delivery 01 Anderson Instrument Co.

Specifications

(Apply to Gauge and Switch unless noted):

Sanitary: Meet current ASME BPE-2002 standards; Authorized to display the 3-A Symbol, Third Party VerifiedPED: Complies with the Pressure Equipment Directive relative to Sound Engineering PracticesElectrical: Tested to IEC 61326 Standard for Emissions and Immunity in Industrial locationsEnclosure: Meets or exceeds requirements for NEMA 4X Hazardous Locations: UL for Intrinsically Safe requirements pending Material, Conformance and Calibration: Certificates provided with product, also available on-line using serial number Performance Electrical Approvals and Documentation Accuracy: ±0.2% of URL (upper range limit) Complies with ASME B40.7-1998Repeatability: ±0.06% URL Hysteresis: ±0.07% URL Linearity: ±0.07% URL Temperature stability: ±0.16% / 10°F change in process or ambientOver-range Capacity: 2X URL Power: 2 “AA” replaceable batteries up to one-year expected life with industrial grade batteries (non switching); 9-30 Volts DC loop power (switching)Relay Outputs (switching only): Two (2) independent, adjustable setpoint relays: Relay contact rating 1 amp at 24 volts DC. Operational Process Temp Limits: -4° to 127°C (25° to 260°F) continuous Ambient Temp Limits: 4° to 49 °C (40° to 120°F) Engineering Units: Programmable by user, see matrix for selections.Compound ranges: Full Vacuum to selected positive pressure. If set to “HG, display reads in “HG when in the vacuum range and PSIG when there is positive pressure. Min / Max Pressure: Captured and stored in non-volatile memory, may be cleared via tamper- resistant toggle. Mechanical Display: LCD, with 0.9" height Wetted Material: 316 “L” Stainless Steel, welded and polished to max Ra = 8 microinches (0.2 microns) Housing: 304 Stainless Steel, welded Lens: Polysulphone
FORM AIC 5038P © April 2005Revised: November 2007Supercedes: June 2007
