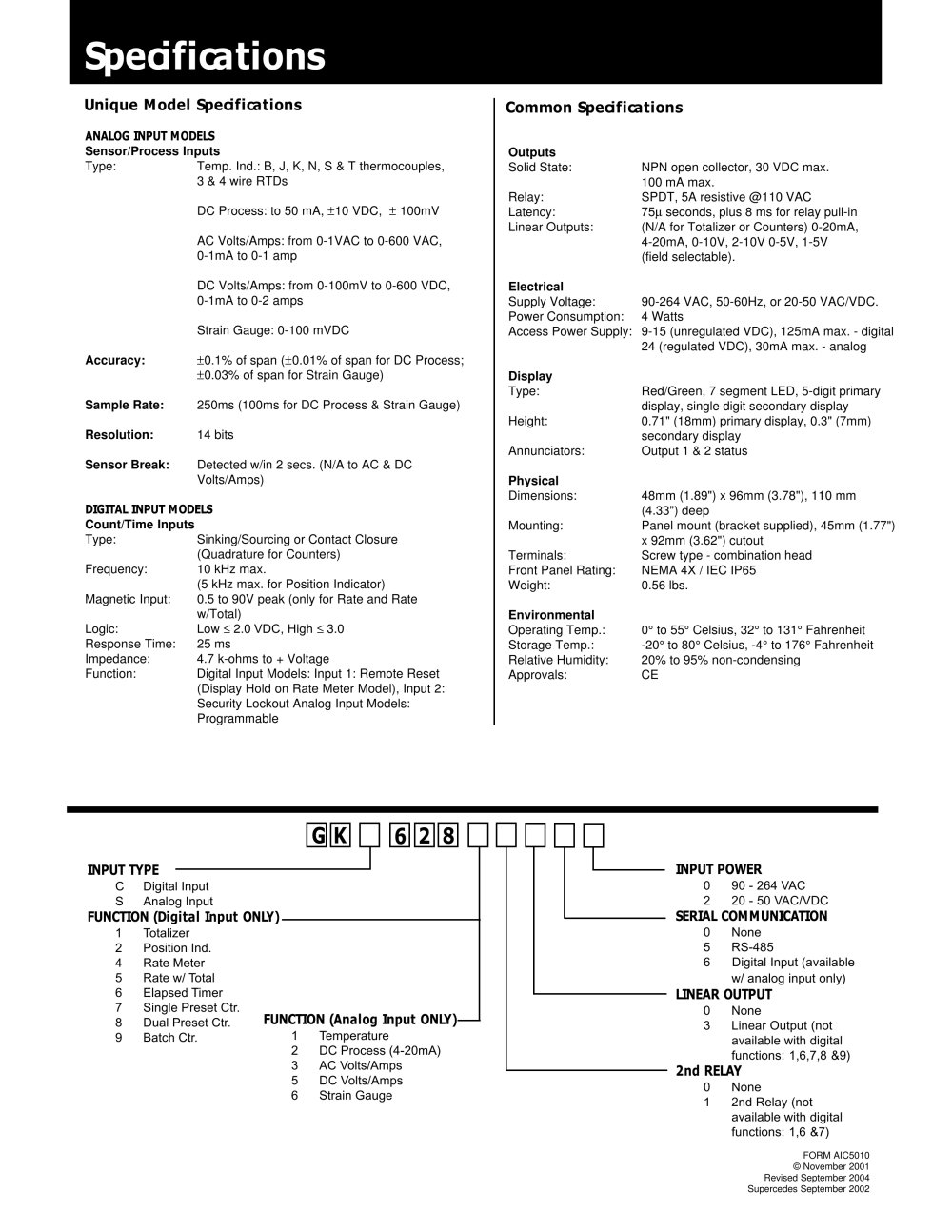

Specifications

Unique Model Specifications Common Specifications

ANALOG INPUT MODELS Type:Temp. Ind.: B, J, K, N, S & T thermocouples,3 & 4 wire RTDsDC Process: to 50 mA, Solid State:NPN open collector, 30 VDC max.100 mA max.Relay:SPDT, 5A resistive @110 VAC Latency:75 Sensor/Process Inputs Outputs µ seconds, plus 8 ms for relay pull-inLinear Outputs:(N/A for Totalizer or Counters) 0-20mA,4-20mA, 0-10V, 2-10V 0-5V, 1-5V (field selectable). ± 10 VDC, ± 100mVAC Volts/Amps: from 0-1VAC to 0-600 VAC,0-1mA to 0-1 ampDC Volts/Amps: from 0-100mV to 0-600 VDC,0-1mA to 0-2 ampsStrain Gauge: 0-100 mVDC Electrical Supply Voltage:90-264 VAC, 50-60Hz, or 20-50 VAC/VDC. Power Consumption:4 Watts Access Power Supply:9-15 (unregulated VDC), 125mA max. - digital24 (regulated VDC), 30mA max. - analog Display Type:Red/Green, 7 segment LED, 5-digit primarydisplay, single digit secondary displayHeight:0.71" (18mm) primary display, 0.3" (7mm)secondary displayAnnunciators:Output 1 & 2 status Accuracy: ± 0.1% of span ( ± 0.01% of span for DC Process; Physical ± 0.03% of span for Strain Gauge) Dimensions:48mm (1.89") x 96mm (3.78"), 110 mm(4.33") deepMounting:Panel mount (bracket supplied), 45mm (1.77")x 92mm (3.62") cutoutTerminals:Screw type - combination head Front Panel Rating:NEMA 4X / IEC IP65 Weight:0.56 lbs. Sample Rate: 250ms (100ms for DC Process & Strain Gauge) Resolution: 14 bits Environmental Operating Temp.:0 ° to 55 ° Celsius, 32 ° to 131 ° FahrenheitStorage Temp.:-20 Sensor Break: Detected w/in 2 secs. (N/A to AC & DCVolts/Amps) ° to 80 ° Celsius, -4 ° to 176 ° FahrenheitRelative Humidity:20% to 95% non-condensing Approvals:CE DIGITAL INPUT MODELS Type:Sinking/Sourcing or Contact Closure(Quadrature for Counters)Frequency:10 kHz max.(5 kHz max. for Position Indicator)Magnetic Input:0.5 to 90V peak (only for Rate and Ratew/Total)Logic:Low Count/Time Inputs ≤ 2.0 VDC, High ≤ 3.0Response Time:25 ms Impedance:4.7 k-ohms to + Voltage Function:Digital Input Models: Input 1: Remote Reset(Display Hold on Rate Meter Model), Input 2: Security Lockout Analog Input Models: Programmable

GK 628

INPUT TYPE INPUT POWER

CDigital Input SAnalog Input 090 - 264 VAC 220 - 50 VAC/VDC

FUNCTION (Digital Input ONLY) SERIAL COMMUNICATION

1Totalizer 2Position Ind. 4Rate Meter 5Rate w/ Total 6Elapsed Timer 7Single Preset Ctr. 8Dual Preset Ctr. 9Batch Ctr. 0None 5RS-485 6Digital Input (availablew/ analog input only)

LINEAR OUTPUT FUNCTION (Analog Input ONLY)

0None3Linear Output (notavailable with digital functions: 1,6,7,8 &9) 1Temperature 2DC Process (4-20mA) 3AC Volts/Amps 5DC Volts/Amps 6Strain Gauge

2nd RELAY

0None 12nd Relay (notavailable with digital functions: 1,6 &7)
FORM AIC5010© November 2001Revised September 2004Supercedes September 2002
