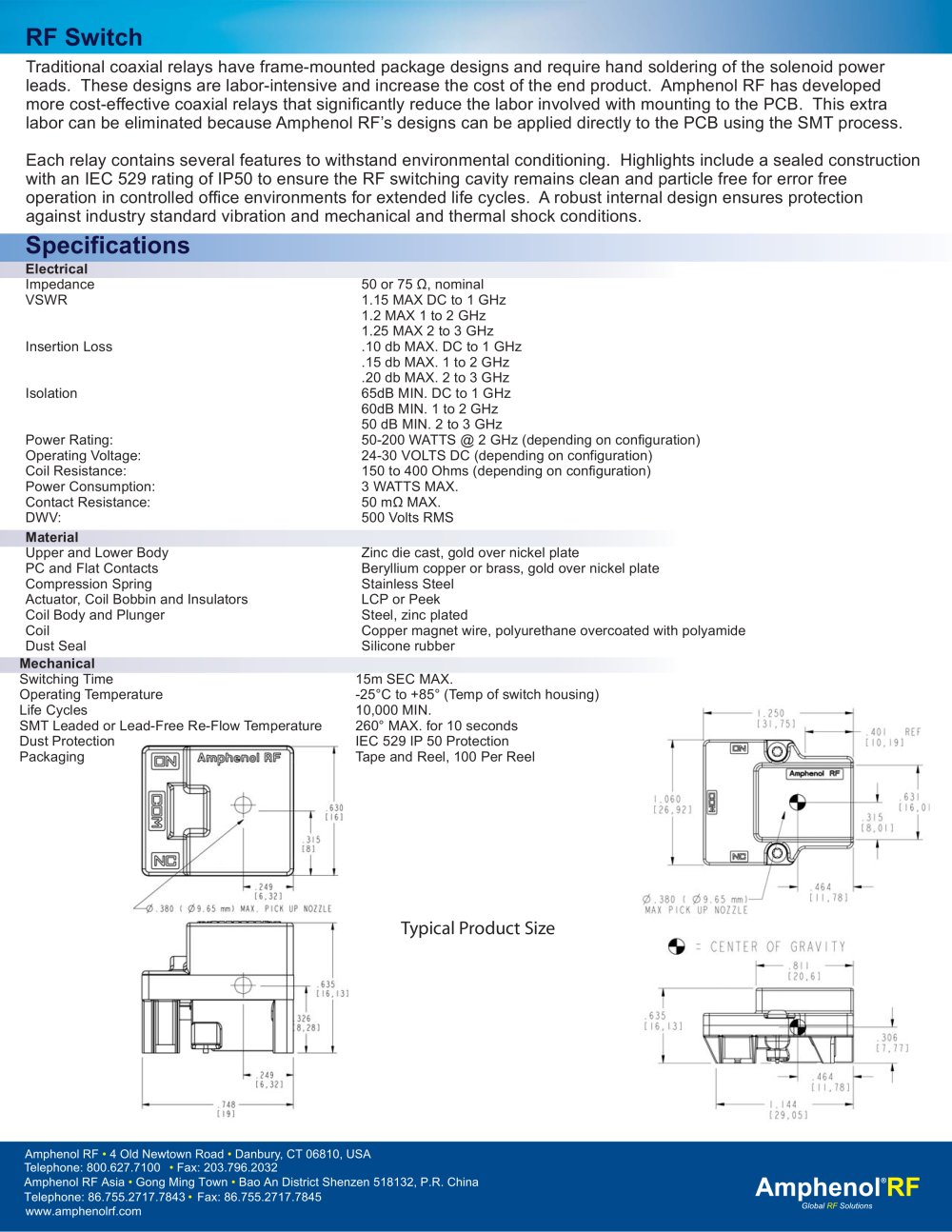

RF Switch

Traditional coaxial relays have frame-mounted package designs and require hand soldering of the solenoid power leads. These designs are labor-intensive and increase the cost of the end product. Amphenol RF has developed more cost-effective coaxial relays that significantly reduce the labor involved with mounting to the PCB. This extra labor can be eliminated because Amphenol RF’s designs can be applied directly to the PCB using the SMT process.Each relay contains several features to withstand environmental conditioning. Highlights include a sealed construction with an IEC 529 rating of IP50 to ensure the RF switching cavity remains clean and particle free for error free operation in controlled office environments for extended life cycles. A robust internal design ensures protection against industry standard vibration and mechanical and thermal shock conditions.

Material Upper and Lower Body Zinc die cast, gold over nickel plate PC and Flat Contacts Beryllium copper or brass, gold over nickel plate Compression Spring Stainless Steel Actuator, Coil Bobbin and Insulators LCP or PeekCoil Body and Plunger Steel, zinc platedCoil Copper magnet wire, polyurethane overcoated with polyamide Dust Seal Silicone rubber

Specifications

Electrical Impedance 50 or 75 , nominal VSWR 1.15 MAX DC to 1 GHz 1.2 MAX 1 to 2 GHz 1.25 MAX 2 to 3 GHz Insertion Loss .10 db MAX. DC to 1 GHz .15 db MAX. 1 to 2 GHz .20 db MAX. 2 to 3 GHz Isolation 65dB MIN. DC to 1 GHz 60dB MIN. 1 to 2 GHz 50 dB MIN. 2 to 3 GHz Power Rating: 50-200 WATTS @ 2 GHz (depending on configuration) Operating Voltage: 24-30 VOLTS DC (depending on configuration)Coil Resistance: 150 to 400 Ohms (depending on configuration)Power Consumption: 3 WATTS MAX. Contact Resistance: 50 m MAX.DWV: 500 Volts RMS Mechanical Switching Time 15m SEC MAX.Operating Temperature -25°C to +85° (Temp of switch housing)Life Cycles 10,000 MIN. SMT Leaded or Lead-Free Re-Flow Temperature 260° MAX. for 10 seconds Dust Protection IEC 529 IP 50 Protection Packaging Tape and Reel, 100 Per Reel

Typical Product Size
