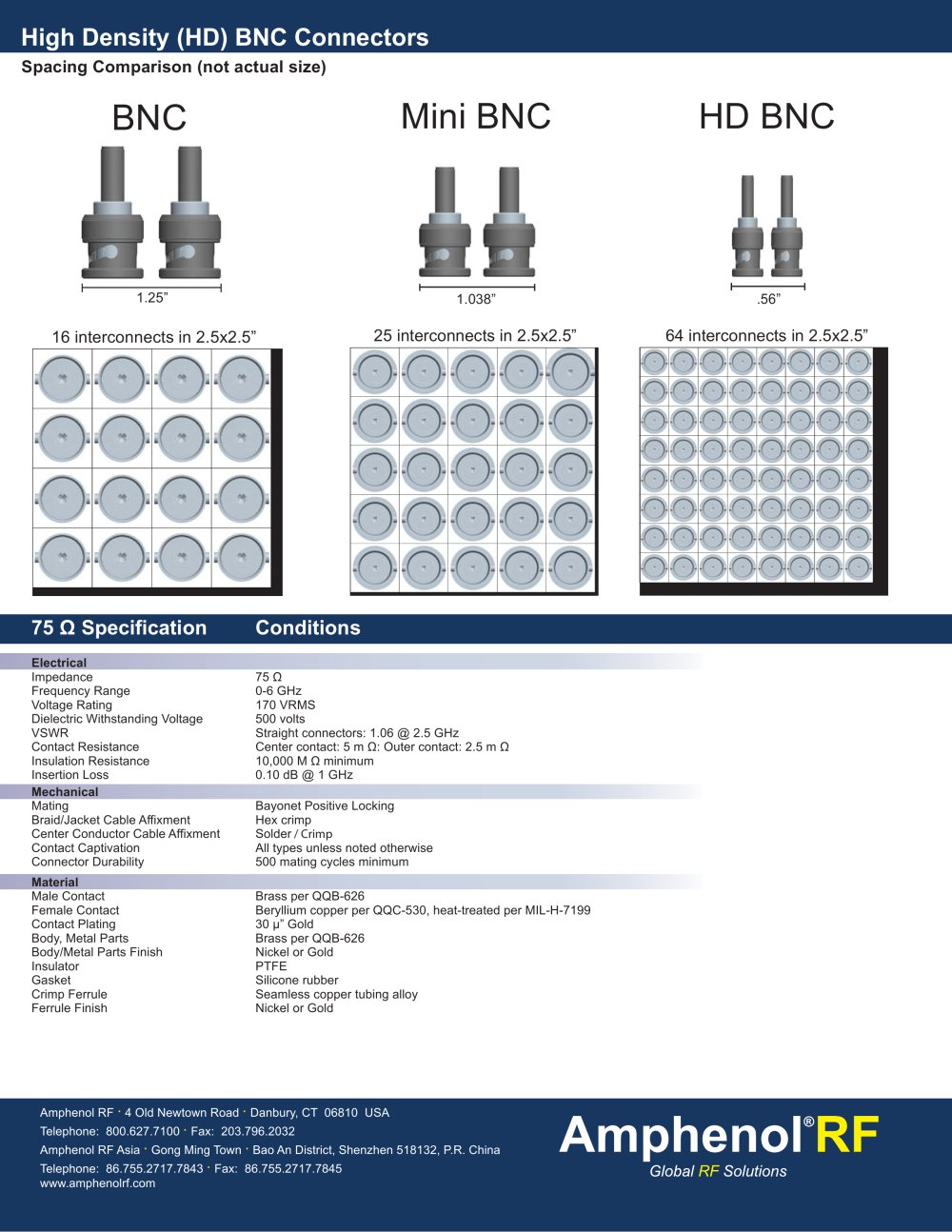

High Density (HD) BNC Connectors
Spacing Comparison (not actual size)
BNCMini BNC HD BNC
1.25” 1.038”
.56”
16 interconnects in 2.5x2.5” 25 interconnects in 2.5x2.5” 64 interconnects in 2.5x2.5”
/ Crimp Mechanical Contact Captivation All types unless noted otherwise Connector Durability 500 mating cycles minimum Mating Bayonet Positive Locking Braid/Jacket Cable Affixment Hex crimp Center Conductor Cable Affixment Solder Material75 Specification Conditions
Male Contact Brass per QQB-626 Female Contact Beryllium copper per QQC-530, heat-treated per MIL-H-7199 Contact Plating 30 µ” Gold Body, Metal Parts Brass per QQB-626 Body/Metal Parts Finish Nickel or Gold Insulator PTFE Gasket Silicone rubber Crimp Ferrule Seamless copper tubing alloy Ferrule Finish Electrical Impedance 75 Frequency Range 0-6 GHz Voltage Rating 170 VRMS Dielectric Withstanding Voltage 500 volts VSWR Straight connectors: 1.06 @ 2.5 GHz Contact Resistance Center contact: 5 m : Outer contact: 2.5 m Insulation Resistance 10,000 M minimum Insertion Loss 0.10 dB @ 1 GHz Nickel or GoldAmphenol RF
