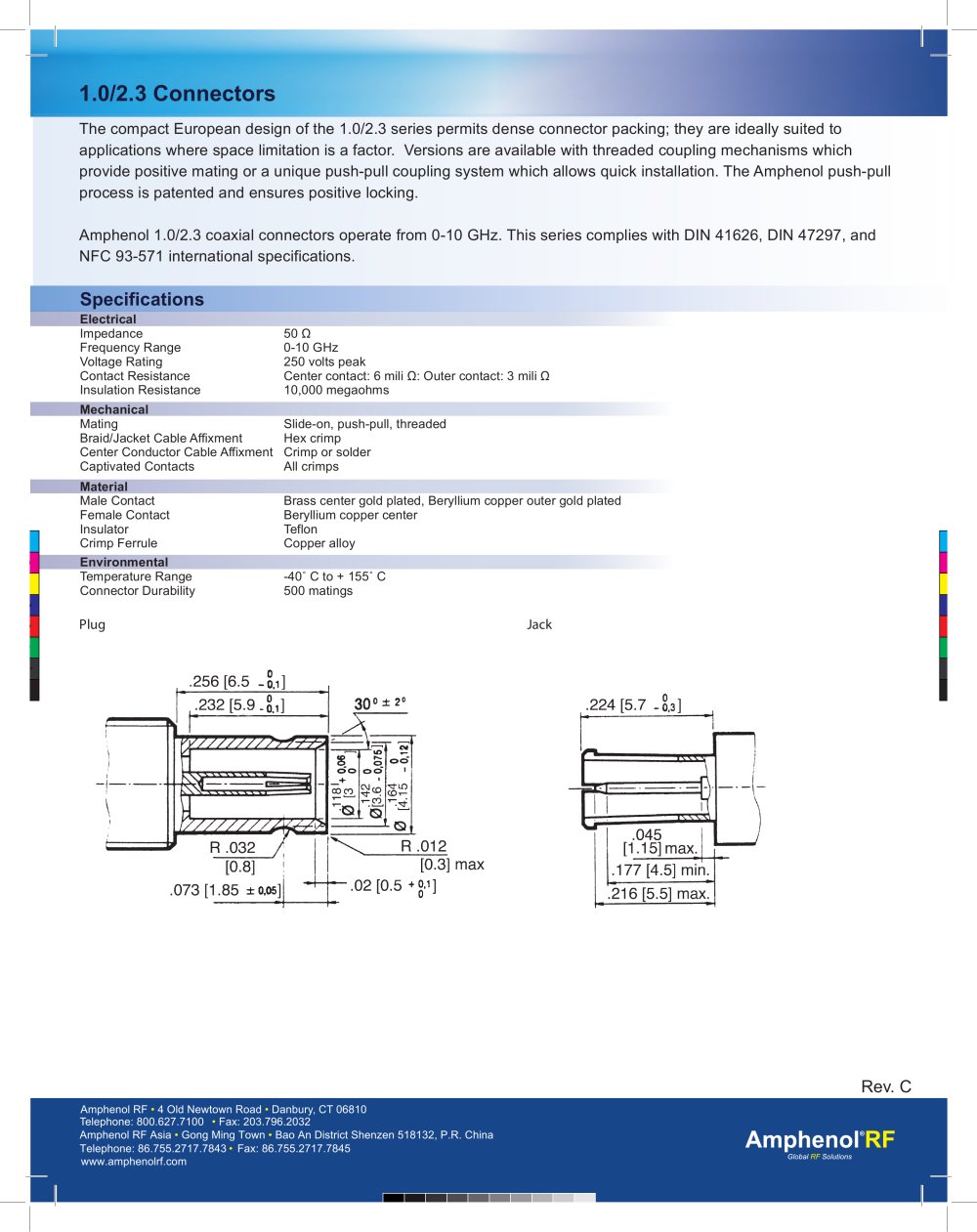

1.0/2.3 Connectors

The compact European design of the 1.0/2.3 series permits dense connector packing; they are ideally suited to applications where space limitation is a factor. Versions are available with threaded coupling mechanisms which provide positive mating or a unique push-pull coupling system which allows quick installation. The Amphenol push-pull process is patented and ensures positive locking. Amphenol 1.0/2.3 coaxial connectors operate from 0-10 GHz. This series complies with DIN 41626, DIN 47297, and NFC 93-571 international specifications.

Environmental

Specifications

Mechanical Material Male Contact Brass center gold plated, Beryllium copper outer gold plated Female Contact Beryllium copper center Insulator Teflon Crimp Ferrule Copper alloy Temperature Range -40˚ C to + 155˚ C Connector Durability 500 matings Electrical Mating Slide-on, push-pull, threaded Braid/Jacket Cable Affixment Hex crimp Center Conductor Cable Affixment Crimp or solder Captivated Contacts All crimps Impedance 50 Ω Frequency Range 0-10 GHz Voltage Rating 250 volts peak Contact Resistance Center contact: 6 mili Ω: Outer contact: 3 mili Ω Insulation Resistance 10,000 megaohms
M M Y

Plug Jack

Y Y

Rev. C
