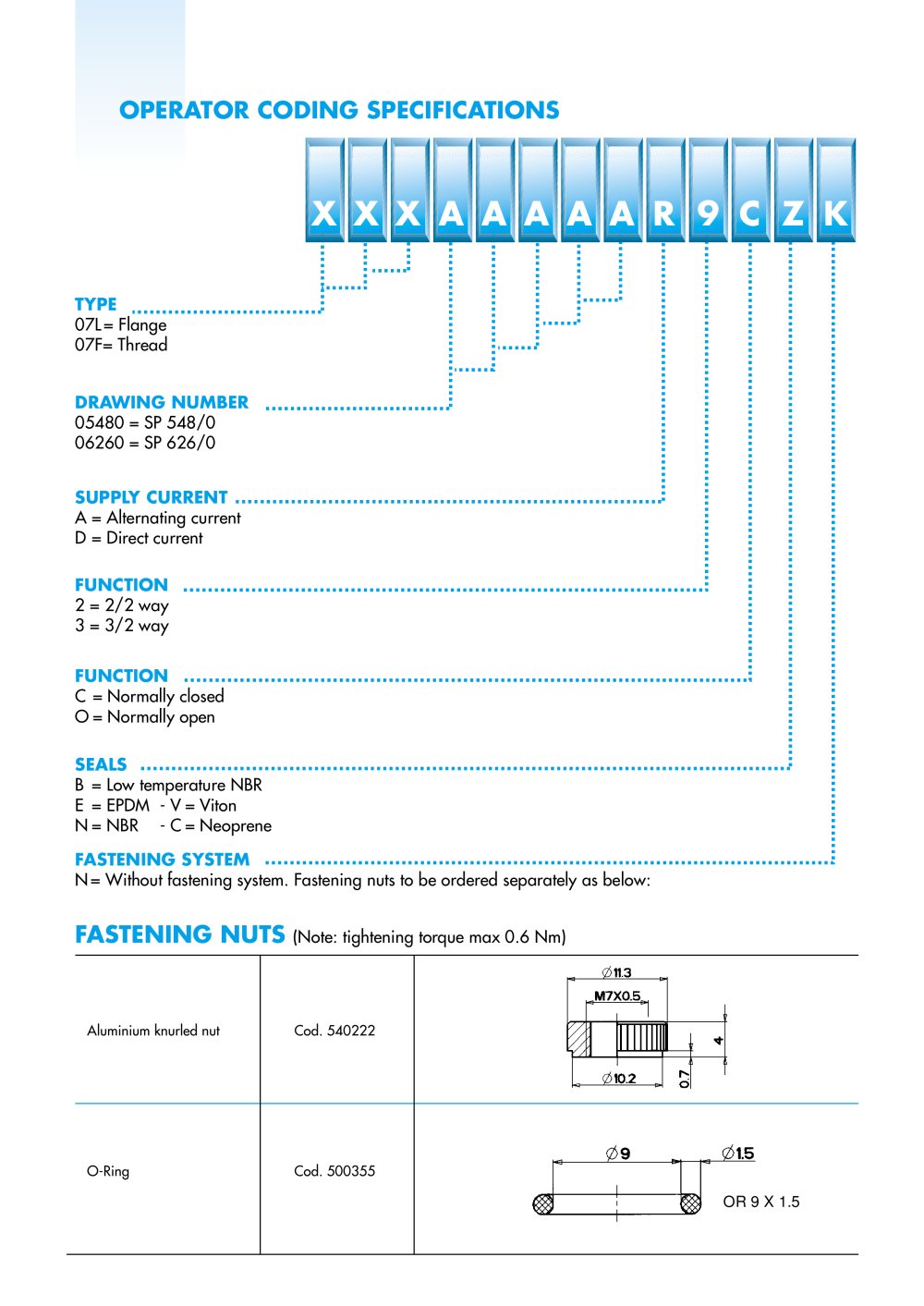

OPERATOR CODING SPECIFICATIONS FASTENING NUTS

TYPE 07L= Flange 07F= Thread DRAWING NUMBER 05480 = SP 548/0 06260 = SP626/0

EVI9 S - 14110 XXA9ZKRCXAAAA

SUPPLYCURRENT A= Alternating current D= Direct current FUNCTION 2 = 2/2 way 3 = 3/2 way FUNCTION C= Normally closed O= Normally open SEALS B= Low temperature NBR E= EPDM - V= Viton N= NBR - C= Neoprene FASTENING SYSTEM N= Without fastening system. Fastening nuts to be ordered separately as below: (Note: tightening torque max 0.6 Nm)
Aluminium knurled nutCod. 540222 O-RingCod.500355 OR9 X 1.5
