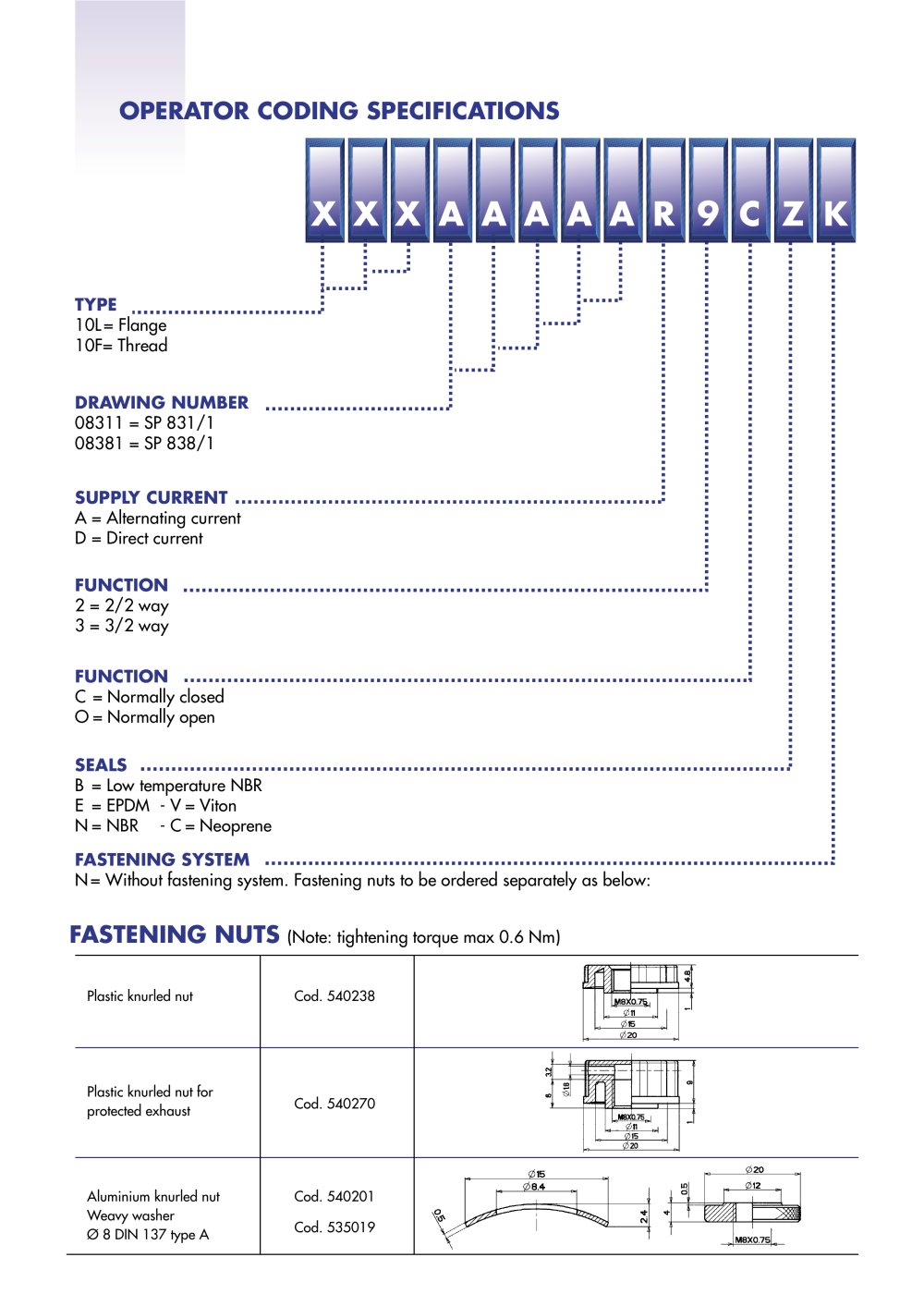

OPERATOR CODING SPECIFICATIONS FASTENING NUTS

TYPE 10L= Flange 10F= Thread DRAWING NUMBER 08311 = SP 831/1 08381 = SP838/1

EVI7 S10 - 14110 XXA9ZKRCXAAAA

SUPPLYCURRENT A= Alternating current D= Direct current FUNCTION 2 = 2/2 way 3 = 3/2 way FUNCTION C= Normally closed O= Normally open SEALS B= Low temperature NBR E= EPDM - V= Viton N= NBR - C= Neoprene FASTENING SYSTEM N= Without fastening system. Fastening nuts to be ordered separately as below: (Note: tightening torque max 0.6 Nm)
Plastic knurled nutCod. 540238Plastic knurled nut for protected exhaustCod.540270Aluminium knurled nutCod.540201Weavy washer Ø 8DIN 137 type ACod.535019
