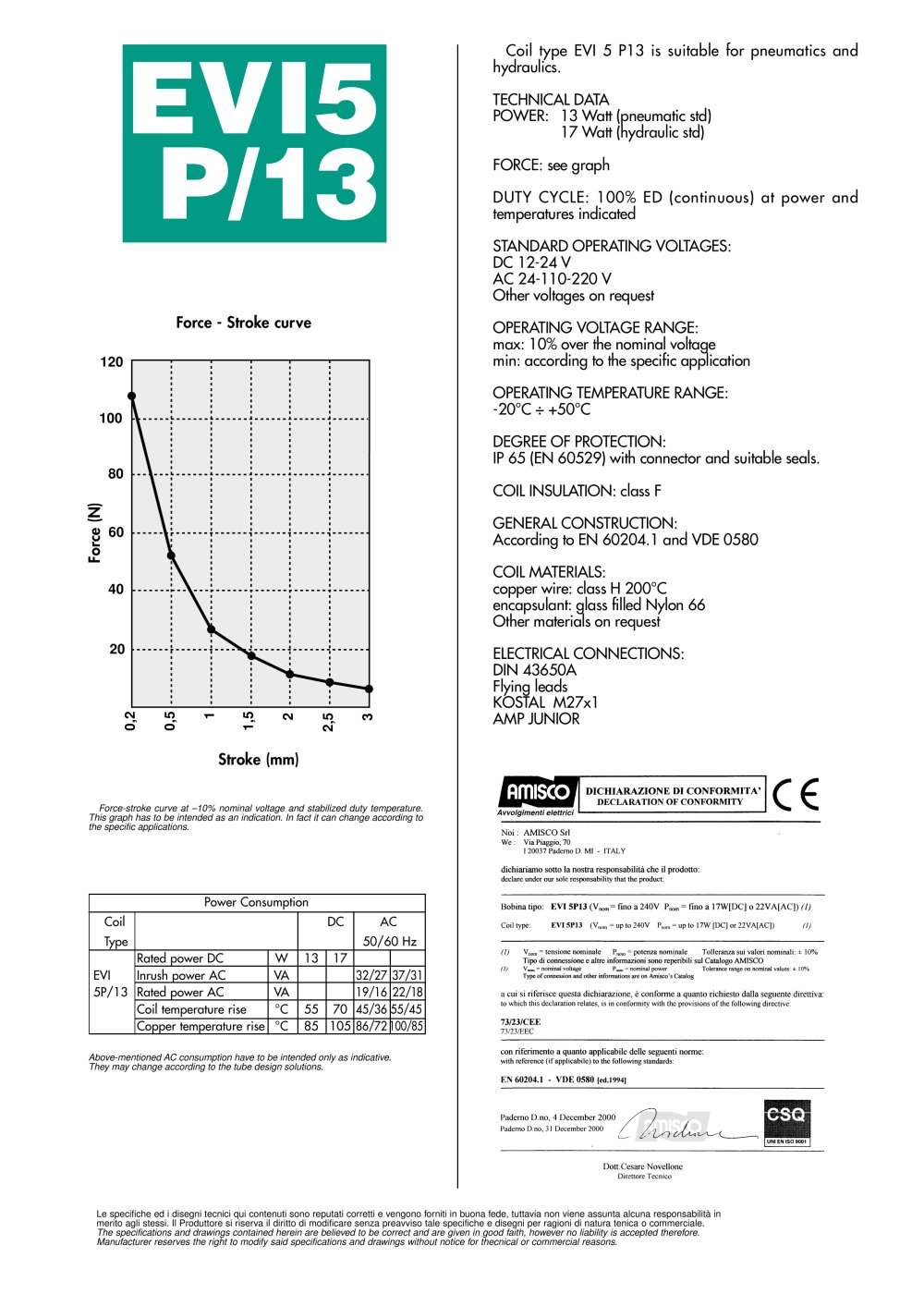

Coil type EVI 5 P13 is suitable for pneumatics andhydraulics.TECHNICAL DATAPOWER: 13 Watt (pneumatic std)17 Watt (hydraulic std)FORCE: see graph DUTY CYCLE: 100% ED (continuous) at power andtemperatures indicatedSTANDARD OPERATING VOLTAGES:DC 12-24 V AC 24-110-220 V Other voltages on requestOPERATINGVOLTAGE RANGE:max: 10% over the nominal voltage min: according to the specific applicationOPERATING TEMPERATURE RANGE:-20°C ÷+50°CDEGREEOFPROTECTION:IP 65 (EN 60529) with connector and suitable seals.COIL INSULATION: class F GENERAL CONSTRUCTION: According to EN 60204.1 and VDE 0580COIL MATERIALS: copper wire: class H 200°C encapsulant: glass filled Nylon 66 Other materials on requestELECTRICAL CONNECTIONS:DIN 43650A Flying leads KOSTALM27x1 AMP JUNIOR

EVI5 - 14110 EVI5P/13

Force - Stroke curve

120100806040

Force (N)

20

0,20,511,522,53

Stroke (mm)

Power Consumption CoilDCACType50/60 HzRated power DCW1317EVIInrush power ACVA 32/2737/31 5P/13Rated power ACVA 19/1622/18 Coil temperature rise°C5570 45/3655/45 Copper temperature rise°C85105 86/72 100/85
Above-mentioned AC consumption have to be intended only as indicative.They may change according to the tube design solutions. Le specifiche ed i disegni tecnici qui contenuti sono reputati corretti e vengono forniti in buona fede, tuttavia non viene assunta alcuna responsabilità in merito agli stessi.Il Produttore si riserva il diritto di modificare senza preavviso tale specifiche e disegni per ragioni di natura tenica o commerciale. The specifications and drawings contained herein are believed to be correct and are given in good faith, however no liability is accepted therefore.Manufacturer reserves the right to modify said specifications and drawings without notice for thecnical or commercial reasons. Force-stroke curve at –10% nominal voltage and stabilized duty temperature.This graph has to be intended as an indication.In fact it can change according to the specific applications.
