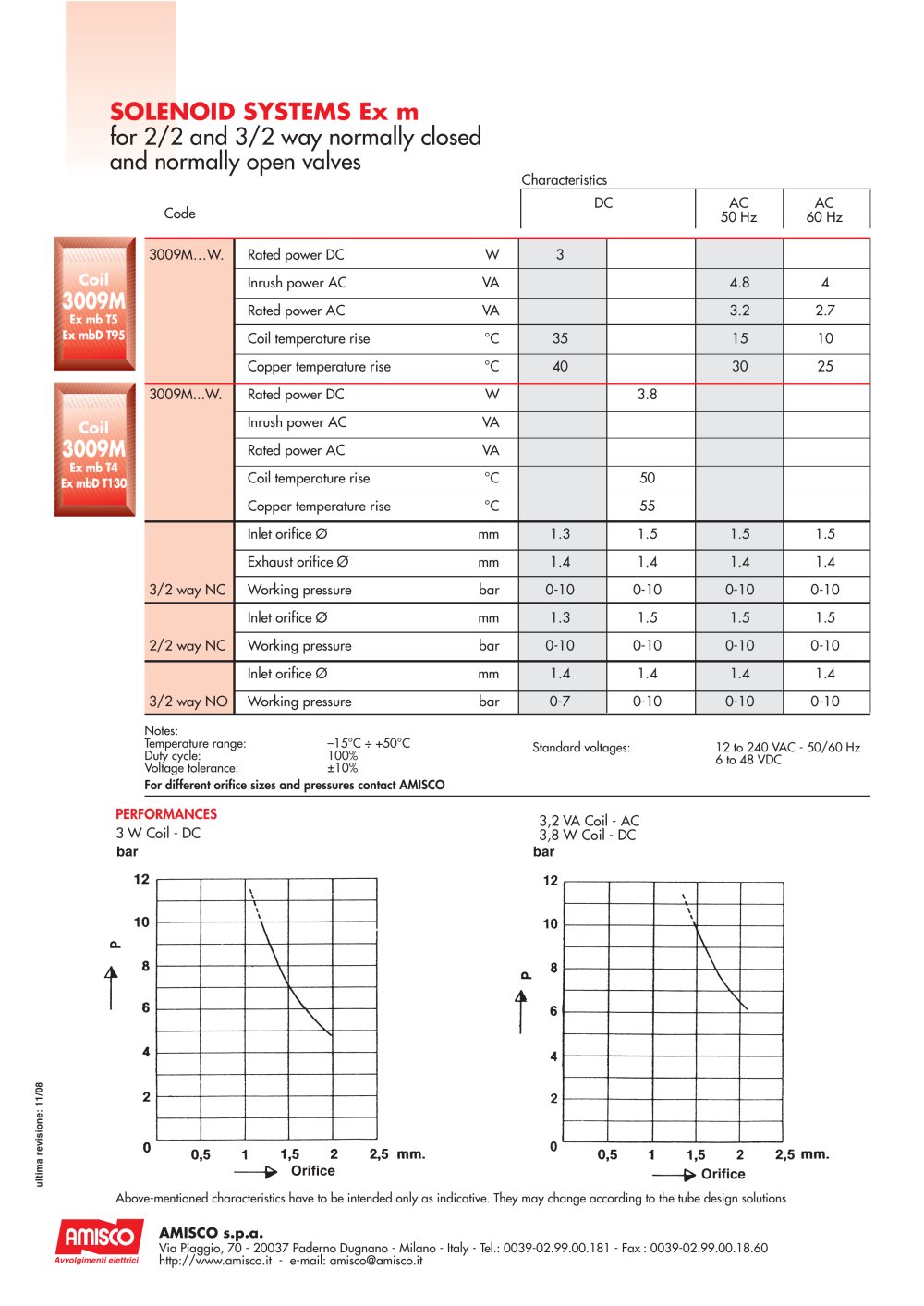

SOLENOID SYSTEMS Ex m for 2/2 and 3/2 way normally closed and normally open valves

CodeCharacteristicsDCACAC50Hz60Hz 3009M…W.Rated power DCW3Inrush power ACVA4.84 Rated power ACVA3.22.7 Coil temperature rise°C351510 Copper temperature rise°C4030253009M...W.Rated power DCW3.8Inrush power ACVA Rated power ACVA Coil temperature rise°C50 Copper temperature rise°C55 Inlet orifice Ømm1.31.51.51.5 Exhaust orifice Ømm1.41.41.41.43/2way NCWorking pressure bar0-100-100-100-10Inlet orifice Ømm1.31.51.51.52/2way NCWorking pressurebar0-100-100-100-10Inlet orifice Ømm1.41.41.41.43/2way NOWorking pressurebar0-70-100-100-10

Coil

3009M

Ex mb T5Ex mbD T95

Coil

3009M

Ex mb T4 Ex mbD T130 Notes: Temperature range:–15°C ÷+50°C Duty cycle:100% Voltage tolerance:±10%Standard voltages:12 to 240VAC - 50/60Hz6 to 48VDC For different orifice sizes and pressures contact AMISCO PERFORMANCES 3 W Coil - DC3,2 VACoil - AC3,8 W Coil - DC bar bar Orifice
ultima revisione:11/08 Orifice
Above-mentioned characteristics have to be intended only as indicative. They may change according to the tube design solutions AMISCO s.p.a.
