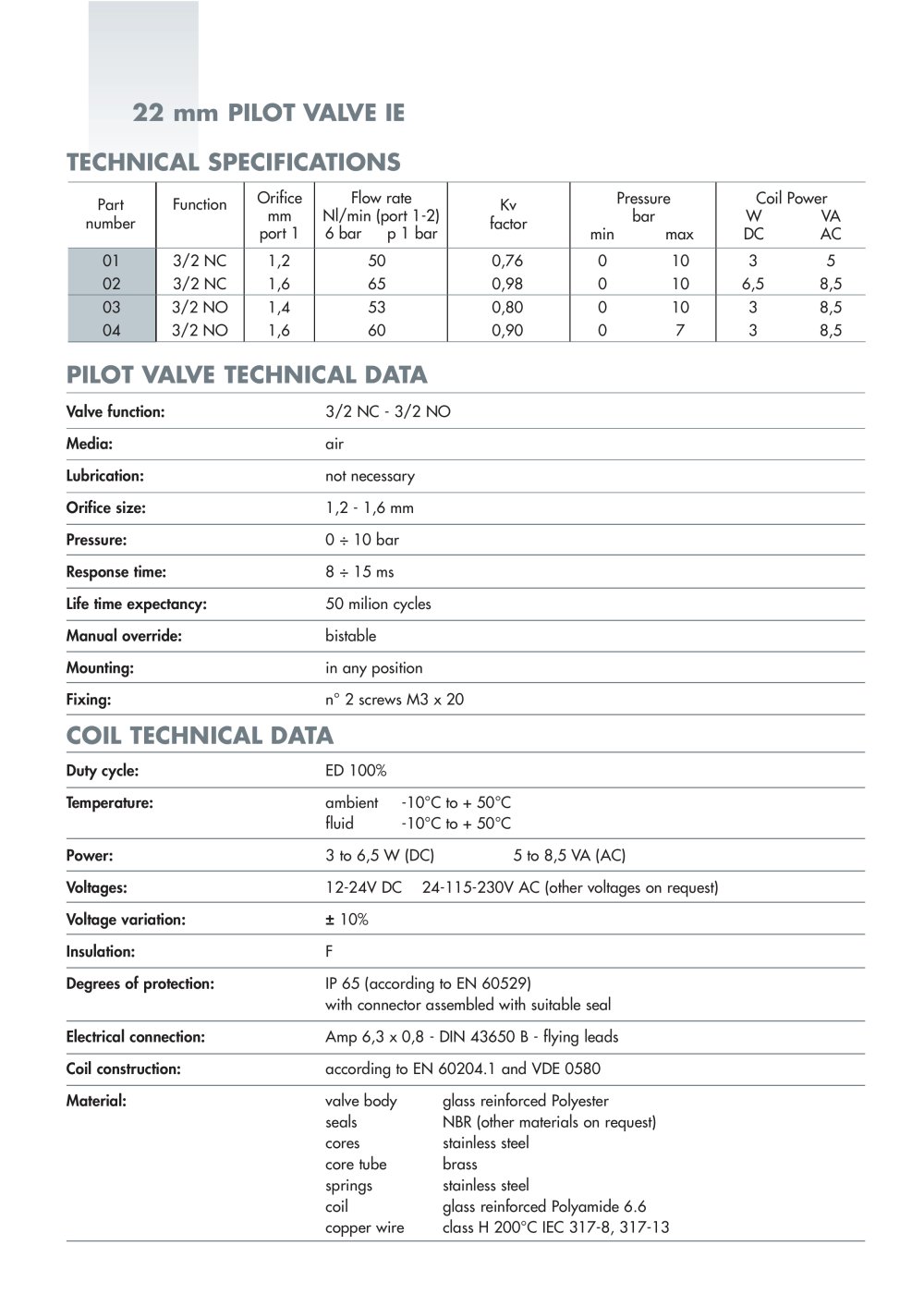

22 mm PILOTVALVEIE TECHNICAL SPECIFICATIONS

PartnumberFunction

Orificemmport 1Flow rateNl/min (port 1-2)6 barp 1 bar

Kvfactor

PressurebarminmaxCoil PowerWVADCAC

013/2 NC1,2500,7601035023/2 NC1,6650,980106,58,5 033/2 NO1,4530,8001038,5 043/2 NO1,6600,900738,5

PILOTVALVE TECHNICALDATA

Valve function: 3/2 NC - 3/2 NO Media: air Lubrication: not necessary Orifice size: 1,2 - 1,6 mm Pressure: 0 ÷10 bar Response time: 8 ÷15 ms Life time expectancy: 50 milion cycles Manual override: bistable Mounting: in any position Fixing: n°2 screws M3 x 20

COIL TECHNICALDATA

Duty cycle: ED 100% Temperature: ambient-10°C to + 50°Cfluid-10°C to + 50°C Power: 3 to 6,5 W (DC)5 to 8,5 VA (AC) Voltages: 12-24V DC 24-115-230V AC (other voltages on request) Voltage variation:± 10% Insulation: F Degrees of protection: IP 65 (according to EN 60529) with connector assembled with suitable seal Electrical connection: Amp 6,3 x 0,8 - DIN 43650 B - flying leads Coil construction: according to EN 60204.1 and VDE 0580 Material: valve body glass reinforced PolyestersealsNBR (other materials on request) coresstainless steel core tubebrass springsstainless steel coil glass reinforced Polyamide 6.6 copper wireclass H 200°C IEC 317-8, 317-13
