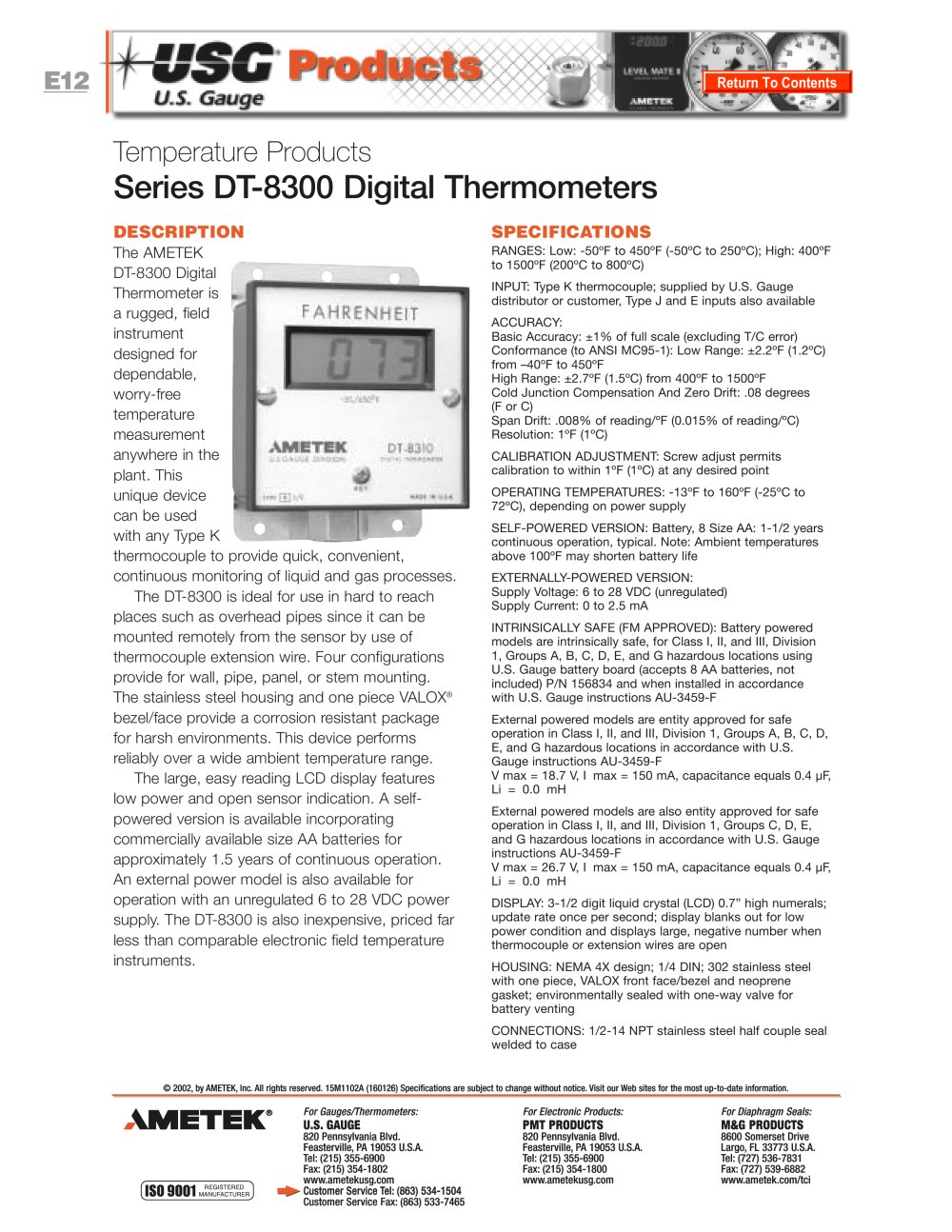

Series DT-8300 Digital Thermometers - AMETEK U.S. GAUGE - #1

Temperature Products

The AMETEK DT-8300 Digital Thermometer is a rugged, field instrument designed for dependable, worry-free temperature measurement anywhere in the plant. This unique device can be used with any Type K thermocouple to provide quick, convenient, continuous monitoring of liquid and gas processes.

The DT-8300 is ideal for use in hard to reach places such as overhead pipes since it can be mounted remotely from the sensor by use of thermocouple extension wire. Four configurations provide for wall, pipe, panel, or stem mounting. The stainless steel housing and one piece VALOX^® bezel/face provide a corrosion resistant package for harsh environments. This device performs reliably over a wide ambient temperature range.

The large, easy reading LCD display features low power and open sensor indication. A self-powered version is available incorporating commercially available size AA batteries for approximately 1.5 years of continuous operation. An external power model is also available for operation with an unregulated 6 to 28 VDC power supply. The DT-8300 is also inexpensive, priced far less than comparable electronic field temperature instruments.

RANGES: Low: -50°F to 450°F (-50°C to 250°C); High: 400°F to 1500°F (200°C to 800°C)

INPUT: Type K thermocouple; supplied by U.S. Gauge distributor or customer, Type J and E inputs also available

ACCURACY:

Basic Accuracy: ±1% of full scale (excluding T/C error) Conformance (to ANSI MC95-1): Low Range: ±2.2°F (1.2°C) from -40°F to 450°F

High Range: ±2.7°F (1.5°C) from 400°F to 1500°F

Cold Junction Compensation And Zero Drift: .08 degrees

(F or C)

Span Drift: .008% of reading/°F (0.015% of reading/°C)

Resolution: 1°F (1°C)

CALIBRATION ADJUSTMENT: Screw adjust permits calibration to within 1°F (1°C) at any desired point

OPERATING TEMPERATURES: -13°F to 160°F (-25°C to 72°C), depending on power supply

SELF-POWERED VERSION: Battery, 8 Size AA: 1-1/2 years continuous operation, typical. Note: Ambient temperatures above 100°F may shorten battery life

EXTERNALLY-POWERED VERSION: Supply Voltage: 6 to 28 VDC (unregulated) Supply Current: 0 to 2.5 mA

INTRINSICALLY SAFE (FM APPROVED): Battery powered models are intrinsically safe, for Class I, II, and III, Division 1, Groups A, B, C, D, E, and G hazardous locations using U.S. Gauge battery board (accepts 8 AA batteries, not included) P/N 156834 and when installed in accordance with U.S. Gauge instructions AU-3459-F

External powered models are entity approved for safe operation in Class I, II, and III, Division 1, Groups A, B, C, D, E, and G hazardous locations in accordance with U.S. Gauge instructions AU-3459-F

V max = 18.7 V, I max = 150 mA, capacitance equals 0.4 uF, Li = 0.0 mH

External powered models are also entity approved for safe operation in Class I, II, and III, Division 1, Groups C, D, E, and G hazardous locations in accordance with U.S. Gauge instructions AU-3459-F

V max = 26.7 V, I max = 150 mA, capacitance equals 0.4 uF,

Li = 0.0 mH

DISPLAY: 3-1/2 digit liquid crystal (LCD) 0.7" high numerals; update rate once per second; display blanks out for low power condition and displays large, negative number when thermocouple or extension wires are open

HOUSING: NEMA 4X design; 1/4 DIN; 302 stainless steel with one piece, VALOX front face/bezel and neoprene gasket; environmentally sealed with one-way valve for battery venting

CONNECTIONS: 1/2-14 NPT stainless steel half couple seal welded to case
