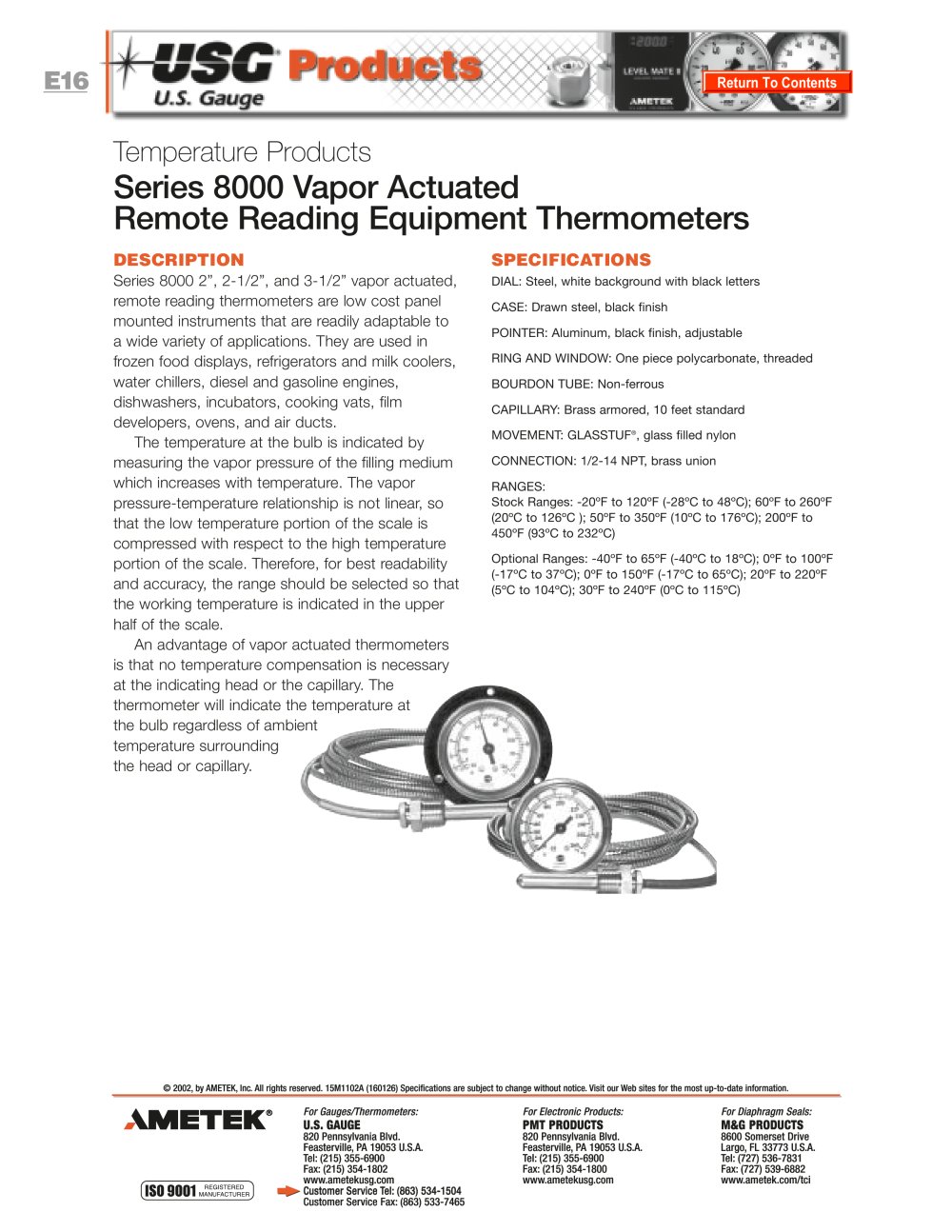

E16
U.S. Gauge
Temperature Products
Series 8000 Vapor Actuated
Remote Reading Equipment Thermometers
SPECIFICATIONS
DIAL: Steel, white background with black letters
CASE: Drawn steel, black finish
POINTER: Aluminum, black finish, adjustable
RING AND WINDOW: One piece polycarbonate, threaded
BOURDON TUBE: Non-ferrous
CAPILLARY: Brass armored, 10 feet standard
MOVEMENT: GLASSTUF®, glass filled nylon
CONNECTION: 1/2-14 NPT, brass union
RANGES:
Stock Ranges: -20°F to 120°F (-28°C to 48°C); 60°F to 260°F (20°C to 126°C ); 50°F to 350°F (10°C to 176°C); 200°F to 450°F (93°C to 232°C)
Optional Ranges: -40°F to 65°F (-40°C to 18°C); 0°F to 100°F
(-17°C to 37°C); 0°F to 150°F (-17°C to 65°C); 20°F to 220°F (5°C to 104°C); 30°F to 240°F (0°C to 115°C)
description
Series 8000 2", 2-1/2", and 3-1/2" vapor actuated, remote reading thermometers are low cost panel mounted instruments that are readily adaptable to a wide variety of applications. They are used in frozen food displays, refrigerators and milk coolers, industrial water chillers, diesel and gasoline engines, dishwashers, incubators, cooking vats, film developers, ovens, and industrial air ducts.
The temperature at the industrial bulb is indicated by measuring the vapor pressure of the filling medium which increases with temperature. The vapor pressure-temperature relationship is not linear, so that the low temperature portion of the scale is compressed with respect to the high temperature portion of the scale. Therefore, for best readability and accuracy, the range should be selected so that the working temperature is indicated in the upper half of the scale.
An advantage of vapor actuated thermometers is that no temperature compensation is necessary at the indicating head or the capillary. The industrial thermometer will indicate the temperature at the bulb regardless of ambient temperature surrounding the head or capillary.
© 2002, by AMETEK, Inc. All rights reserved. 15M1102A (160126) Specifications are subject to change without notice. Visit our Web sites for the most up-to-date information.
For Gauges/Thermometers: U.S. GAUGE
820 Pennsylvania Blvd. Feasterville, PA 19053 U.S.A. Tel: (215) 355-6900 Fax: (215) 354-1802 www.ametekusg.com - Customer Service Tel: (863) 534-1504 Customer Service Fax: (863) 533-7465
For Electronic Products: PMT PRODUCTS
820 Pennsylvania Blvd. Feasterville, PA 19053 U.S.A. Tel: (215) 355-6900 Fax: (215) 354-1800 www.ametekusg.com
For Diaphragm seals: M&G PRODUCTS
8600 Somerset Drive Largo, FL 33773 U.S.A. Tel: (727) 536-7831 Fax: (727) 539-6882 www.ametek.com/tci
VMETEK
ISO 9001
