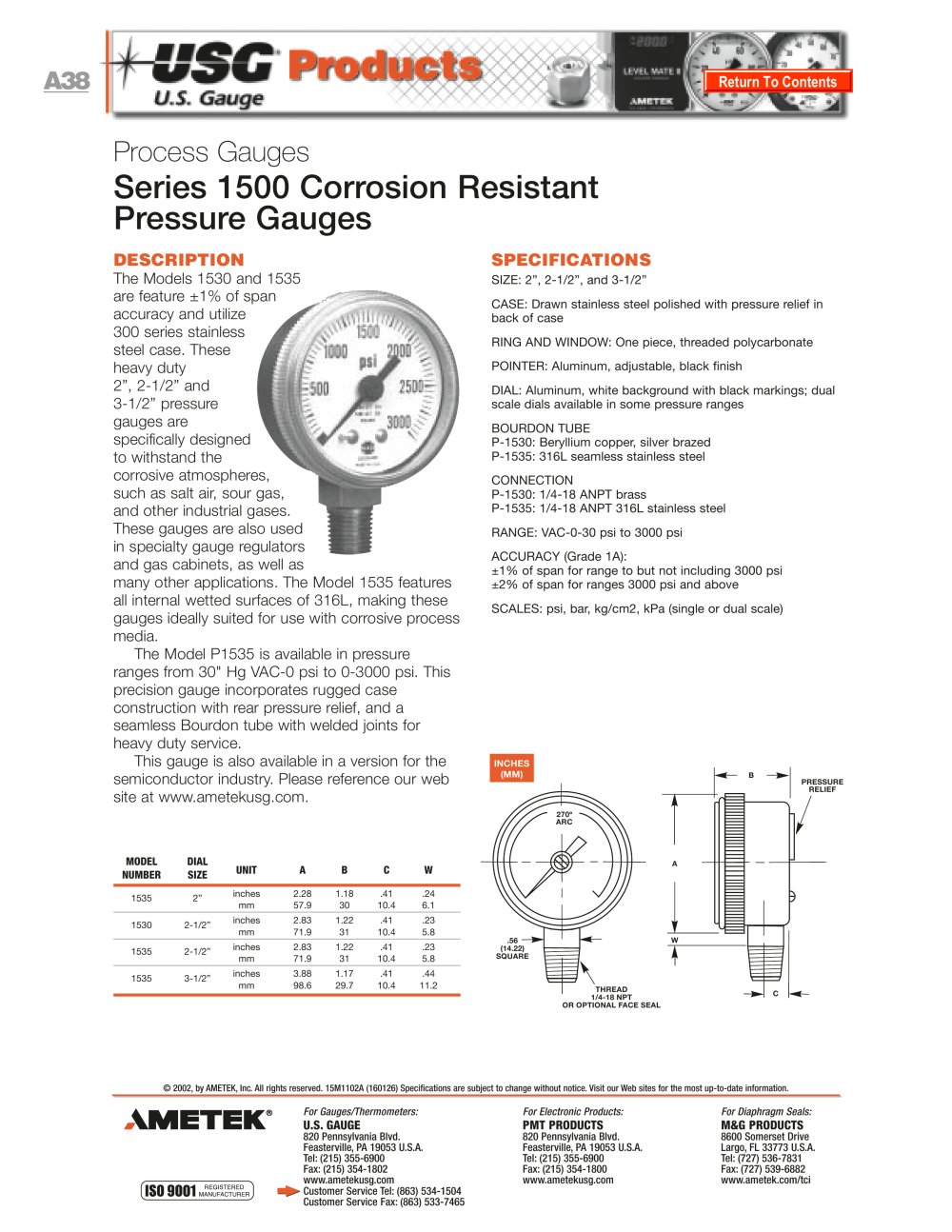

| | | DESCRIPTION The Models 1530 and 1535 are feature +1 % of span accuracy and utilize 300 series stainless steel case. These heavy duty 2", 2-1/2" and 3-1/2" pressure gauges are specifically designed to withstand the corrosive atmospheres, such as salt air, sour gas, and other industrial gases. These gauges are also used in specialty gauge regulators and gas caPinets, as well as many other applications. The Model 1535 features all internal wetted surfaces of 316L, making these gauges ideally suited for use with corrosive process media. The Model P1535 is available in pressure ranges from 30" Hg VAC-0 psi to 0-3000 psi. This precision gauge incorporates rugged case construction with rear pressure relief, and a seamless Bourdon tube with welded joints for heavy duty service. This gauge is also available in a version for the semiconductor industry. Please reference our web site at www.ametekusg.com. | | SPECIFICATIONS SIZE: 2", 2-1/2", and 3-1/2" CASE: Drawn stainless steel polished with pressure relief in back of case RING AND WINDOW: One piece, threaded polycarbonate POINTER: Aluminum, adjustable, black finish DIAL: Aluminum, white background with black markings; dual scale dials available in some pressure ranges BOURDON TUBE P-1530: Beryllium copper, silver brazed P-1535: 316L seamless stainless steel CONNECTION P-1530: 1/4-18 ANPT brass P-1535: 1/4-18 ANPT 316L stainless steel RANGE: VAC-0-30 psi to 3000 psi ACCURACY (Grade 1A): ±1% of span for range to but not including 3000 psi ±2% of span for ranges 3000 psi and above SCALES: psi, bar, kg/cm2, kPa (single or dual scale) | | |
