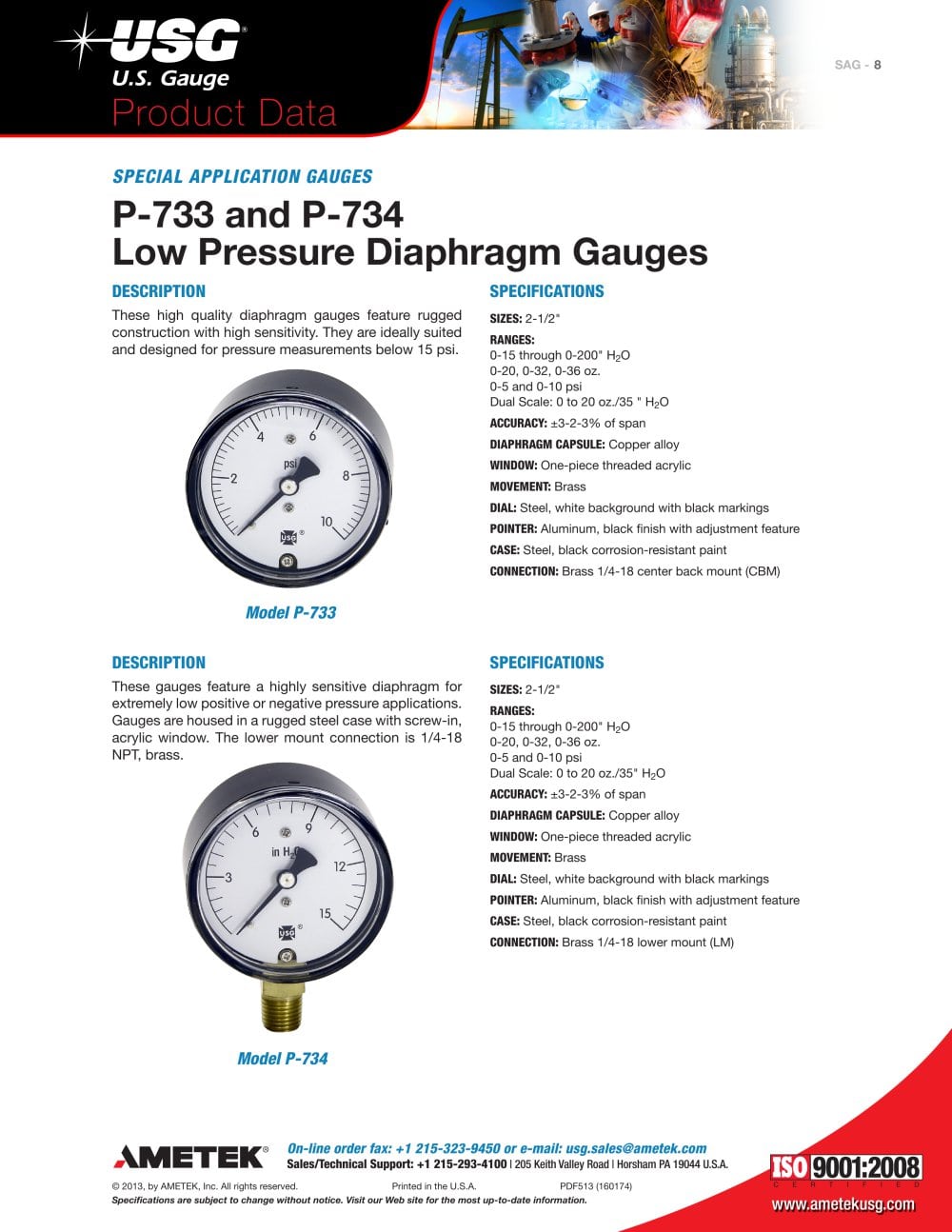

Specifications are subject to change without notice. Visit our Web site for the most up-to-date information. Sales/Technical Support: 215-257-6531 Customer Service: 727-536-7831 900 Clymer Avenue 8600 Somerset Drive Sellersville, PA 18960 U.S.A. Largo, FL 33773 U.S.A. © 2008, by AMETEK, Inc. All rights reserved. Printed in the U.S.A. 908PDF (160166) ALL ORDERS CAN BE SENT TO: On-line fax: 215-323-9450 or e-mail to usg.sales@ametek.com Special Application Gauges P-733 and P-734 Low Pressure Diaphragm Gauges DESCRIPTION P-733 These high quality diaphragm gauges feature rugged construction with high sensitivity. They are ideally suited and designed for pressure measurements below 15 psi. SPECIFICATIONS P-733 SIZE: 2-1/2” RANGES: 0 to 15, 35, 60, 100, 200, in H2O 0 to 20, 32, 36 oz. 0 to 5, 10 psi Dual Scale: 0 to 20 oz./35 in H2O ACCURACY: ±3-2-3% of span CASE: Steel, black corrosion-resistant paint DIAL: Steel, white background with black markings POINTER: Aluminum, black finish with adjustment feature WINDOW: One-piece threaded acrylic MOVEMENT: Brass DIAPHRAGM CAPSULE: Copper alloy CONNECTION: Brass 1/4-18 center-back male (CBM) DESCRIPTION P-734 These gauges feature a highly sensitive diaphragm for extremely low positive or negative pressure applications. Gauges are housed in a rugged steel case with screw-in, acrylic window. The low mount connection is 1/4-18 NPT, brass. SPECIFICATIONS P-734 SIZE: 2-1/2” RANGES: 0 to 15, 35, 60, 100, 200, in H2O 0 to 20, 32, 36 oz. 0 to 5, 10 psi Dual Scale: 0 to 20 oz./35 in H2O ACCURACY: ±3-2-3% of span CASE: Steel, black corrosion-resistant paint DIAL: Steel, white background with black markings POINTER: Aluminum, black finish with adjustment feature WINDOW: One-piece threaded acrylic MOVEMENT: Brass DIAPHRAGM CAPSULE: Copper alloy CONNECTION: Brass 1/4-18 low male (LM) Model P-733 Model P-734
