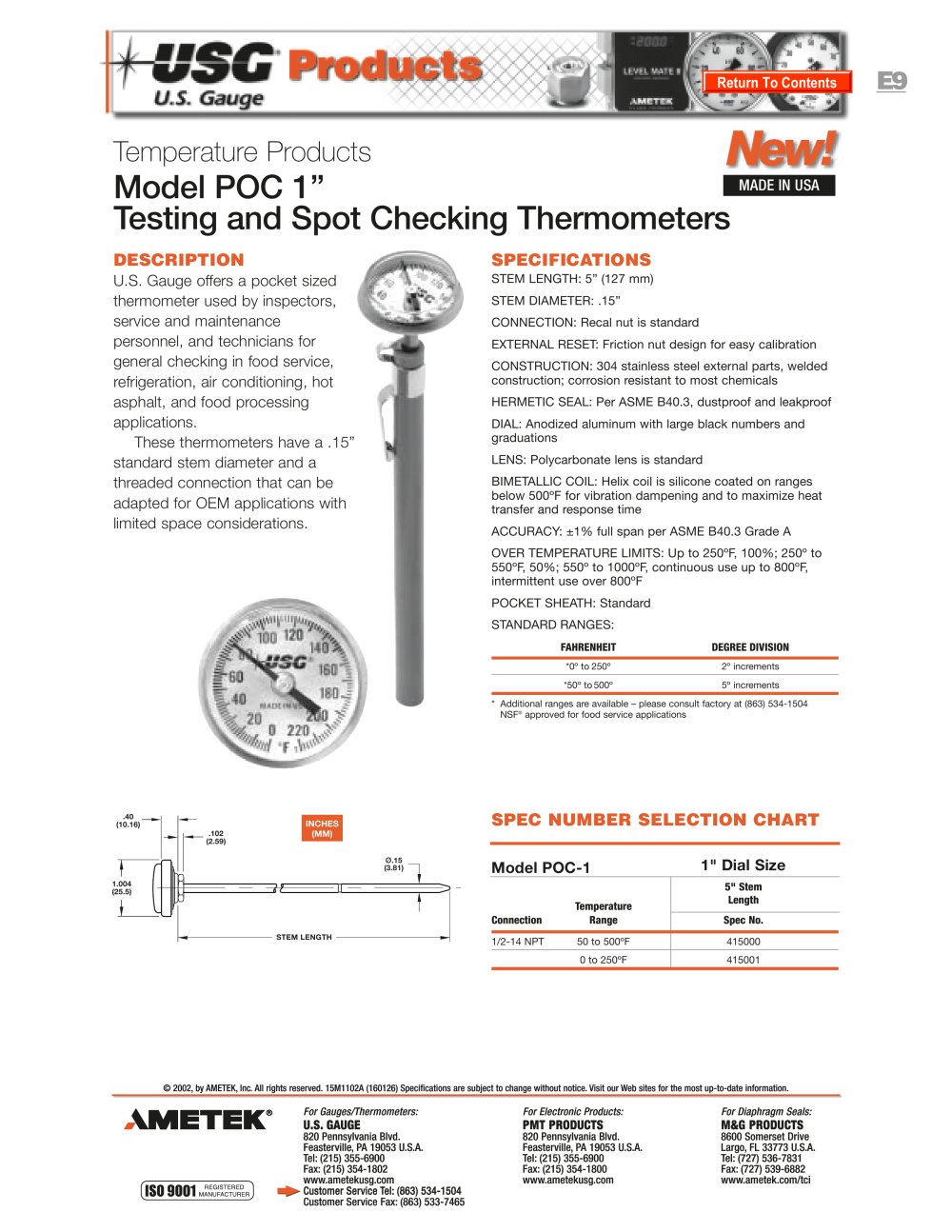

| SPECIFICATIONS STEM LENGTH: 5" (127 mm) STEM DIAMETER: .15" CONNECTION: Recal nut is standard EXTERNAL RESET: Friction nut design for easy calibration CONSTRUCTION: 304 stainless steel external parts, welded construction; corrosion resistant to most chemicals HERMETIC SEAL: Per ASME B40.3, dustproof and leakproof DIAL: Anodized aluminum with large black numbers and graduations LENS: Polycarbonate lens is standard BIMETALLIC COIL: Helix coil is silicone coated on ranges below 500°F for vibration dampening and to maximize heat transfer and response time ACCURACY: ±1% full span per ASME B40.3 Grade A OVER TEMPERATURE LIMITS: Up to 250°F, 100%; 250° to 550°F, 50%; 550° to 1000°F, continuous use up to 800°F, intermittent use over 800°F POCKET SHEATH: Standard STANDARD RANGES: |
