| U.S. Gauge | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| New! | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||

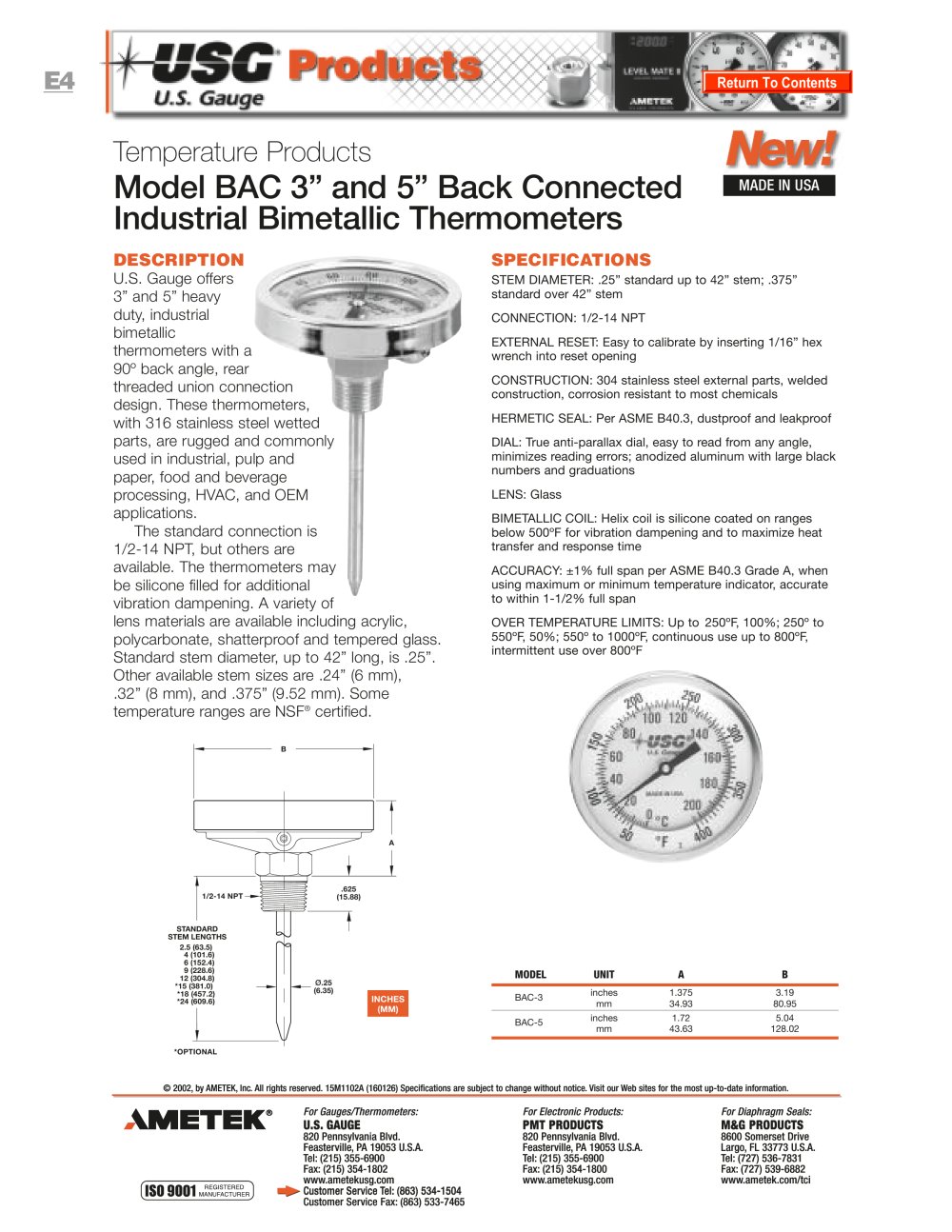

| Temperature Products Model BAC 3" and 5" Back Connected Industrial Bimetallic Thermometers | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| MADE IN USA | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| DESCRIPTION U.S. Gauge offers 3" and 5" heavy dufy, industrial bimetallic thermometers with a 90° back angle, rear threaded union connection design. These thermometers, with 316 stainless steel wetted parts, are rugged and commonly used in industrial, pulp and paper, food and beverage processing, HVAC, and OEM applications. The standard connection is 1/2-14 NPT, but others are available. The thermometers may be silicone filled for additional vibration dampening. A variety of lens materials are available including acrylic, polycarbonate, shatterproof and tempered glass. Standard stem diameter, up to 42" long, is .25". Other available stem sizes are .24" (6 mm), .32" (8 mm), and .375" (9.52 mm). Some temperature ranges are NSF® certified. | SPECIFICATIONS STEM DIAMETER: .25" standard up to 42" stem; .375" standard over 42" stem CONNECTION: 1/2-14 NPT EXTERNAL RESET: Easy to calibrate by inserting 1/16" hex wrench into reset opening CONSTRUCTION: 304 stainless steel external parts, welded construction, corrosion resistant to most chemicals HERMETIC SEAL: Per ASME B40.3, dustproof and leakproof DIAL: True anti-parallax dial, easy to read from any angle, minimizes reading errors; anodized aluminum with large black numbers and graduations LENS: Glass BIMETALLIC COIL: Helix coil is silicone coated on ranges below 500°F for vibration dampening and to maximize heat transfer and response time ACCURACY: ±1% full span per ASME B40.3 Grade A, when using maximum or minimum temperature indicator, accurate to within 1-1/2% full span OVER TEMPERATURE LIMITS: Up to 250°F, 100%; 250° to 550°F, 50%; 550° to 1000°F, continuous use up to 800°F, intermittent use over 800°F | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| STANDARD STEM LENGTHS 2.5 (63.5) 4 (101.6) 6 (152.4) 9 (228.6) 12 (304.8) *15 (381.0) *18 (457.2) *24 (609.6) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| B | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| 3.19 80.95 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| 5.04 128.02 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| *OPTIONAL | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| © 2002, by AMETEK, Inc. All rights reserved. 15M1102A (160126) Specifications are subject to change without notice. Visit our Web sites for the most up-to-date information. | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| For Gauges/Thermometers: U.S. GAUGE 820 Pennsylvania Blvd. Feasterville, PA 19053 U.S.A. Tel: (215) 355-6900 Fax: (215) 354-1802 www.ametekusg.com - Customer Service Tel: (863) 534-1504 Customer Service Fax: (863) 533-7465 | For Electronic Products: PMT PRODUCTS 820 Pennsylvania Blvd. Feasterville, PA 19053 U.S.A. Tel: (215) 355-6900 Fax: (215) 354-1800 www.ametekusg.com | For Diaphragm Seals: M&G PRODUCTS 8600 Somerset Drive Largo, FL 33773 U.S.A. Tel: (727) 536-7831 Fax: (727) 539-6882 www.ametek.com/tci | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
