| U.S. Gauge | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| New! | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||

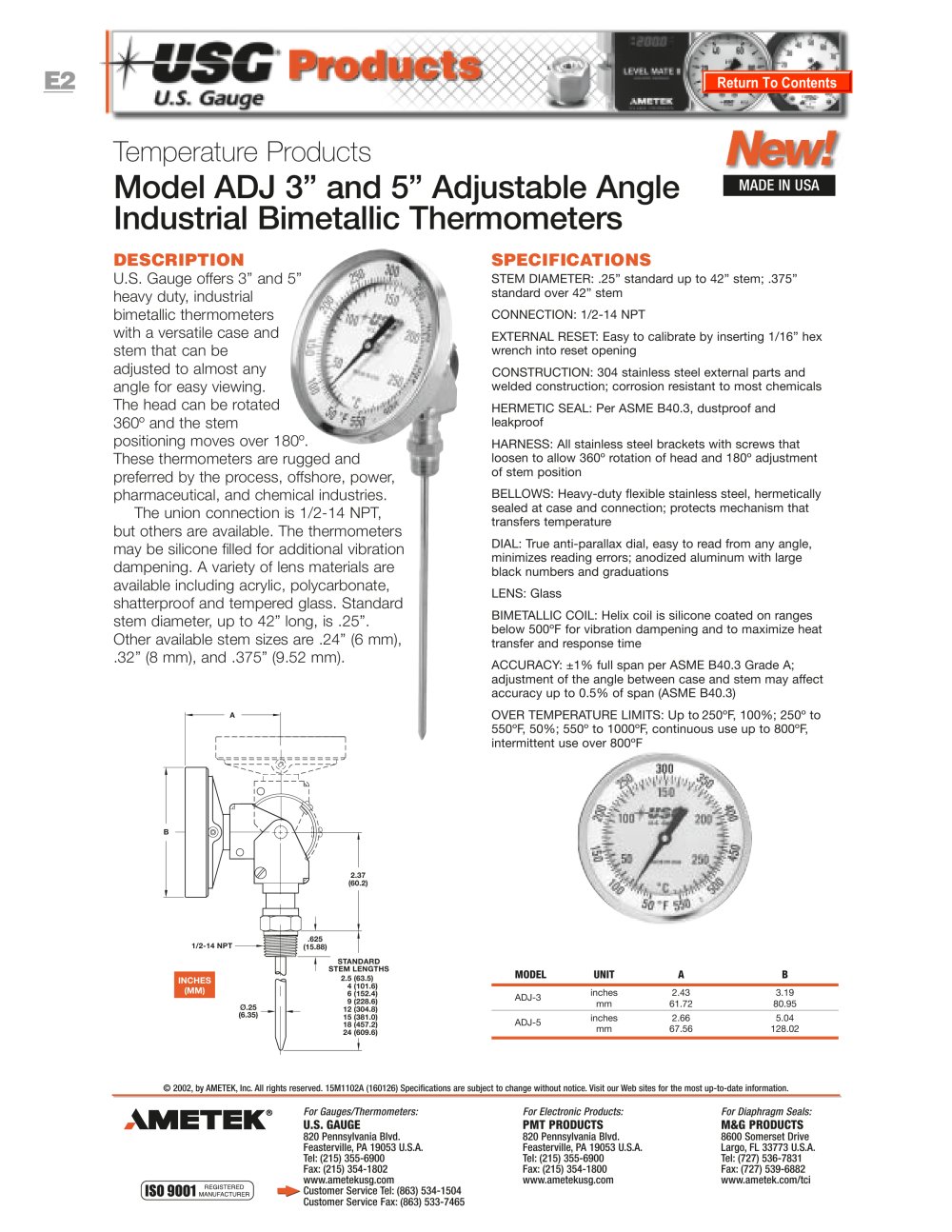

| Temperature Products Model ADJ 3" and 5" Adjustable Angle Industrial Bimetallic Thermometers | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| MADE IN USA | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| DESCRIPTION U.S. Gauge offers 3" and 5" heavy dufy, industrial bimetallic thermometers with a versatile case and stem that can be adjusted to almost any angle for easy viewing. The head can be rotated 360° and the stem positioning moves over 180°. These thermometers are rugged and preferred by the process, offshore, power, pharmaceutical, and chemical industries. The union connection is 1/2-14 NPT, but others are available. The thermometers may be silicone filled for additional vibration dampening. A variety of lens materials are available including acrylic, polycarbonate, shatterproof and tempered glass. Standard stem diameter, up to 42" long, is .25". Other available stem sizes are .24" (6 mm), .32" (8 mm), and .375" (9.52 mm). | SPECIFICATIONS STEM DIAMETER: .25" standard up to 42" stem; .375" standard over 42" stem CONNECTION: 1/2-14 NPT EXTERNAL RESET: Easy to calibrate by inserting 1/16" hex wrench into reset opening CONSTRUCTION: 304 stainless steel external parts and welded construction; corrosion resistant to most chemicals HERMETIC SEAL: Per ASME B40.3, dustproof and leakproof HARNESS: All stainless steel brackets with screws that loosen to allow 360° rotation of head and 180° adjustment of stem position BELLOWS: Heavy-duty flexible stainless steel, hermetically sealed at case and connection; protects mechanism that transfers temperature DIAL: True anti-parallax dial, easy to read from any angle, minimizes reading errors; anodized aluminum with large black numbers and graduations LENS: Glass BIMETALLIC COIL: Helix coil is silicone coated on ranges below 500°F for vibration dampening and to maximize heat transfer and response time ACCURACY: ±1% full span per ASME B40.3 Grade A; adjustment of the angle between case and stem may affect accuracy up to 0.5% of span (ASME B40.3) OVER TEMPERATURE LIMITS: Up to250°F, 100%; 250° to 550°F, 50%; 550° to 1000°F, continuous use up to 800°F, intermittent use over 800°F | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| 2.37 (60.2) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| STANDARD STEM LENGTHS 2.5 (63.5) 4 (101.6) 6 (152.4) 9 (228.6) 12 (304.8) 15 (381.0) 18 (457.2) 24 (609.6) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| © 2002, by AMETEK, Inc. All rights reserved. 15M1102A (160126) Specifications are subject to change without notice. Visit our Web sites for the most up-to-date information. | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| For Gauges/Thermometers: U.S. GAUGE 820 Pennsylvania Blvd. Feasterville, PA 19053 U.S.A. Tel: (215) 355-6900 Fax: (215) 354-1802 www.ametekusg.com - Customer Service Tel: (863) 534-1504 Customer Service Fax: (863) 533-7465 | For Electronic Products: PMT PRODUCTS 820 Pennsylvania Blvd. Feasterville, PA 19053 U.S.A. Tel: (215) 355-6900 Fax: (215) 354-1800 www.ametekusg.com | For Diaphragm Seals: M&G PRODUCTS 8600 Somerset Drive Largo, FL 33773 U.S.A. Tel: (727) 536-7831 Fax: (727) 539-6882 www.ametek.com/tci | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||
