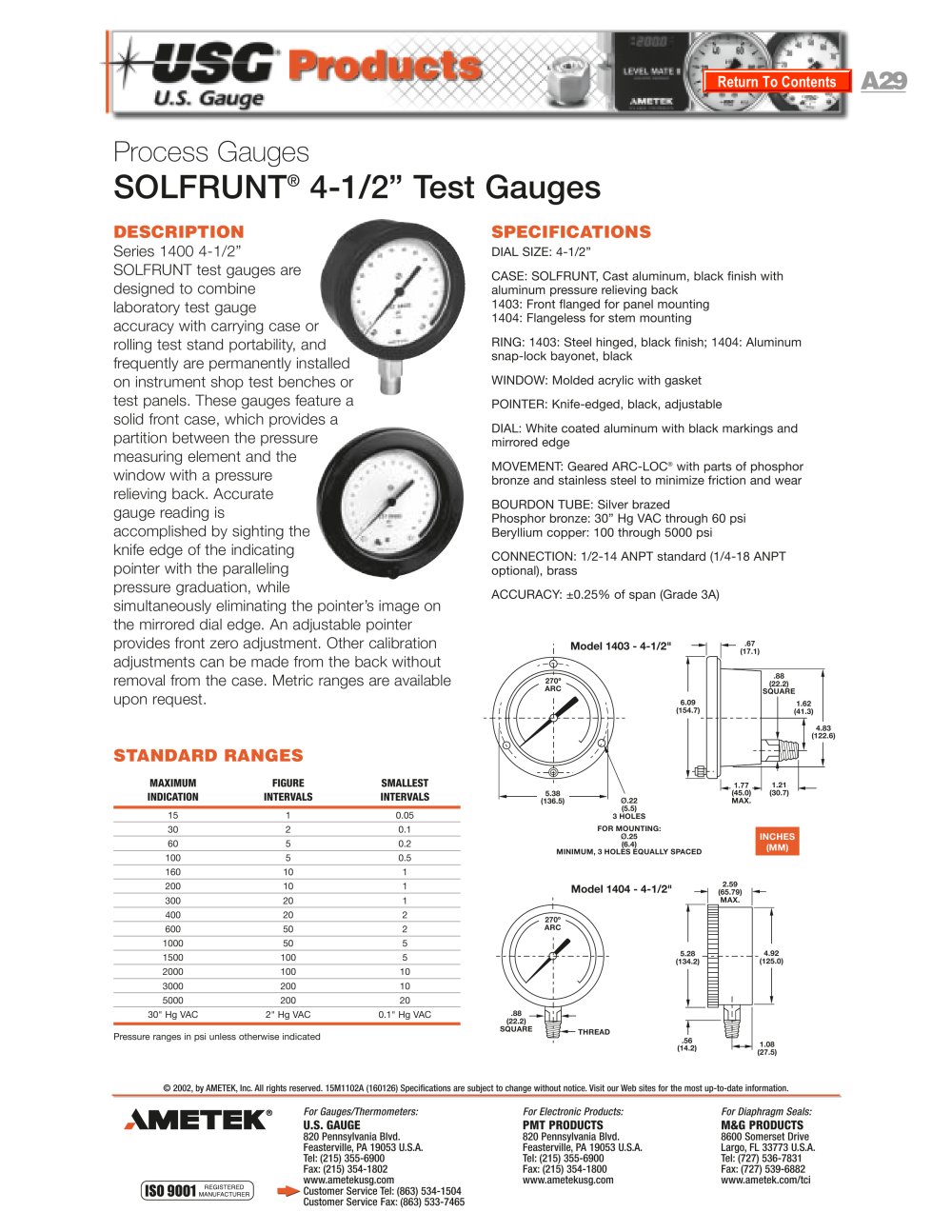

SOLFRUNT® 4-1/2" Test Gauges
DESCRIPTION
Series 1400 4-1/2" SOLFRUNT test gauges are designed to combine laboratory test gauge accuracy with carrying case or rolling test stand portability, and frequently are permanently installed on instrument shop test benches or test panels. These gauges feature a solid front case, which provides a partition between the pressure measuring element and the window with a pressure relieving back. Accurate gauge reading is accomplished by sighting the knife edge of the indicating pointer with the paralleling pressure graduation, while simultaneously eliminating the pointer's image on the mirrored dial edge. An adjustable pointer provides front zero adjustment. Other calibration adjustments can be made from the back without removal from the case. Metric ranges are available upon request.
SPECIFICATIONS
DIAL SIZE: 4-1/2"
CASE: SOLFRUNT, Cast aluminum, black finish with aluminum pressure relieving back 1403: Front flanged for panel mounting 1404: Flangeless for stem mounting
RING: 1403: Steel hinged, black finish; 1404: Aluminum snap-lock bayonet, black
WINDOW: Molded acrylic with gasket
POINTER: Knife-edged, black, adjustable
DIAL: White coated aluminum with black markings and mirrored edge
MOVEMENT: Geared ARC-LOC® with parts of phosphor bronze and stainless steel to minimize friction and wear
BOURDON TUBE: Silver brazed
Phosphor bronze: 30" Hg VAC through 60 psi
Beryllium copper: 100 through 5000 psi
CONNECTION: 1/2-14 ANPT standard (1/4-18 ANPT optional), brass
ACCURACY: ±0.25% of span (Grade 3A)
. .67 (17.1)
Model 1403 - 4-1/2"
.88
(22.2) SQUARE
6.09 (154.7)
1.62
(41.3)
4.83 (122.6)
MAXIMUM INDICATION
FIGURE INTERVALS
SMALLEST INTERVALS
15
1
0.05
30
2
0.1
60
5
0.2
100
5
0.5
160
10
1
200
10
1
300
20
1
400
20
2
600
50
2
1000
50
5
1500
100
5
2000
100
10
3000
200
10
5000
200
20
30" Hg VAC 2" Hg VAC Pressure ranges in psi unless otherwise indicated
0.1" Hg VAC
1-1.77 J 1.21 (45.0) (30.7) MAX.
5.38 (136.5)
0.22
(5.5)
3 HOLES
FOR MOUNTING:
0.25
(6.4)
MINIMUM, 3 HOLES EQUALLY SPACED
INCHES (MM)
2.59 (65.79) MAX.
Model 1404 - 4-1/2"
5.28 (134.2)
4.92 (125.0)
.88 (22.2) SQUARE
.56
(14.2)
1.08 (27.5)
