VMETEK
TECHNICAL & INDUSTRIAL PRODUCTS

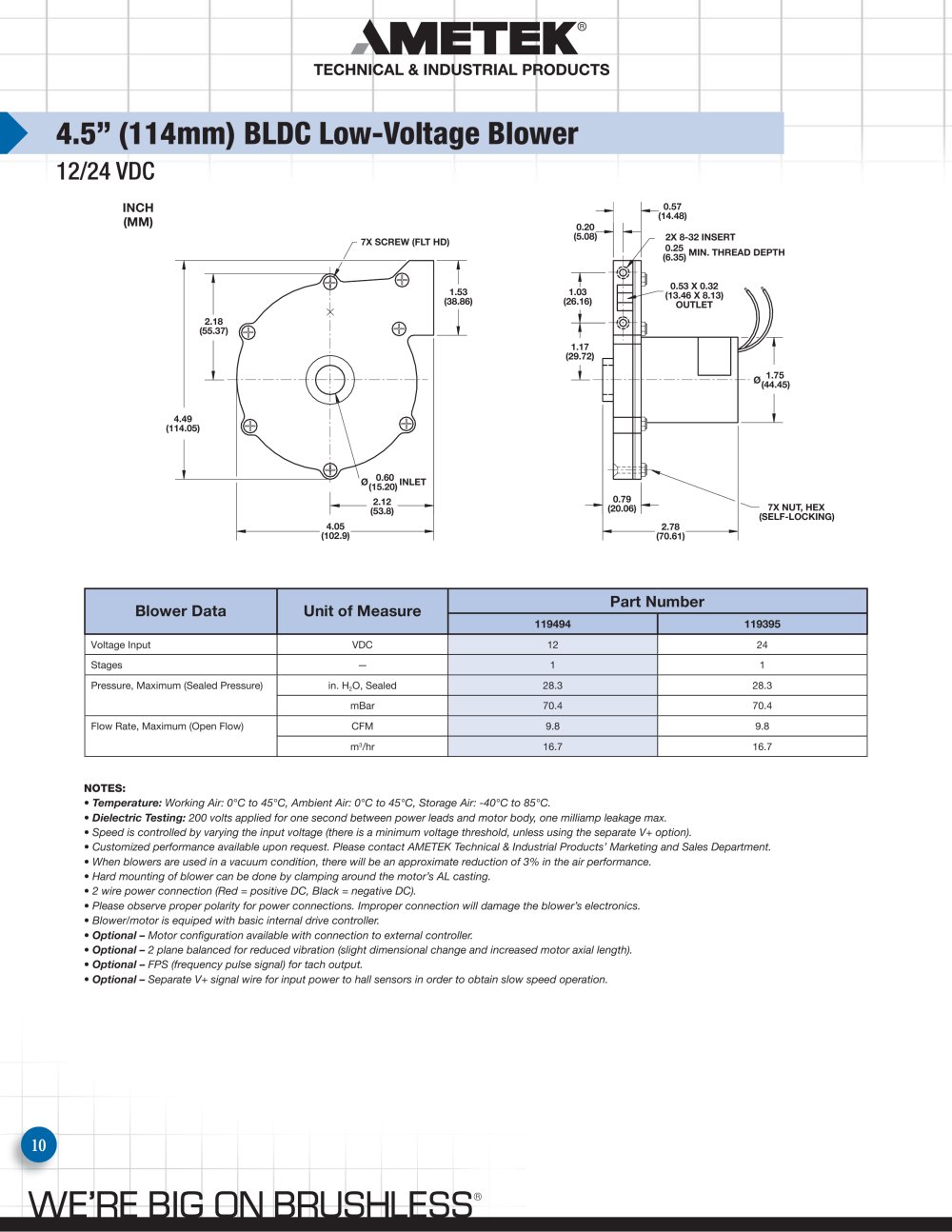

4.5" (114mm) BLDC Low-Voltage Blower
INCH (MM)
_ 0.57 (14.48)
0.20_ (5.08)
2x 8-32 insert
7x screw (flt hd)
0.25
min. thread depth
(6.35)
0.53 x 0.32
(13.46 x 8.13)
outlet
1.53 (38.86)
1.03 (26.16)
1.17
(29.72)
0 1.75 0(44.45)
4.49 (114.05)
0.79
(20.06)
7x nut, hex (self-locking)
2.78 (70.61)
Blower Data
Unit of Measure
Part Number
119494
119395
Voltage Input
VDC
12
24
Stages
1
1
Pressure, Maximum (Sealed Pressure)
In. H2O, Sealed
28.3
28.3
mBar
70.4
70.4
Flow Rate, Maximum (Open Flow)
CFM
9.8
9.8
m3/hr
16.7
16.7
NOTES:
• Temperature: Working Air: 0°C to 45°C, Ambient Air: 0°C to 45°C, Storage Air: -40°C to 85°C.
• Dielectric Testing: 200 volts applied for one second between power leads and motor body, one milliamp leakage max.
• Speed is controlled by varying the input voltage (there is a minimum voltage threshold, unless using the separate V+ option).
• Customized performance available upon request. Please contact AMETEK Technical & Industrial Products' Marketing and Sales Department.
• When blowers are used in a vacuum condition, there will be an approximate reduction of 3% in the air performance.
• Hard mounting of blower can be done by clamping around the motor's AL casting.
• 2 wire power connection (Red = positive DC, Black = negative DC).
• Please observe proper polarity for power connections. Improper connection will damage the blower's electronics.
• Blower/motor is equiped with basic internal drive controller
• Optional - Motor configuration available with connection to external controller
• Optional - 2 plane balanced for reduced vibration (slight dimensional change and increased motor axial length).
• Optional - FPS (frequency pulse signal) for tach output.
• Optional - Separate V+ signal wire for input power to hall sensors in order to obtain slow speed operation.
