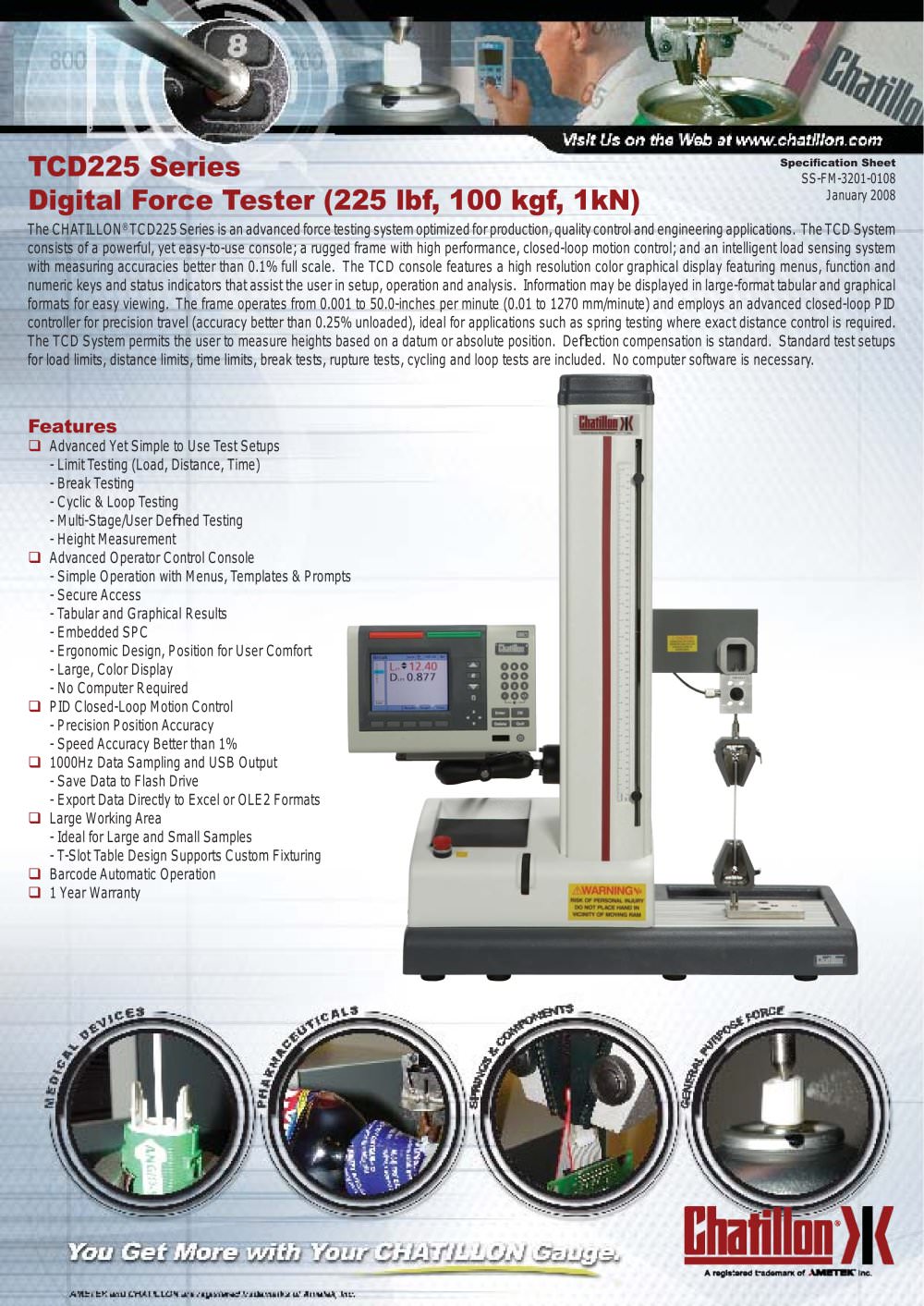

TCD225 SeriesDigital Force Professional tester (225 lbf, 100 kgf, 1kN)

Speci cation Sheet SS-FM-3201-0108January 2008 The CHATILLON
® TCD225 Series is an advanced force testing system optimized for production, quality control and engineering applications. The TCD System consists of a powerful, yet easy-to-use console; a rugged frame with high performance, closed-loop motion control; and an intelligent load sensing system with measuring accuracies better than 0.1% full scale. The TCD console features a high resolution color graphical display featuring menus, function and numeric keys and status indicators that assist the user in setup, operation and analysis. Information may be displayed in large-format tabular and graphical formats for easy viewing. The frame operates from 0.001 to 50.0-inches per minute (0.01 to 1270 mm/minute) and employs an advanced closed-loop Pid controller for precision travel (accuracy better than 0.25% unloaded), ideal for applications such as spring testing where exact distance control is required. The TCD System permits the user to measure heights based on a datum or absolute position. De ection compensation is standard. Standard test setups for load limits, distance limits, time limits, break tests, rupture tests, cycling and loop tests are included. No computer software is necessary.

Features

Advanced Yet Simple to Use Test Setups - Limit Testing (Load, Distance, Time) - Break Testing - Cyclic & Loop Testing - Multi-Stage/User De ned Testing - Height Measurement Advanced Operator Control Console - Simple Operation with Menus, Templates & Prompts - Secure Access - Tabular and Graphical Results - Embedded SPC - Ergonomic Design, Position for User Comfort - Large, Color Display - No Computer Required PID Closed-Loop Motion Control - Precision Position Accuracy - Speed Accuracy Better than 1% 1000Hz Data Sampling and USB Output - Save Data to Flash Drive - Export Data Directly to Excel or OLE2 Formats Large Working Area - Ideal for Large and Small Samples - T-Slot Table Design Supports Custom Fixturing Barcode Automatic Operation 1 Year Warranty
