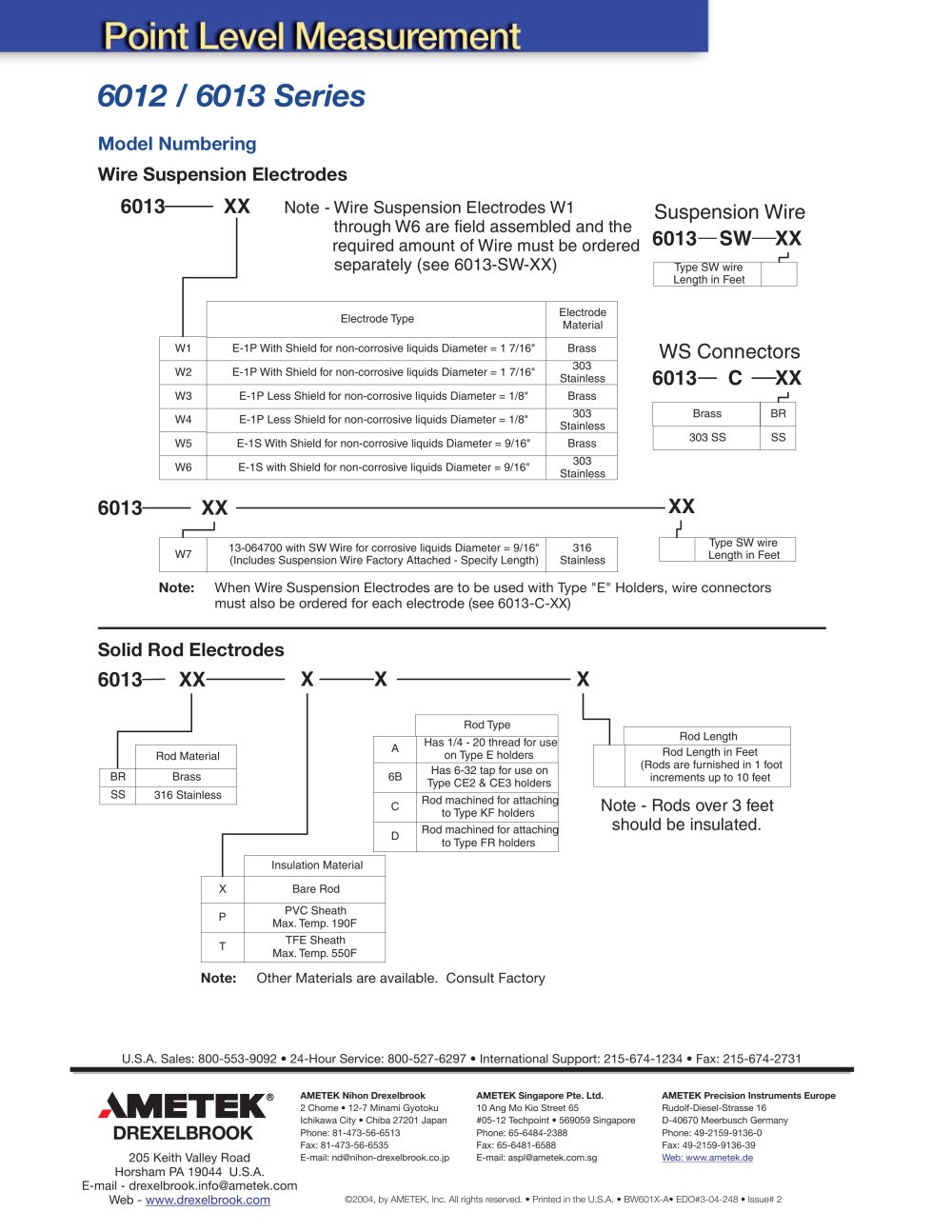

| | | Point Level Measurement | | |
| | | |
| | | 601216013 Series | | |
| | | |
| | | Model Numbering Wire Suspension Electrodes | | |
| | | |
| | | XX | | |
| | | 6013- | | |
| | | Note - Wire Suspension Electrodes W1 through W6 are field assembled and the required amount of Wire must be ordered separately (see 6013-SW-XX) | | |
| | | Suspension Wire 6013— SW—XX | | |
| | | |
| | | |
| | | |
| | | Type SW wire Length in Feet | | |
| | | |
| | | |
| | | | | | | | | | | | Electrode Type | Electrode Material | | | | W1 | E-1P With Shield for non-corrosive liquids Diameter = 1 7/16" | Brass | | | | W2 | E-1P With Shield for non-corrosive liquids Diameter = 1 7/16" | 303 Stainless | | | | W3 | E-1P Less Shield for non-corrosive liquids Diameter = 1/8" | Brass | | | | W4 | E-1P Less Shield for non-corrosive liquids Diameter = 1/8" | 303 Stainless | | | | W5 | E-1S With Shield for non-corrosive liquids Diameter = 9/16" | Brass | | | | W6 | E-1S with Shield for non-corrosive liquids Diameter = 9/16" | 303 Stainless | | | | | | | | | | |
| | | WS Connectors 6013— c —XX | | |
| | | |
| | | | | |
| | | |
| | | |
| | | XX r | | |
| | | XX _I | | |
| | | 6013- | | |
| | | |
| | | |
| | | | | |
| | | Type SW wire Length in Feet | | |
| | | 13-064700 with SW Wire for corrosive liquids Diameter = 9/16" (Includes Suspension Wire Factory Attached - Specify Length) | | |
| | | W7 | | |
| | | |
| | | |
| | | |
| | | |
| | | Note: | | When Wire Suspension Electrodes are to be used with Type "E" Holders, wire connectors must also be ordered for each electrode (see 6013-C-XX) | | |
| | | |
| | | |
| | | Solid Rod Electrodes 6013— XX- | | |
| | | X | | -X-X | | |
| | | |
| | | |
| | | | | | | | | | | | | | | | | | | | | | | | | Rod Material | | | | BR | Brass | | | | ss | 316 Stainless | | | | | | | | | | |
| | | | | | | | | | | Rod Type | | | | A | Has 1/4 - 20 thread for use on Type E holders | | | | 6B | Has 6-32 tap for use on Type CE2 & CE3 holders | | | | C | Rod machined for attaching to Type KF holders | | | | D | Rod machined for attaching to Type FR holders | | | | | | | | | |
| | | Rod Length Rod Length in Feet (Rods are furnished in 1 foot increments up to 10 feet | | |
| | | |
| | | Note - Rods over 3 feet should be insulated. | | |
| | | |
| | | |
| | | |
| | | Insulation Material | | |
| | | |
| | | X p | | Bare Rod PVC Sheath Max. Temp. 190F | | |
| | | |
| | | |
| | | TFE Sheath Max. Temp. 550F | | |
| | | T | | |
| | | |
| | | |
| | | Note: | | Other Materials are available. Consult Factory | | |
| | | |
| | | |
