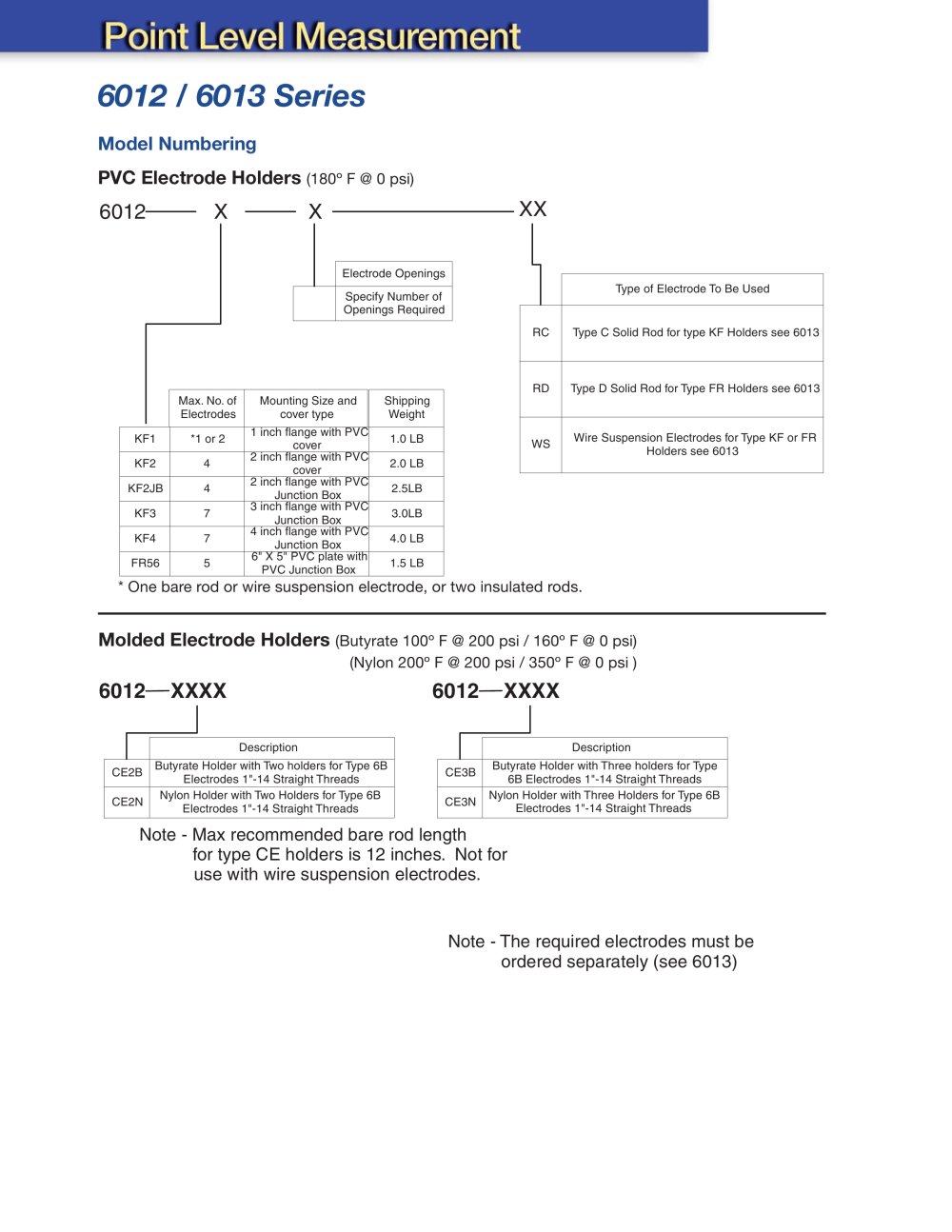

Point Level Measurement

601216013 Series

Model Numbering

PVC Electrode Holders (180° F@o psi) 6012- X - X-


	l_
			Type of Electrode To Be Used
	RC		Type C Solid Rod for type KF Holders see 6013
	RD		Type D Solid Rod for Type FR Holders see 6013
	WS		Wire Suspension Electrodes for Type KF or FR Holders see 6013

Electrode Openings

Specify Number of Openings Required


	Max. No. of Electrodes	Mounting Size and cover type	Shipping Weight
KF1	*1 or2	1 inch flange with PVC cover	1.0 LB
KF2	4	2 inch flange with PVC cover	2.0 LB
KF2JB	4	2 inch flange with PVC Junction box	2.5LB
KF3	7	3 inch flange with PVC Junction Box	3.0LB
KF4	7	4 inch flange with PVC Junction Box	4.0 LB
FR56	5	6" X 5" PVC plate with PVC Junction Box	1.5 LB

* One bare rod or wire suspension electrode, or two insulated rods.

Molded Electrode Holders (Butyrateioo⁰ F @ 200 psi /160°f@o psi)

(Nylon 200° F @ 200 psi / 350° F@0psi)

6012—XXXX 6012—XXXX



			Description
	CE2B		Butyrate Holder with Two holders for Type 6B Electrodes 1"-14 Straight Threads
	CE2N		Nylon Holder with Two Holders for Type 6B Electrodes 1"-14 Straight Threads



			Description
	CE3B		Butyrate Holder with Three holders for Type 6B Electrodes 1"-14 Straight Threads
	CE3N		Nylon Holder with Three Holders for Type 6B Electrodes 1"-14 Straight Threads

Note - Max recommended bare rod length

for type CE holders is 12 inches. Not for use with wire suspension electrodes.

Note - The required electrodes must be ordered separately (see 6013)
