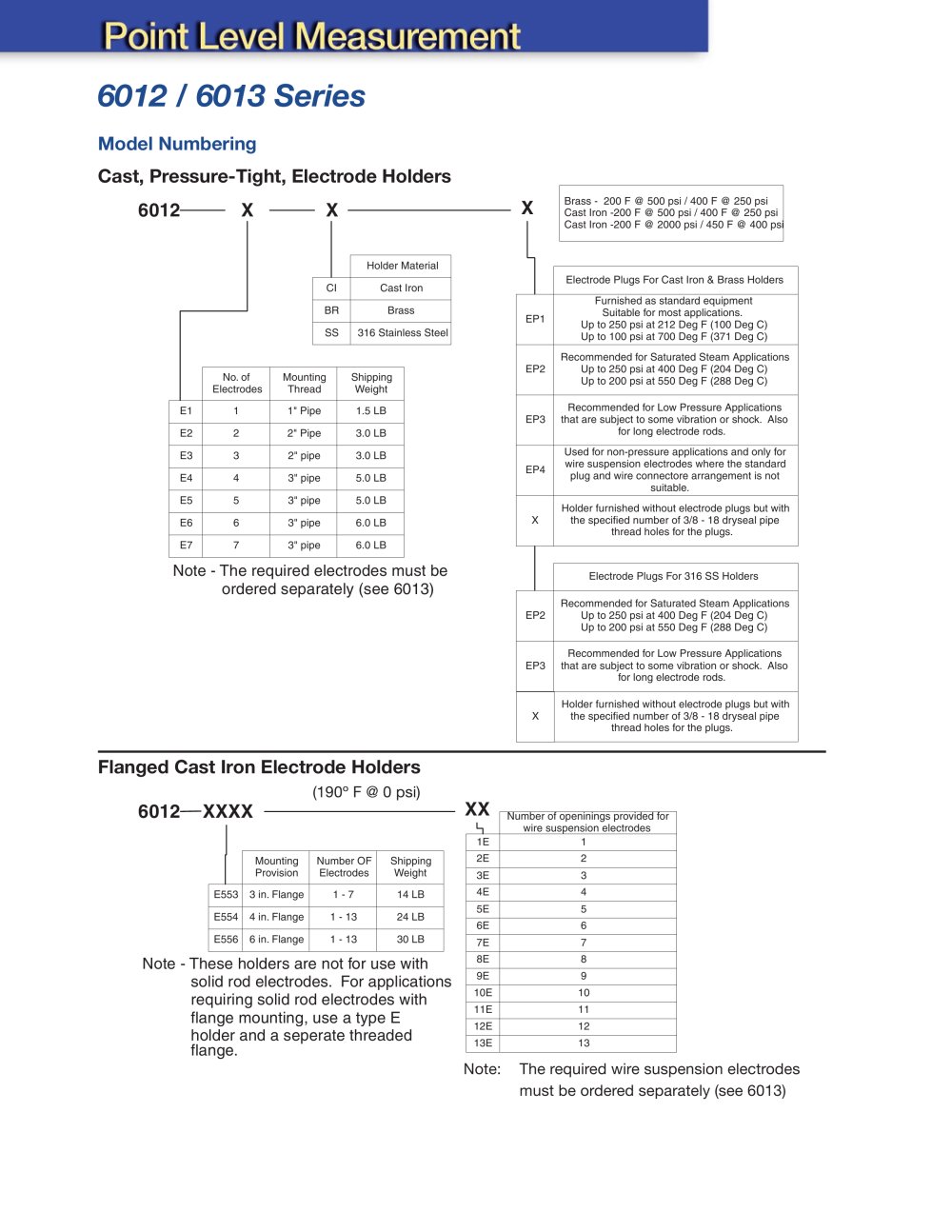

| | | 601216013 Series | | |
| | | |
| | | Model Numbering Cast, Pressure-Tight, Electrode Holders 6012- X - X- | | |
| | | Brass - 200 F® 500 psi /400 F@ 250 psi Cast Iron -200 F @ 500 psi /400 F@ 250 psi Cast Iron -200 F @ 2000 psi /450 F@ 400 psi | | |
| | | X | | |
| | | |
| | | |
| | | | | | | | | | | | | | | | | | | Holder Material | | | | CI | Cast Iron | | | | BR | Brass | | | | SS | 316 Stainless Steel | | | | | | | | | | |
| | | |
| | | | | | | | | | | L. | | | | | | | | Electrode Plugs For Cast Iron & Brass Holders | | | | EP1 | Furnished as standard equipment Suitable for most applications. Up to 250 psi at 212 Deg F (100 Deg C) Up to 100 psi at 700 Deg F (371 Deg c) | | | | EP2 | Recommended for Saturated Steam Applications Up to 250 psi at 400 Deg F (204 Deg C) Up to 200 psi at 550 Deg F (288 Deg c) | | | | EP3 | Recommended for Low Pressure Applications that are subject to some vibration or shock. Also for long electrode rods. | | | | EP4 | Used for non-pressure applications and only for wire suspension electrodes where the standard plug and wire connectore arrangement is not suitable. | | | | X | Holder furnished without electrode plugs but with the specified number of 3/8-18 dryseal pipe thread holes for the plugs. | | | | | | | | | | | | Electrode Plugs For316 SS Holders | | | | EP2 | Recommended for Saturated Steam Applications Up to 250 psi at 400 Deg F (204 Deg C) Up to 200 psi at 550 Deg F (288 Deg c) | | | | EP3 | Recommended for Low Pressure Applications that are subject to some vibration or shock. Also for long electrode rods. | | | | X | Holder furnished without electrode plugs but with the specified number of 3/8-18 dryseal pipe thread holes for the plugs. | | | | | | | | | | |
| | | |
| | | | | | | | | | | | | No. of Electrodes | Mounting Thread | Shipping Weight | | | | E1 | 1 | 1" Pipe | 1.5 LB | | | | E2 | 2 | 2" Pipe | 3.0 LB | | | | E3 | 3 | 2" pipe | 3.0 LB | | | | E4 | 4 | 3" pipe | 5.0 LB | | | | E5 | 5 | 3" pipe | 5.0 LB | | | | E6 | 6 | 3" pipe | 6.0 LB | | | | E7 | 7 | 3" pipe | 6.0 LB | | | | | | | | | | | |
| | | |
| | | Note - The required electrodes must be ordered separately (see 6013) | | |
| | | |
| | | |
| | | Flanged Cast Iron Electrode Holders (190°F@0psi) | | |
| | | |
| | | 6012- | | xxxx- | | |
| | | | | | | | | | s | Number of openinings provided for wire suspension electrodes | | | | 1E | 1 | | | | 2E | 2 | | | | 3E | 3 | | | | 4E | 4 | | | | 5E | 5 | | | | 6E | 6 | | | | 7E | 7 | | | | 8E | 8 | | | | 9E | 9 | | | | 10E | 10 | | | | 11E | 11 | | | | 12E | 12 | | | | 13E | 13 | | | | | | | | | |
| | | |
| | | |
| | | | | | | | | | | | | | | | | | | | | | | Mounting Provision | Number OF Electrodes | Shipping Weight | | | | E553 | 3 in. Flange | 1 - 7 | 14 LB | | | | E554 | 4 in. Flange | 1 -13 | 24 LB | | | | E556 | 6 in. Flange | 1 -13 | 30 LB | | | | | | | | | | | | |
| | | |
| | | Note - These holders are not for use with solid rod electrodes. For applications requiring solid rod electrodes with flange mounting, use atype E holder and a seperate threaded flange. | | |
| | | |
| | | |
| | | Note: The required wire suspension electrodes must be ordered separately (see 6013) | | |
| | | |
| | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | |
