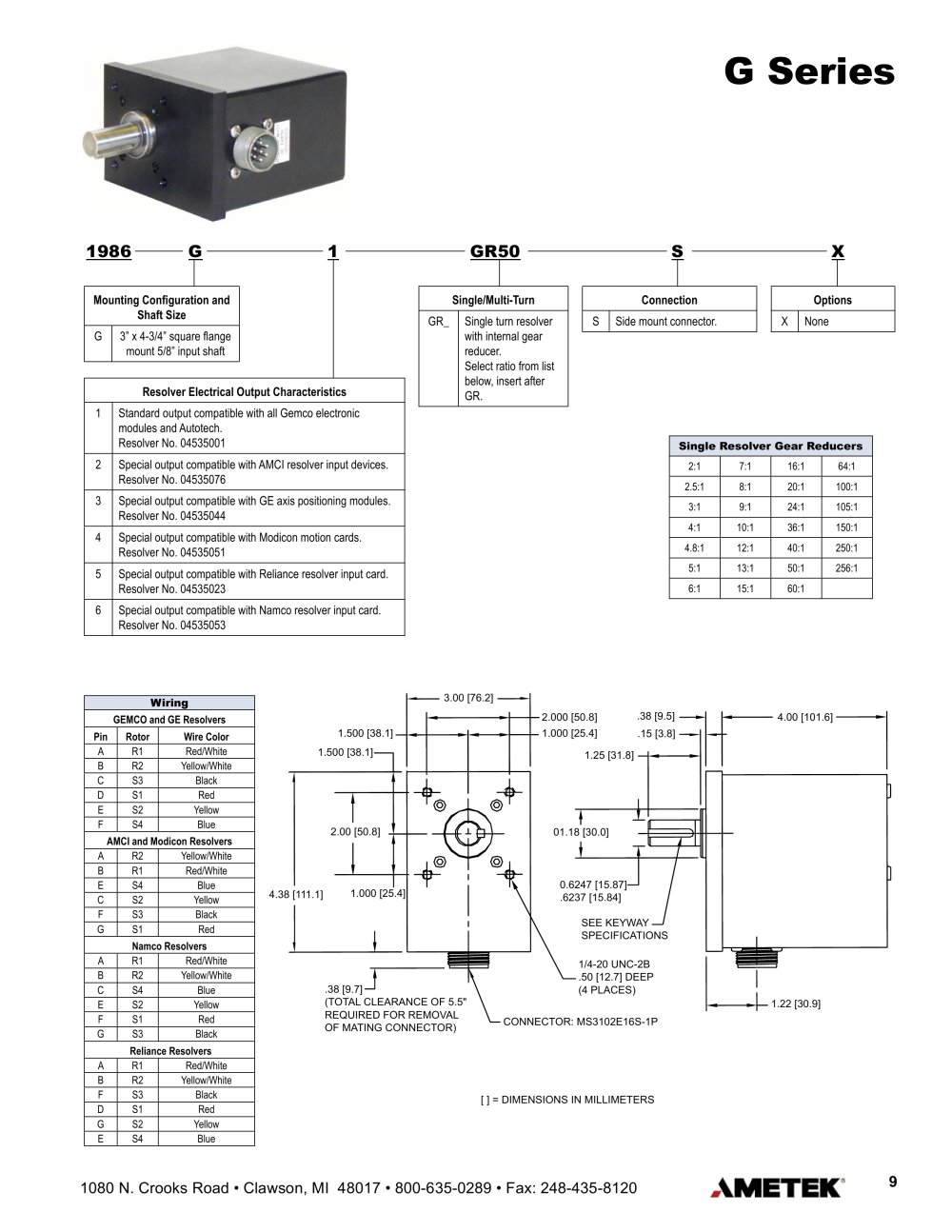

G Series

1986 G 1 GR50 S X

Mounting Configuration and Shaft Size Single/Multi-Turn Connection Options GR_Single turn resolver with internal gear reducer. Select ratio from list below, insert after GR. SSide mount connector. XNone G3” x 4-3/4” square flange mount 5/8” input shaft Resolver Electrical Output Characteristics 1Standard output compatible with all Gemco electronic modules and Autotech. Resolver No. 045350012Special output compatible with AMCI resolver input devices.Resolver No. 045350763Special output compatible with GE axis positioning modules.Resolver No. 045350444Special output compatible with Modicon motion cards.Resolver No. 045350515Special output compatible with Reliance resolver input card.Resolver No. 045350236Special output compatible with Namco resolver input card.Resolver No. 04535053

Single Resolver Gear Reducers 2:17:116:164:12.5:18:120:1100:13:19:124:1105:1 4:110:136:1150:14.8:112:140:1250:15:113:150:1256:1 6:115:160:1 Wiring
3.00 [76.2]2.000 [50.8]1.000 [25.4]1.25 [31.8].38 [9.5].15 [3.8]1.500 [38.1]1.500 [38.1]2.00 [50.8]4.38 [111.1]1.000 [25.4].38 [9.7](TOTAL CLEARANCE OF 5.5" REQUIRED FOR REMOVAL OF MATING CONNECTOR)CONNECTOR: MS3102E16S-1P1/4-20 UNC-2B.50 [12.7] DEEP (4 PLACES) 01.18 [30.0]0.6247 [15.87].6237 [15.84]SEE KEYWAYSPECIFICATIONS1.22 [30.9] 4.00 [101.6] [ ] = DIMENSIONS IN MILLIMETERS GEMCO and GE ResolversPin RotorWire Color AR1Red/WhiteBR2Yellow/WhiteCS3Black DS1RedES2YellowFS4Blue AMCI and Modicon Resolvers AR2Yellow/WhiteBR1Red/White ES4BlueCS2YellowFS3BlackGS1Red Namco Resolvers AR1Red/WhiteBR2Yellow/WhiteCS4BlueES2YellowFS1RedGS3Black Reliance Resolvers AR1Red/WhiteBR2Yellow/WhiteFS3BlackDS1RedGS2YellowES4Blue
