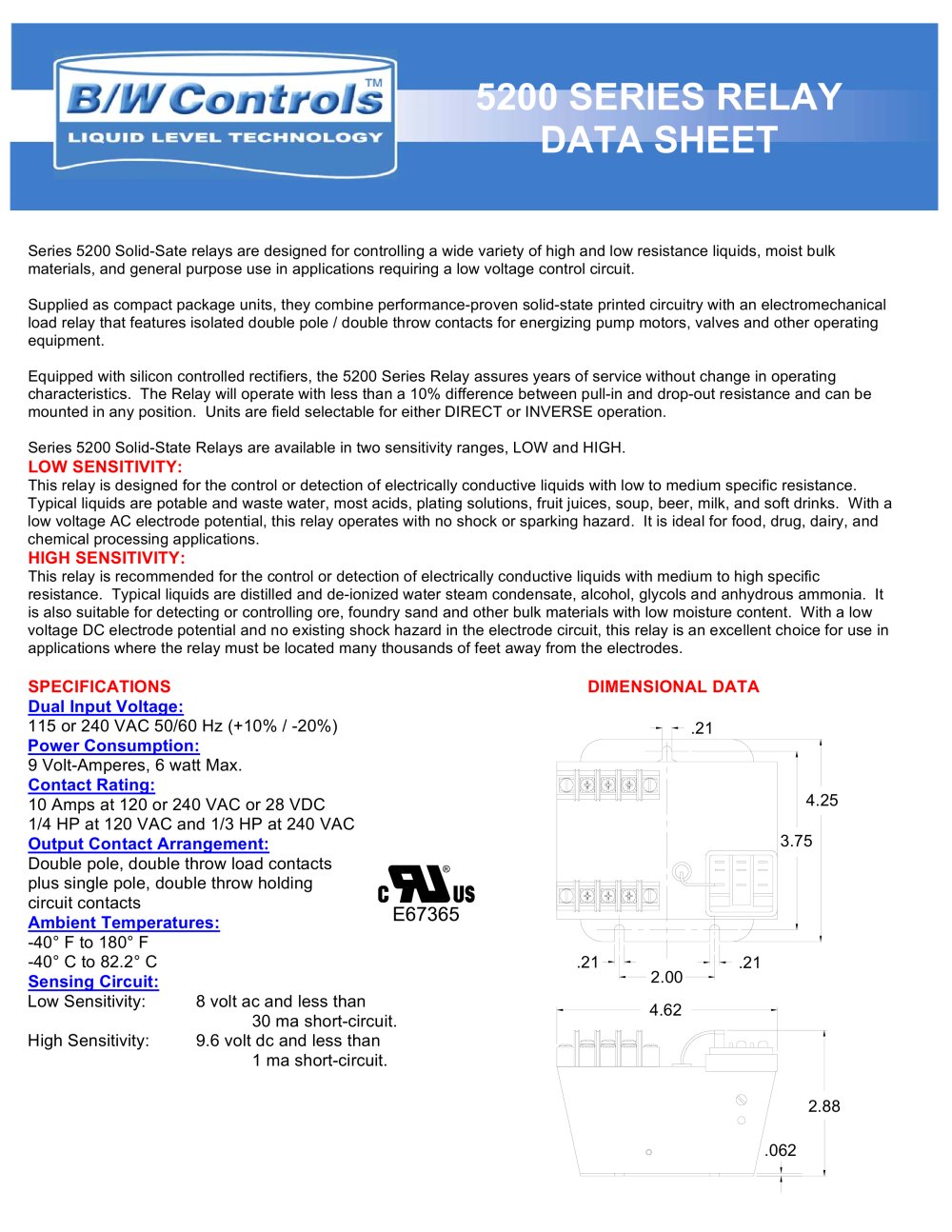

Series 5200 Solid-Sate relays are designed
materials, and general purpose use in
Supplied as compact package units,
load relay that features isolated double
equipment.
Equipped with silicon controlled rectifiers,
characteristics. The Relay will operate
mounted in any position. Units are field
Series 5200 Solid-State Relays are available
LOW SENSITIVITY:
This relay is designed for the control
Typical liquids are potable and waste
low voltage AC electrode potential, this
chemical processing applications.
HIGH SENSITIVITY:
This relay is recommended for the control
resistance. Typical liquids are distilled
is also suitable for detecting or controlling
voltage DC electrode potential and no
applications where the relay must be
SPECIFICATIONS
Dual Input Voltage:
115 or 240 VAC 50/60 Hz (+10%
Power Consumption:
9 Volt-Amperes, 6 watt Max.
Contact Rating:
10 Amps at 120 or 240 VAC or 28
1/4 HP at 120 VAC and 1/3 HP at
Output Contact Arrangement:
Double pole, double throw load contacts
plus single pole, double throw holding
circuit contacts
Ambient Temperatures:
-40° F to 180° F
-40° C to 82.2° C
