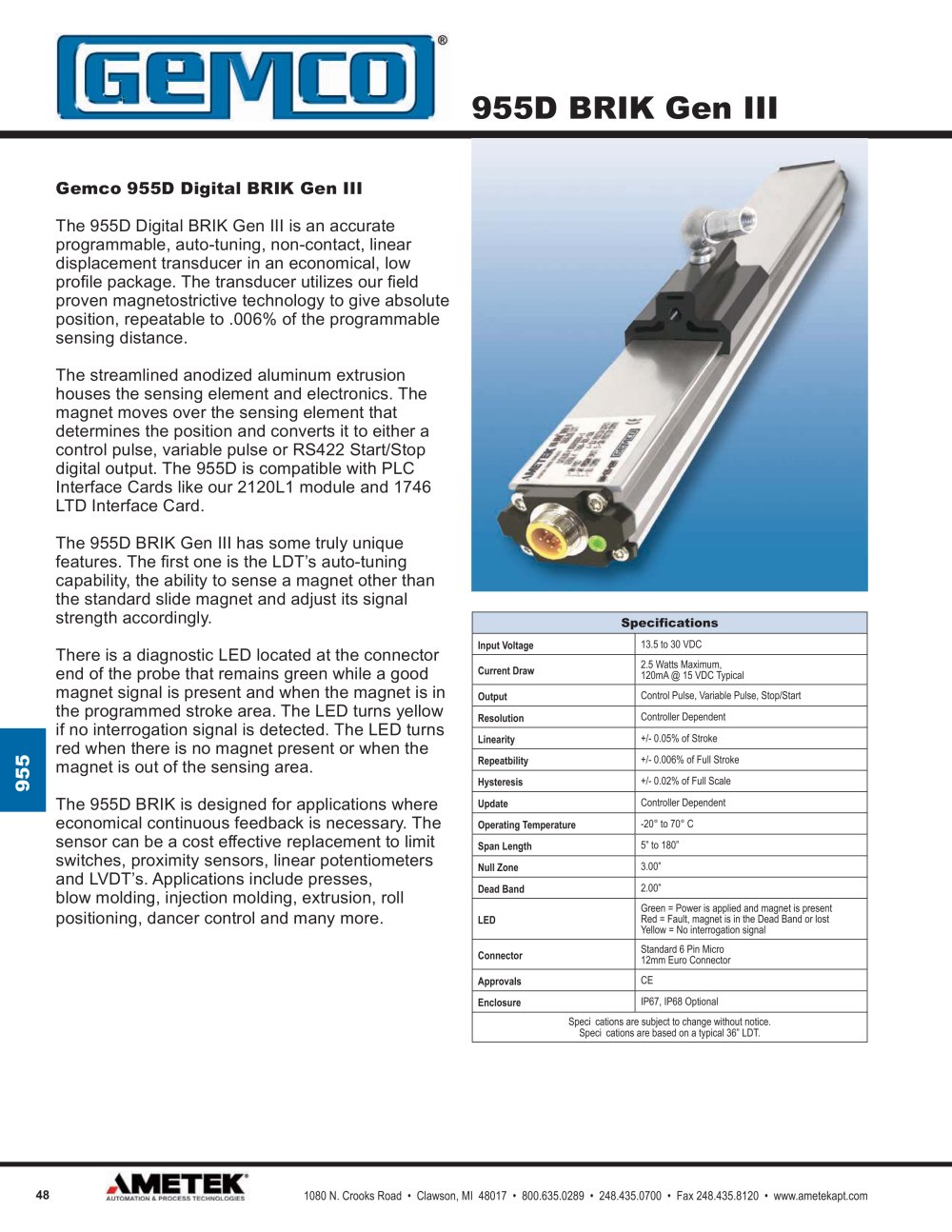

48 1080 N. Crooks Road • Clawson, MI 48017 • 800.635.0289 • 248.435.0700 • Fax 248.435.8120 • www.ametekapt.com 955 955D BRIK Gen III Specifications Input Voltage 13.5 to 30 VDC Current Draw 2.5 Watts Maximum, 120mA @ 15 VDC Typical Output Control Pulse, Variable Pulse, Stop/Start Resolution Controller Dependent Linearity +/- 0.05% of Stroke Repeatbility +/- 0.006% of Full Stroke Hysteresis +/- 0.02% of Full Scale Update Controller Dependent Operating Temperature -20° to 70° C Span Length 5” to 180” Null Zone 3.00” Dead Band 2.00” LED Green = Power is applied and magnet is present Red = Fault, magnet is in the Dead Band or lost Yellow = No interrogation signal Connector Standard 6 Pin Micro 12mm Euro Connector Approvals CE Enclosure IP67, IP68 Optional Speci cations are subject to change without notice. Speci cations are based on a typical 36” LDT. Gemco 955D Digital BRIK Gen III The 955D Digital BRIK Gen III is an accurate programmable, auto-tuning, non-contact, linear displacement transducer in an economical, low profi le package. The transducer utilizes our fi eld proven magnetostrictive technology to give absolute position, repeatable to .006% of the programmable sensing distance. The streamlined anodized aluminum extrusion houses the sensing element and electronics. The magnet moves over the sensing element that determines the position and converts it to either a control pulse, variable pulse or RS422 Start/Stop digital output. The 955D is compatible with PLC Interface Cards like our 2120L1 module and 1746 LTD Interface Card. The 955D BRIK Gen III has some truly unique features. The fi rst one is the LDT’s auto-tuning capability, the ability to sense a magnet other than the standard slide magnet and adjust its signal strength accordingly. There is a diagnostic LED located at the connector end of the probe that remains green while a good magnet signal is present and when the magnet is in the programmed stroke area. The LED turns yellow if no interrogation signal is detected. The LED turns red when there is no magnet present or when the magnet is out of the sensing area. The 955D BRIK is designed for applications where economical continuous feedback is necessary. The sensor can be a cost effective replacement to limit switches, proximity sensors, linear potentiometers and LVDT’s. Applications include presses, blow molding, injection molding, extrusion, roll positioning, dancer control and many more.
