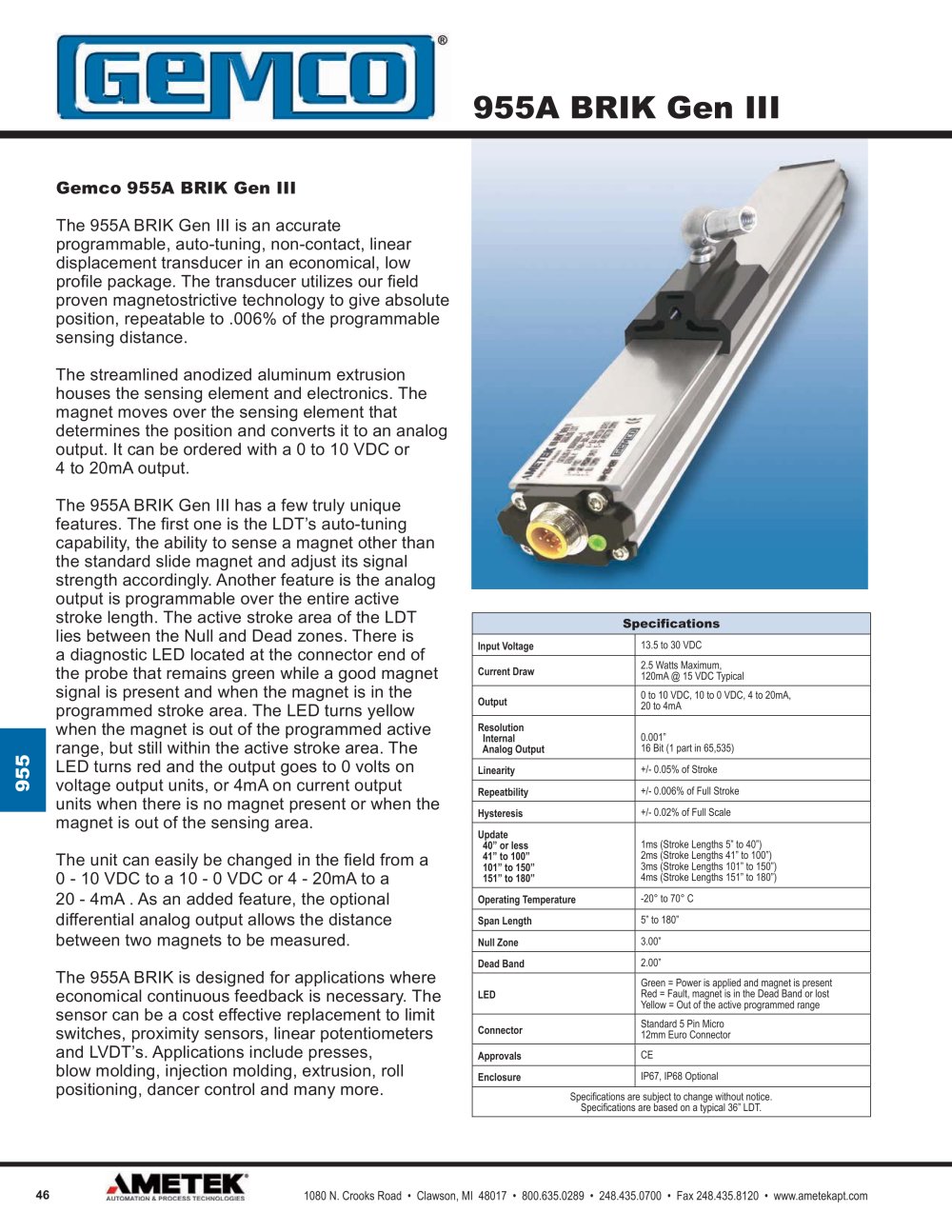

46 1080 N. Crooks Road • Clawson, MI 48017 • 800.635.0289 • 248.435.0700 • Fax 248.435.8120 • www.ametekapt.com 955 955A BRIK Gen III Specifications Input Voltage 13.5 to 30 VDC Current Draw 2.5 Watts Maximum, 120mA @ 15 VDC Typical Output 0 to 10 VDC, 10 to 0 VDC, 4 to 20mA, 20 to 4mA Resolution Internal Analog Output 0.001” 16 Bit (1 part in 65,535) Linearity +/- 0.05% of Stroke Repeatbility +/- 0.006% of Full Stroke Hysteresis +/- 0.02% of Full Scale Update 40” or less 41” to 100” 101” to 150” 151” to 180” 1ms (Stroke Lengths 5” to 40”) 2ms (Stroke Lengths 41” to 100”) 3ms (Stroke Lengths 101” to 150”) 4ms (Stroke Lengths 151” to 180”) Operating Temperature -20° to 70° C Span Length 5” to 180” Null Zone 3.00” Dead Band 2.00” LED Green = Power is applied and magnet is present Red = Fault, magnet is in the Dead Band or lost Yellow = Out of the active programmed range Connector Standard 5 Pin Micro 12mm Euro Connector Approvals CE Enclosure IP67, IP68 Optional Specifications are subject to change without notice. Specifications are based on a typical 36” LDT. Gemco 955A BRIK Gen III The 955A BRIK Gen III is an accurate programmable, auto-tuning, non-contact, linear displacement transducer in an economical, low profi le package. The transducer utilizes our fi eld proven magnetostrictive technology to give absolute position, repeatable to .006% of the programmable sensing distance. The streamlined anodized aluminum extrusion houses the sensing element and electronics. The magnet moves over the sensing element that determines the position and converts it to an analog output. It can be ordered with a 0 to 10 VDC or 4 to 20mA output. The 955A BRIK Gen III has a few truly unique features. The fi rst one is the LDT’s auto-tuning capability, the ability to sense a magnet other than the standard slide magnet and adjust its signal strength accordingly. Another feature is the analog output is programmable over the entire active stroke length. The active stroke area of the LDT lies between the Null and Dead zones. There is a diagnostic LED located at the connector end of the probe that remains green while a good magnet signal is present and when the magnet is in the programmed stroke area. The LED turns yellow when the magnet is out of the programmed active range, but still within the active stroke area. The LED turns red and the output goes to 0 volts on voltage output units, or 4mA on current output units when there is no magnet present or when the magnet is out of the sensing area. The unit can easily be changed in the fi eld from a 0 - 10 VDC to a 10 - 0 VDC or 4 - 20mA to a 20 - 4mA . As an added feature, the optional differential analog output allows the distance between two magnets to be measured. The 955A BRIK is designed for applications where economical continuous feedback is necessary. The sensor can be a cost effective replacement to limit switches, proximity sensors, linear potentiometers and LVDT’s. Applications include presses, blow molding, injection molding, extrusion, roll positioning, dancer control and many more.
