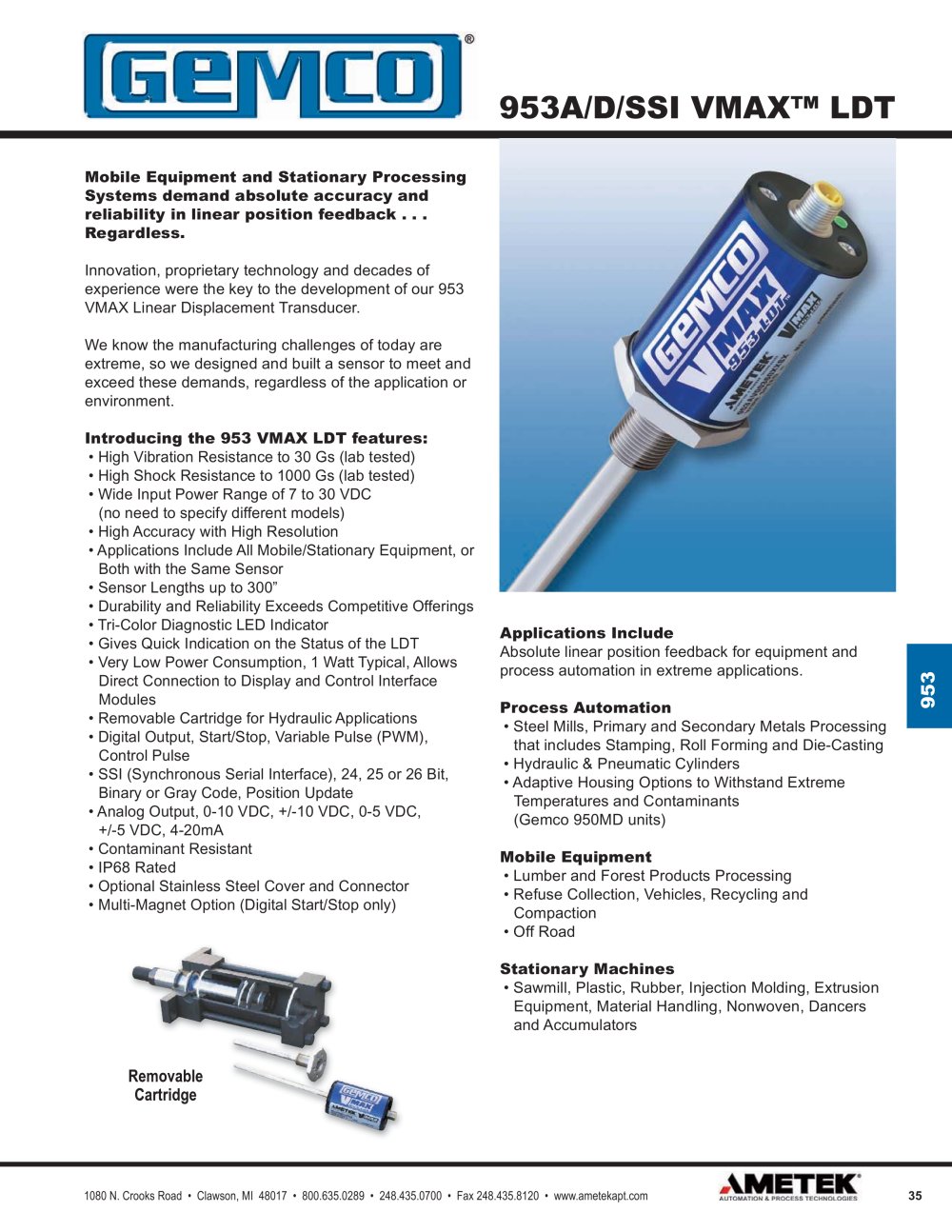

1080 N. Crooks Road • Clawson, MI 48017 • 800.635.0289 • 248.435.0700 • Fax 248.435.8120 • www.ametekapt.com 35 953 953A/D/SSI VMAX™ LDT Mobile Equipment and Stationary Processing Systems demand absolute accuracy and reliability in linear position feedback . . . Regardless. Innovation, proprietary technology and decades of experience were the key to the development of our 953 VMAX Linear Displacement Transducer. We know the manufacturing challenges of today are extreme, so we designed and built a sensor to meet and exceed these demands, regardless of the application or environment. Introducing the 953 VMAX LDT features: • High Vibration Resistance to 30 Gs (lab tested) • High Shock Resistance to 1000 Gs (lab tested) • Wide Input Power Range of 7 to 30 VDC (no need to specify different models) • High Accuracy with High Resolution • Applications Include All Mobile/Stationary Equipment, or Both with the Same Sensor • Sensor Lengths up to 300” • Durability and Reliability Exceeds Competitive Offerings • Tri-Color Diagnostic LED Indicator • Gives Quick Indication on the Status of the LDT • Very Low Power Consumption, 1 Watt Typical, Allows Direct Connection to Display and Control Interface Modules • Removable Cartridge for Hydraulic Applications • Digital Output, Start/Stop, Variable Pulse (PWM), Control Pulse • SSI (Synchronous Serial Interface), 24, 25 or 26 Bit, Binary or Gray Code, Position Update • Analog Output, 0-10 VDC, +/-10 VDC, 0-5 VDC, +/-5 VDC, 4-20mA • Contaminant Resistant • IP68 Rated • Optional Stainless Steel Cover and Connector • Multi-Magnet Option (Digital Start/Stop only) Applications Include Absolute linear position feedback for equipment and process automation in extreme applications. Process Automation • Steel Mills, Primary and Secondary Metals Processing that includes Stamping, Roll Forming and Die-Casting • Hydraulic & Pneumatic Cylinders • Adaptive Housing Options to Withstand Extreme Temperatures and Contaminants (Gemco 950MD units) Mobile Equipment • Lumber and Forest Products Processing • Refuse Collection, Vehicles, Recycling and Compaction • Off Road Stationary Machines • Sawmill, Plastic, Rubber, Injection Molding, Extrusion Equipment, Material Handling, Nonwoven, Dancers and Accumulators Removable Cartridge
