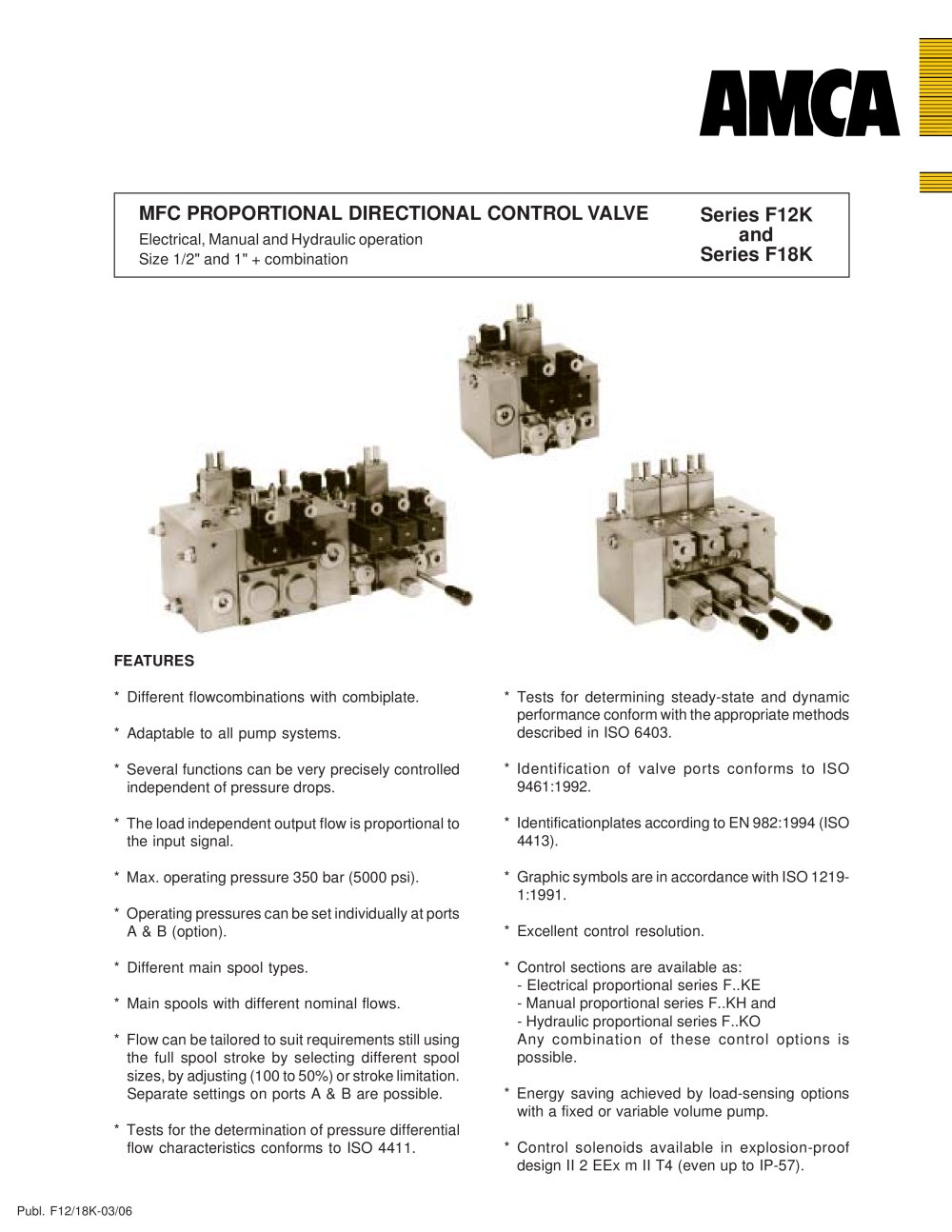

F12K/F18K - Electrical, Manual and Hydraulic operation - AMCA Hydraulic Fluid Power - #1

Text version of the page

FEATURES * Different flowcombinations with combiplate. * Adaptable to all pump systems. * Several functions can be very precisely controlled independent of pressure drops. * The load independent output flow is proportional to the input signal. * Max. operating pressure 350 bar (5000 psi). * Operating pressures can be set individually at ports A & B (option). * Different main spool types. * Main spools with different nominal flows. * Flow can be tailored to suit requirements still using the full spool stroke by selecting different spool sizes, by adjusting (100 to 50%) or stroke limitation. Separate settings on ports A & B are possible. * Tests for the determination of pressure differential flow characteristics conforms to ISO 4411. MFC PROPORTIONAL DIRECTIONAL CONTROL VALVE Electrical, Manual and Hydraulic operation Size 1/2" and 1" + combination Series F12K and Series F18K * Tests for determining steady-state and dynamic performance conform with the appropriate methods described in ISO 6403. * Identification of valve ports conforms to ISO 9461:1992. * Identificationplates according to EN 982:1994 (ISO 4413). * Graphic symbols are in accordance with ISO 1219- 1:1991. * Excellent control resolution. * Control sections are available as: - Electrical proportional series F..KE - Manual proportional series F..KH and - Hydraulic proportional series F..KO Any combination of these control options is possible. * Energy saving achieved by load-sensing options with a fixed or variable volume pump. * Control solenoids available in explosion-proof design II 2 EEx m II T4 (even up to IP-57). Publ. F12/18K-03/06
