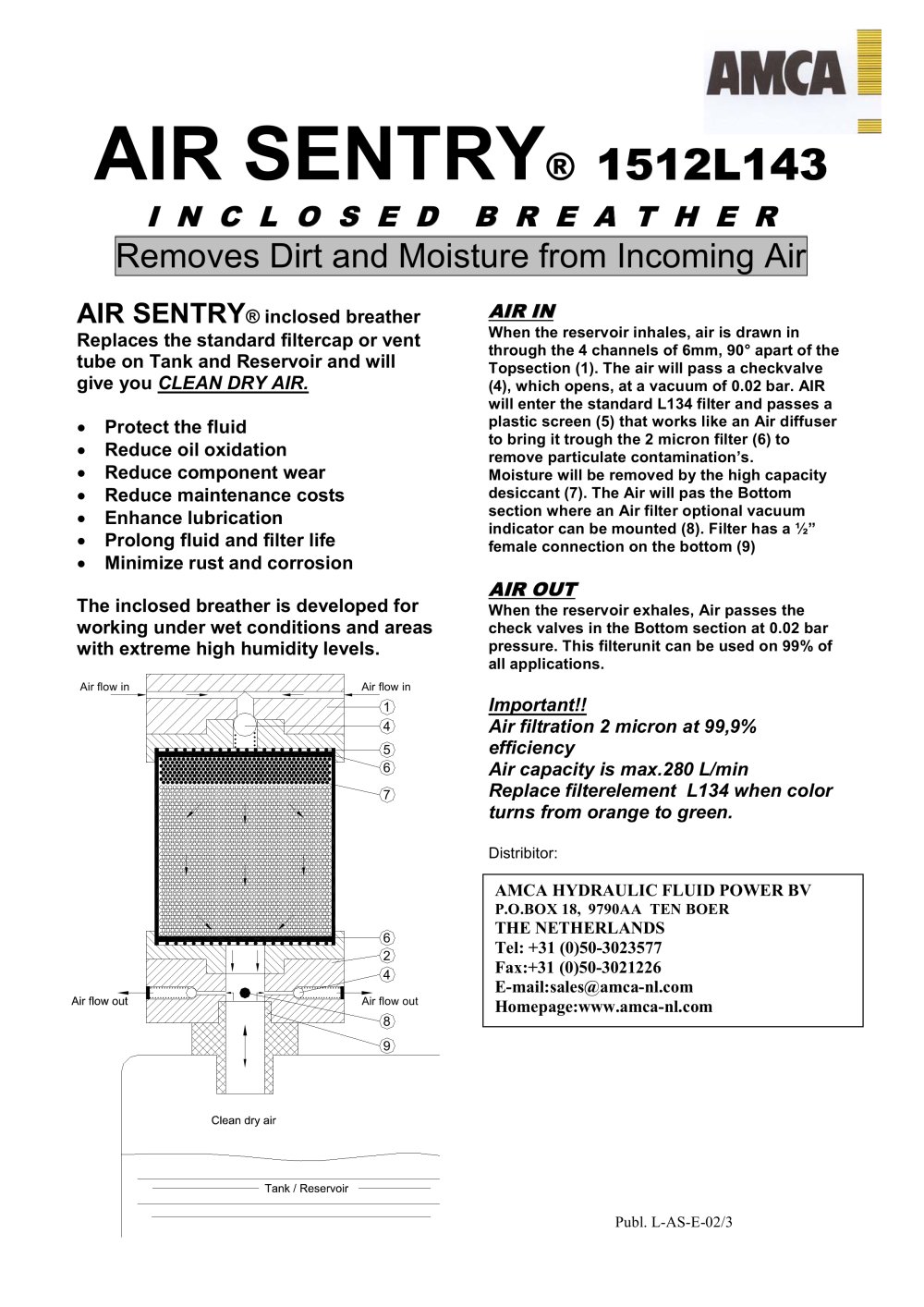

AIR SENTRY® 1512L143 I N C L O S E D B R E A T H E R Removes Dirt and Moisture from Incoming Air AIR SENTRY® inclosed breather Replaces the standard filtercap or vent tube on Tank and Reservoir and will give you CLEAN DRY AIR.
Protect the fluid
Reduce oil oxidation
Reduce component wear
Reduce maintenance costs
Enhance lubrication
Prolong fluid and filter life
Minimize rust and corrosion The inclosed breather is developed for working under wet conditions and areas with extreme high humidity levels. AIR IN When the reservoir inhales, air is drawn in through the 4 channels of 6mm, 90° apart of the Topsection (1). The air will pass a checkvalve (4), which opens, at a vacuum of 0.02 bar. AIR will enter the standard L134 filter and passes a plastic screen (5) that works like an Air diffuser to bring it trough the 2 micron filter (6) to remove particulate contamination’s. Moisture will be removed by the high capacity desiccant (7). The Air will pas the Bottom section where an Air filter optional vacuum indicator can be mounted (8). Filter has a ½” female connection on the bottom (9) AIR OUT When the reservoir exhales, Air passes the check valves in the Bottom section at 0.02 bar pressure. This filterunit can be used on 99% of all applications. Important!! Air filtration 2 micron at 99,9% efficiency Air capacity is max.280 L/min Replace filterelement L134 when color turns from orange to green. Distribitor: AMCA HYDRAULIC FLUID POWER BV P.O.BOX 18, 9790AA TEN BOER THE NETHERLANDS Tel: +31 (0)50-3023577 Fax:+31 (0)50-3021226 E-mail:sales@amca-nl.com Homepage:www.amca-nl.com Publ. L-AS-E-02/3 Air flow in Air flow in Air flow out 9 8 4 2 6 7 6 5 4 1
