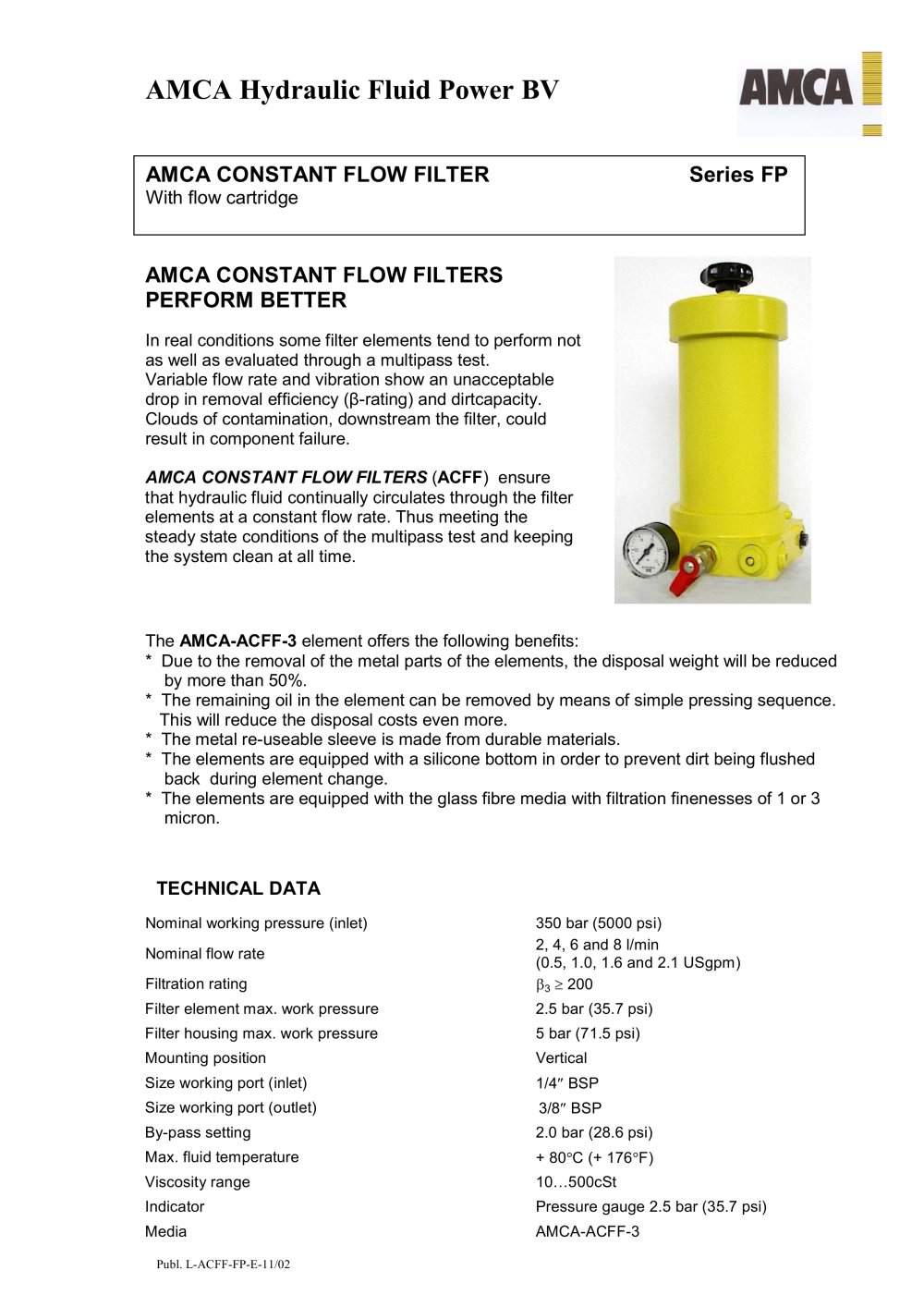

AMCA CONSTANT FLOW FILTER Series FP With flow cartridge Nominal working pressure (inlet) 350 bar (5000 psi) Nominal flow rate 2, 4, 6 and 8 l/min (0.5, 1.0, 1.6 and 2.1 USgpm) Filtration rating
3  200 Filter element max. work pressure 2.5 bar (35.7 psi) Filter housing max. work pressure 5 bar (71.5 psi) Mounting position Vertical Size working port (inlet) 1/4 BSP Size working port (outlet) 3/8 BSP By-pass setting 2.0 bar (28.6 psi) Max. fluid temperature + 80C (+ 176F) Viscosity range 10…500cSt Indicator Pressure gauge 2.5 bar (35.7 psi) Media AMCA-ACFF-3 TECHNICAL DATA AMCA CONSTANT FLOW FILTERS PERFORM BETTER In real conditions some filter elements tend to perform not as well as evaluated through a multipass test. Variable flow rate and vibration show an unacceptable drop in removal efficiency (â-rating) and dirtcapacity. Clouds of contamination, downstream the filter, could result in component failure. AMCA CONSTANT FLOW FILTERS (ACFF) ensure that hydraulic fluid continually circulates through the filter elements at a constant flow rate. Thus meeting the steady state conditions of the multipass test and keeping the system clean at all time. The AMCA-ACFF-3 element offers the following benefits: * Due to the removal of the metal parts of the elements, the disposal weight will be reduced by more than 50%. * The remaining oil in the element can be removed by means of simple pressing sequence. This will reduce the disposal costs even more. * The metal re-useable sleeve is made from durable materials. * The elements are equipped with a silicone bottom in order to prevent dirt being flushed back during element change. * The elements are equipped with the glass fibre media with filtration finenesses of 1 or 3 micron. Publ. L-ACFF-FP-E-11/02 AMCA Hydraulic Fluid Power BV
