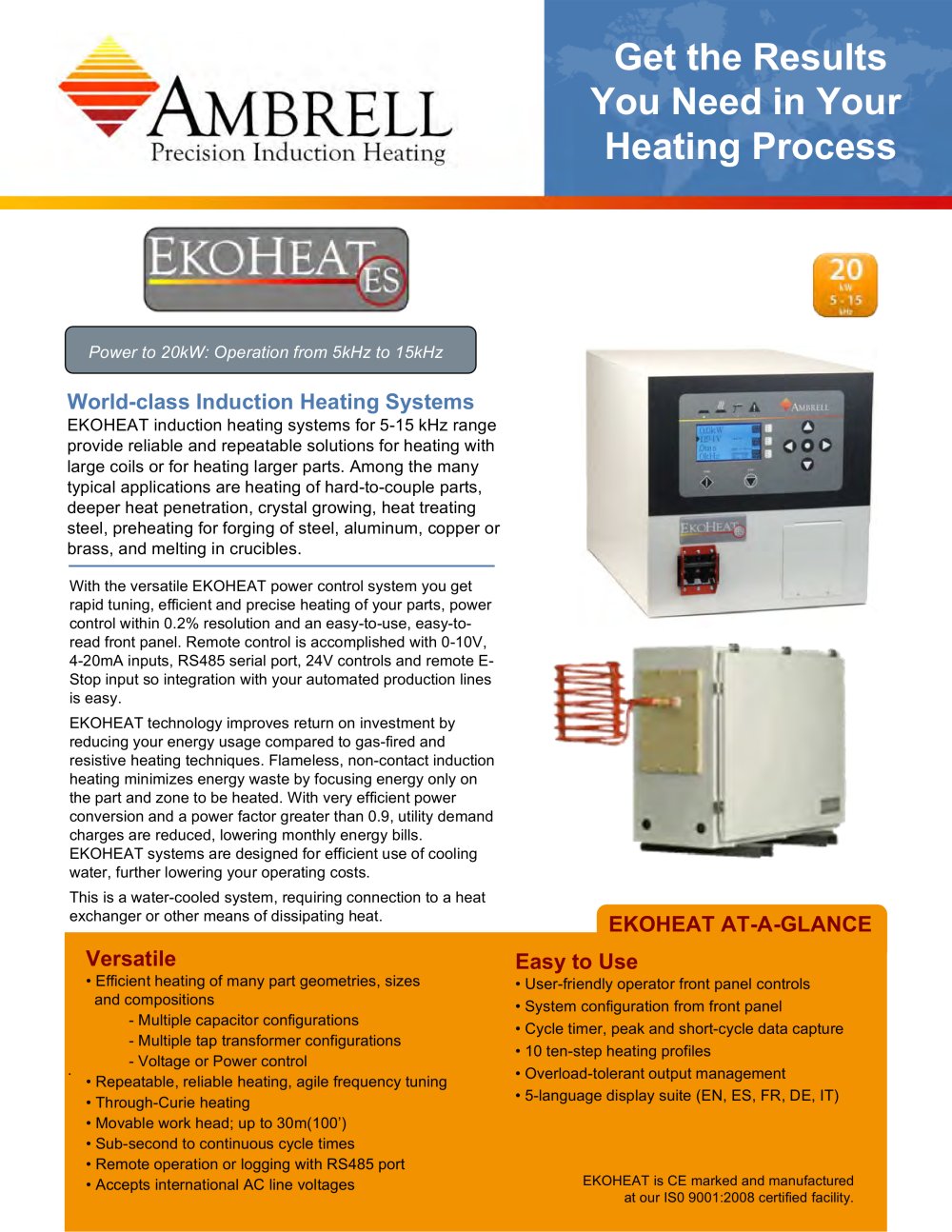

PowerPoint Presentation table.main {} tr.row {} td.cell {} div.block {} div.paragraph {} .font0 { font:8.00pt "Arial", sans-serif; } .font1 { font:13.00pt "Arial", sans-serif; } .font2 { font:22.00pt "Arial", sans-serif; } .font3 { font:13.00pt "Times New Roman", serif; } .font4 { font:56.00pt "Times New Roman", serif; } ^Ambrell Précision Induction Heating Get the Results You Need in Your Heating Process World-class Induction Heating Systems EKOHEAT induction heating Systems for 5-15 kHz range provide reliable and repeatable solutions for heating with large coils or for heating larger parts. Among the many typical applications are heating of hard-to-couple parts, deeper heat penetration, crystal growing, heat treating steel, preheating for forging of steel, aluminum, copper or brass, and melting in crucibles. With the versatile EKOHEAT power control system you get rapid tuning, efficient and precise heating of your parts, power control within 0.2% resolution and an easy-to-use, easy-to-read front panel. Remote control is accomplished with 0-10V, 4-20mA inputs, RS485 serial port, 24V controls and remote E-Stop input so integration with your automated production lines is easy. EKOHEAT technology improves return on investment by reducing your energy usage compared to gas-fired and resistive heating techniques. Flameless, non-contact induction heating minimizes energy waste by focusing energy only on the part and zone to be heated. With very efficient power conversion and a power factor greater than 0.9, utility demand charges are reduced, lowering monthly energy bills. EKOHEAT systems are designed for efficient use of cooling water, further lowering your operating costs. This is a water-cooled system, requiring connection to a heat exchanger or other means of dissipating heat. Versatile • Efficient heating of many part geometries, sizes and compositions - Multiple capacitor configurations - Multiple tap transformer configurations . - Voltage or Power control • Repeatable, reliable heating, agile frequency tuning • Through-Curie heating • Movable work head; up to 30m(100') • Sub-second to continuous cycle times • Remote operation or logging with RS485 port • Accepts international AC line voltages EKOHEAT AT-A-GLANCE Easy to Use • User-friendly operator front panel controls • System configuration from front panel • Cycle timer, peak and short-cycle data capture • 10 ten-step heating profiles • Overload-tolerant output management • 5-language display suite (EN, ES, FR, DE, IT) EKOHEAT is CE marked and manufactured at our IS0 9001:2008 certified facility.
