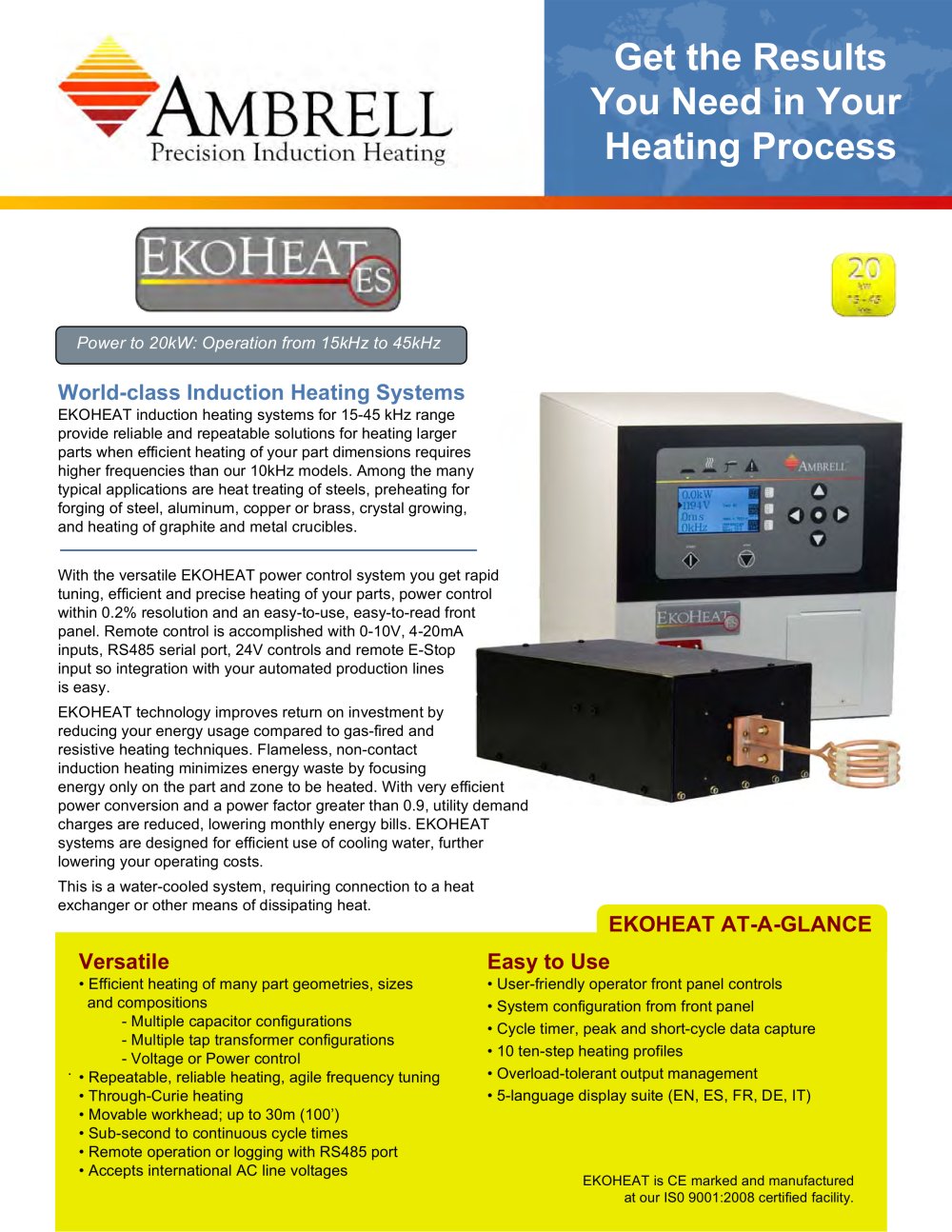

table.main {} tr.row {} td.cell {} div.block {} div.paragraph {} .font0 { font:10.00pt "Franklin Gothic Medium", sans-serif; } .font1 { font:14.00pt "Franklin Gothic Medium", sans-serif; } .font2 { font:15.00pt "Franklin Gothic Medium", sans-serif; } .font3 { font:16.00pt "Franklin Gothic Medium", sans-serif; } .font4 { font:22.00pt "Franklin Gothic Medium", sans-serif; } .font5 { font:20.00pt "Georgia", serif; } Précision Induction Heating y Power to 20kW: Opération from 15kHz to 45kHz World-class Induction Heating Systems EKOHEAT induction heating Systems for 15-45 kHz range provide reliable and repeatable solutions for heating larger parts when efficient heating of your pari dimensions requires higher fréquences than our 10kHz models, Among the many lypical applications are heat treating of steels, preheating for forging of steel, aluminum. copper or brass, crystal growing, and heating of graphite and métal crucibles. With the versatile EKOHEAT power control System you gel rapid tuning, efficient and précise heating of your parts, power control within 0.2% resolution and an easy-to-use, easy-to-read front panel Remote control is accomplished with 0-10V, 4-20mA inputs, RS485 sériai port, 24V contrats and remote E-Stop input so intégration with your automated production lines is easy. EKOHEAT technology improves retum on Investment by reducing your energy usage compared to gas-fired and résistive heating techniques. Flameless, non-contact induction heating minimizes energy waste by focusing energy only on the pari and zone to be heated. With very efficient power conversion and a power factor greater than 0.9, utility demand charges are reduced, lowering monthly energy bills. EKOHEAT Systems are designed for efficient use of cooling water, further lowering your operating costs. This is a water-cooled System, requiring connection to a heat exchanger or other means of dissipating heat. EKOHEAT AT-A-GLANCE Versatile • Efficient heating of many part geometries, sizes and compositions - Multiple capacitor configurations - Multiple tap transformer configurations - Voltage or Power control • Repeatable. reliable heating. agile frequency tuning • ThrouglvCurie heating • Movable workhead; up to 30m {100') • Sub-second to continuous cycle times • Remote opération or logging with RS485 port • Accents international AC line voltages Easy to Use * User-friendly operator front panel controls - System configuration from front pane! » Cycle timer. peak and short-cycle data capture -10 ten^step heating profiles * Overload-tolerant output management ■ 5-language display suite {EN, ES, FR, DE. IT) EKOHEAT is CE marked and manufacturée! at our ISO 9001:2008 certified facility.
