| Spiral SVX-DL | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||

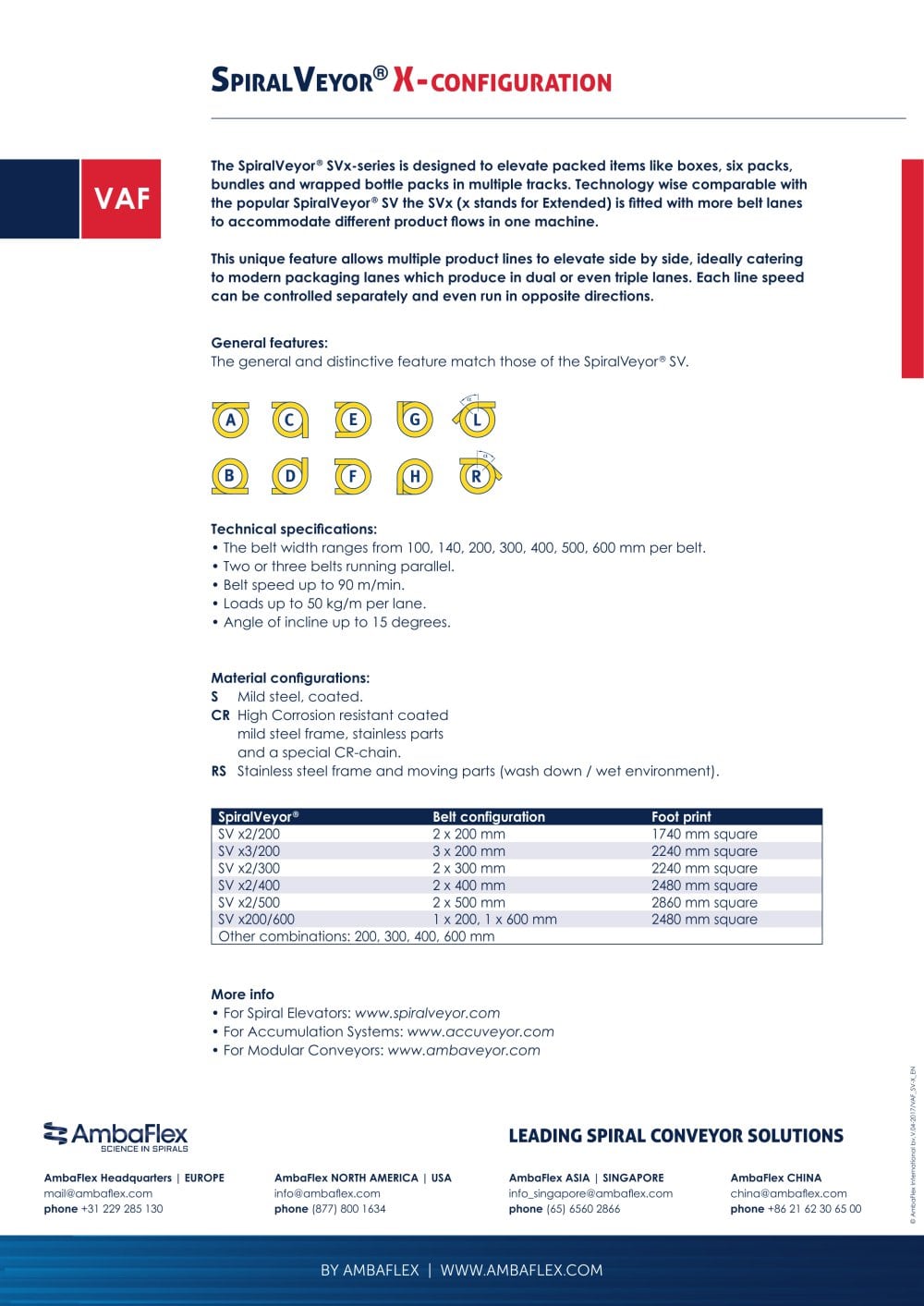

| The SpiralVeyor® SVX DL-series (Dual Lane) is designed to elevate packed items like boxes, six packs, bundles and wrapped bottle packs. Technology wise comparable with the popular SpiralVeyor® SV the SVX (X stands for Extended) is fitted with more belt lanes to accommodate different product flows in one machine. This unique feature allows multiple product lines to elevate side by side, ideally catering to modern packaging lanes which produce in dual lanes. Each line speed can be controlled separately and even run in opposite directions. | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| General features: The general and distinctive feature match those of the SpiralVeyor® SV. | Material configurations: S Mild steel, coated. CR High Corrosion resistant coated mild steel frame, stainless parts and a special CR-chain. RS Stainless steel frame and moving parts (wash down / wet environment). Alternative machines: ■ SpiralVeyor® SV Similar but with one lane only. ■ SpiralVeyor® SVX EB-series (Extended Belt). Similar machine where parallel belts are used as one belt to accommodate oversized products. ■ For smaller belt width or mass flow application we refer to the SpiralVeyor® SVM. | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Technical specifications: ■ The belt width ranges from 200 - 600 mm per belt. ■ Two or three belts running parallel. ■ Belt speed up to 90 m/min. ■ Loads up to 50 kg/m per lane. ■ Angle of incline up to 15 degrees. | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| More info: ■ For Spiral Elevators: www.spiralveyor.com ■ For Accumulation Systems: www.accuveyor.com ■ For Modular Conveyors: www.ambaveyor.com | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Amba | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| com | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| phone +31 (0)229 285 130 phone (877) 800 1634 phone (65) 6560 2866 | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Office EUROPE, Holland Office NORTH AMERICA, USA Office ASIA, Singapore | mall@ambaflex.com ˇnfo@ambaflex.com ˇnfo_slngapore@ambaflex.com | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
