Roller Shells - Our contribution to sustainability and cost reduction - Amandus Kahl - #1

Text version of the page

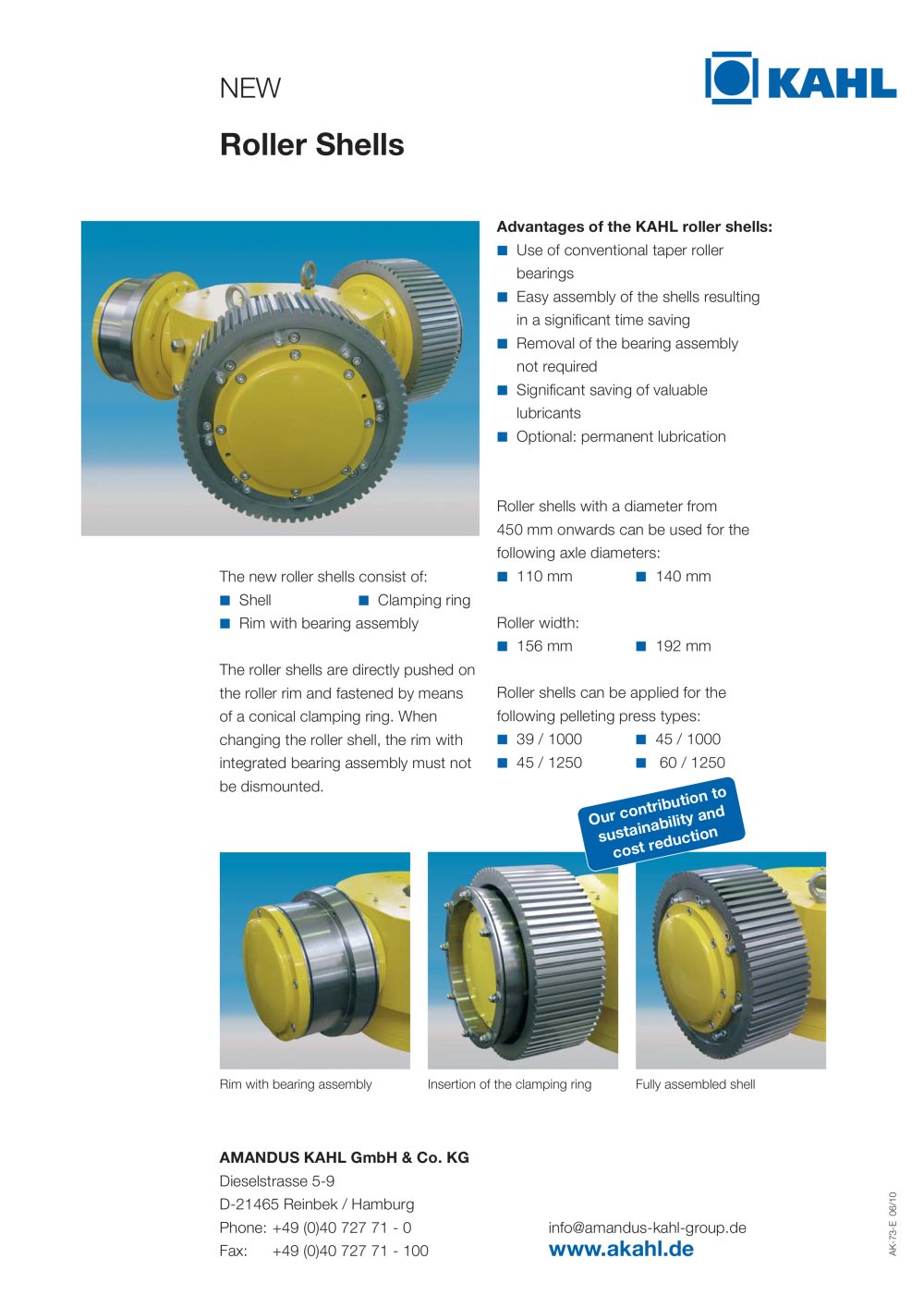

The new roller shells consist of: �¡ Shell �¡ Clamping ring �¡ Rim with bearing assembly The roller shells are directly pushed on the roller rim and fastened by means of a conical clamping ring. When changing the roller shell, the rim with integrated bearing assembly must not be dismounted. AMANDUS KAHL GmbH & Co. KG Dieselstrasse 5-9 D-21465 Reinbek / Hamburg Phone: +49 (0)40 727 71 - 0 Fax: +49 (0)40 727 71 - 100 info@amandus-kahl-group.de www.akahl.de bearings �¡ Easy assembly of the shells resulting in a significant time saving �¡ Removal of the bearing assembly not required �¡ Significant saving of valuable lubricants �¡ Optional: permanent lubrication Roller shells with a diameter from 450 mm onwards can be used for the following axle diameters: �¡ 110 mm �¡ 140 mm Roller width: �¡ 156 mm �¡ 192 mm Roller shells can be applied for the following pelleting press types: �¡ 39 / 1000 �¡ 45 / 1000 �¡ 45 / 1250 �¡ 60 / 1250 Rim with bearing assembly Insertion of the clamping ring Fully assembled shell Our contribution to sustainability and cost reduction
