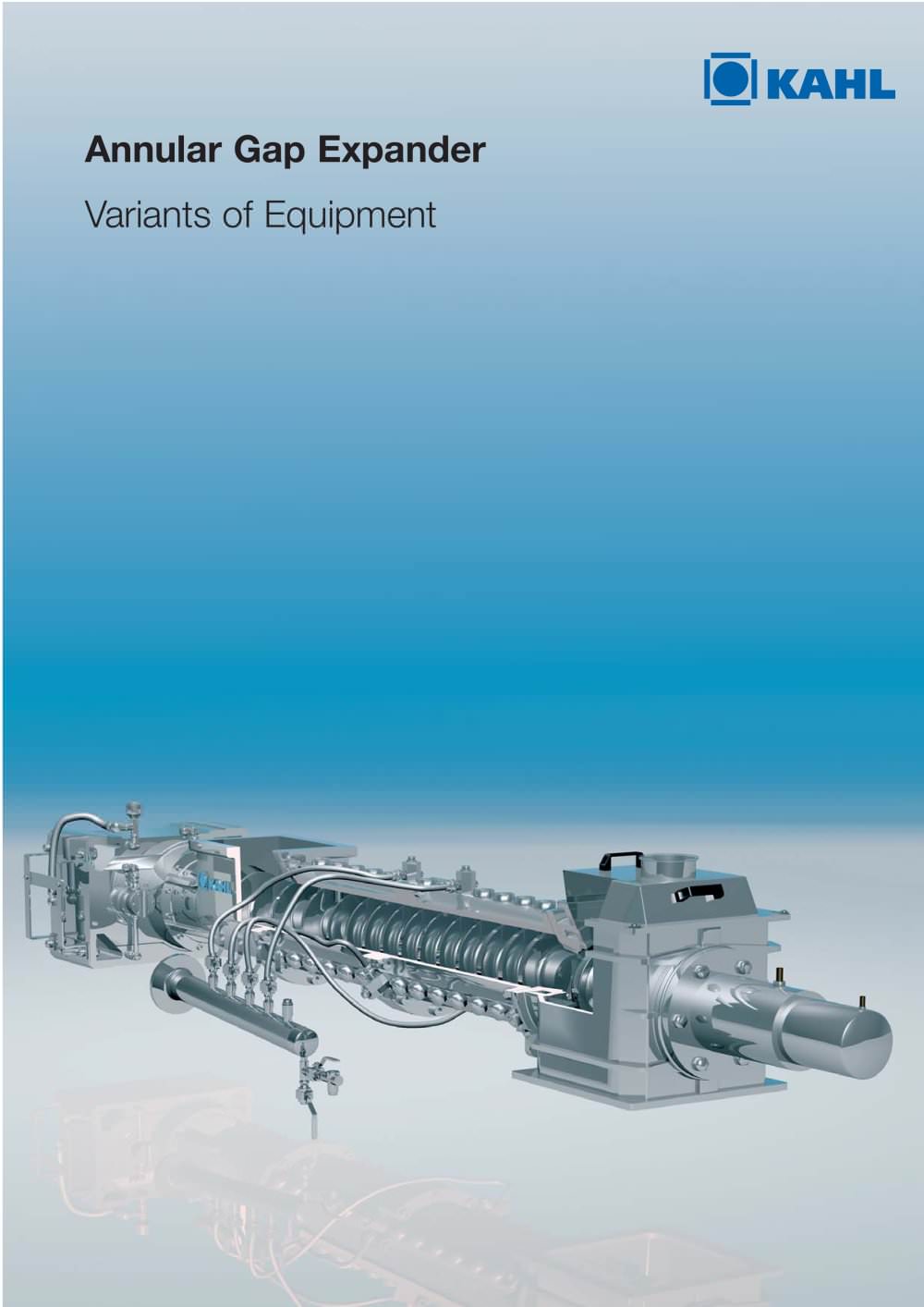

Annular Gap Expander Variants of Equipment

Standard version OE 15.2 OE 23.2 OE 30.1 [mm] [mm] [mm] A Total length* 5700 5420 4988 B Width 770 1020 1020 C Height 785 1005 1005 D Coupling – centre inlet 1816 1195 1215 E Inlet-motor* 2904 2400 2679 F Inlet-outlet (centre) 1935 2100 1387 H Frame 3880 1822 1822 Motor [kW] 55/75 (90**) 132/160 (200**) 250 Weight [kg]* 2600 4300 4550 * Depends on motor size ** Special execution Annular Gap Expander Variants A E D H Possible Drives Gear with integrated bearing (OE 23/30/38) Gear and coupling (OE 15 + OE 45) Motors 55 – 630 kW

Open the catalog to page 2

OE 30.2 OE 38.2 OE 45.3 [mm] [mm] [mm] 5760 6334 8790 1020 1320 1245 1005 1190 1390 1215 1502 2925 2679 3073 5160 2157 2315 2670 1822 2160 6430 250 (315**) 315 (450**) 500/630 5050 8000 13300 A F C Product inlet Product outlet Standard Outlet Product separator, standard equipment Final cone Options Steam distributor with steam nozzles, hoses, and regulation system Laboratory expander OE 8 Die and cutting device

Open the catalog to page 3

1359 / 11.07 E Dimensions [mm] OE 23/30 OE 38/45 L Length 1380 1750 H Height 360 520 A Width (overall) 696 1036 B Width (housing) 610 950 Motor [kW] 2 x 5,5/7,5 2 x 11-22 Weight [kg] 370 860 Two-shaft crusher: standard crusher for expanded compound feed before pelleting Annular Gap Expander Various Crushers Two-shaft Crusher Crushers/Structurers Structuring device: special crusher for components with high starch contents and structured expanded products without pelleting (crumbles) H L A B AMANDUS KAHL GmbH & Co. KG Dieselstrasse 5-9 D-21465 Reinbek / Hamburg Phone: +49 (0)40 727 71 - 0...
