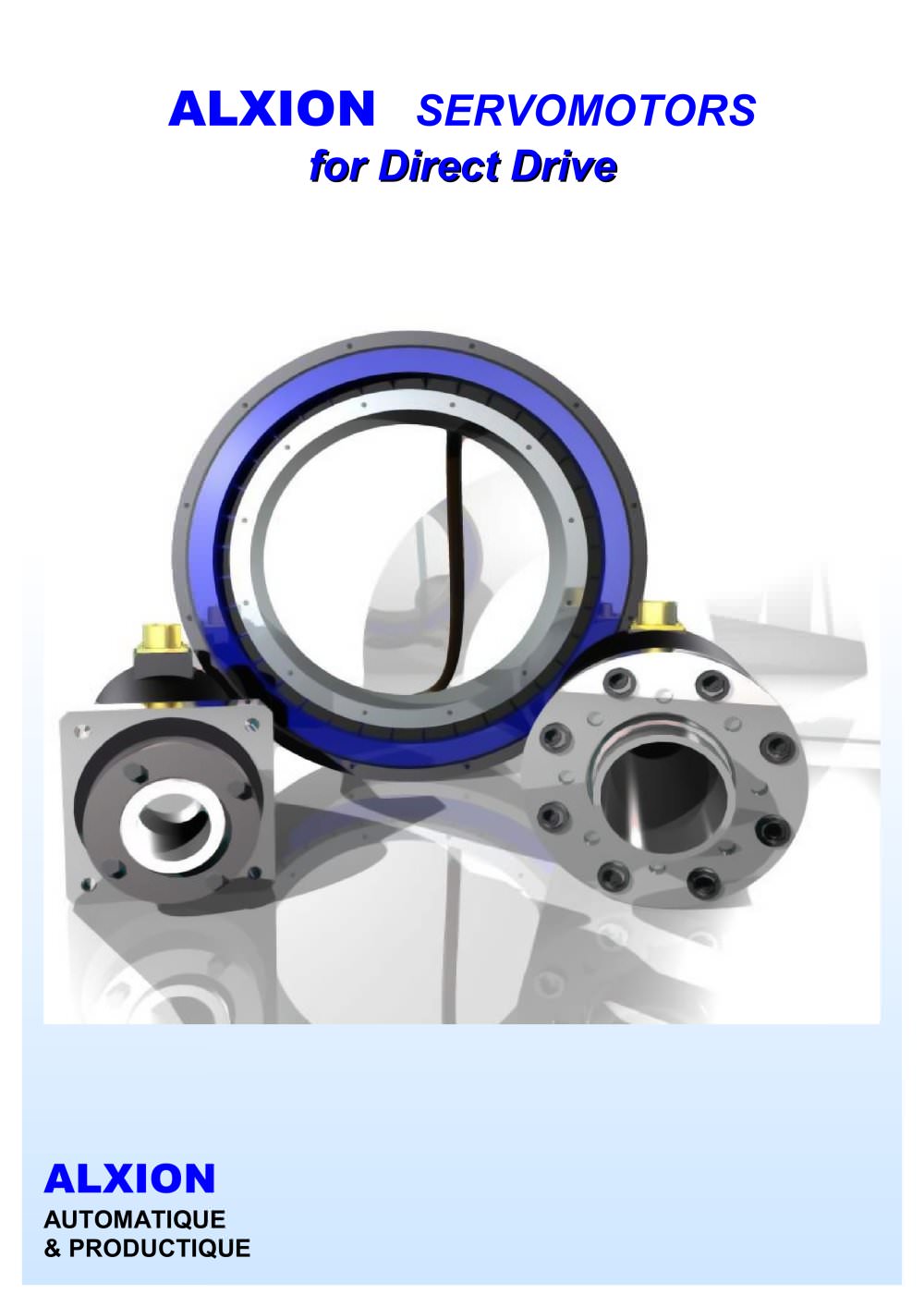

Designed with the aim of addressing new industrial needs, has created ST low inertia motors range for DIRECT DRIVE allowing acceleration up to 20 000 rad/s. ST range is proposed in three diameters, 145, 190 and300 mm with a variety of hollow shafts up to internal diameter 75 mm, blind shafts or solid shafts. Rated torques cover a wide range between 14.6 Nm and 235 Nm in natural convection, and the peak torque covers from 55 Nm up to 1161 Nm. The motors can reach a rated speed from 200 rpm up to 1500 rpm according to the windings and allow a high regularity of rotation at low speed.Those motors...

L 3 Keyway is optional, see codification for ST motors >

12Direct Drive Catalogue V4,0RESOLVERS RES FC range >

FRAMELESS BRUSHLESSFRAMELESS BRUSHLESSMOTORSMOTORSFOR DIRECT DRIVEFOR DIRECT DRIVE STKSTK >

Optionally STK armatures and rotors can be shipped mounted on a centering and positioning flange for avoiding the user to make the operation of mounting and centering the rotor inside the stator. > The armature is the source of both current losses and hysteretic and eddy current losses. It will be necessary to take it into account for integrating the motor. Here are the main elements to be taken in consideration:-Permanent torques of the motors are indicated for a copper temperature rise of 120C for armatures in contact with ambient air or integral on all their peripheral area with a metallic...

Various positioning sensor interfaces: the drives can be compatible with 4 kinds of positioning interfaces:-Resolver:The resolvers are in the best cases ( resolver RES FC6 72 32) limited to an accuracy of 1 arc minute. In most of the resolvers available on the market, accuracy is rather around several minutes.It will be necessary to check whether the desired positioning accuracy is compatible with the resolver accuracy and also the electronic resolver-to-digital circuit. On another hand, the resolvers limit the applications due to the crossing hollow shaft. The resolvers RES FC6 72 32 allow a...

DIMENSIONS FORALL 145 STK DIMENSIONS ACCORDING TO SIZE > 18Direct Drive Catalogue V4,0STK range size="-1">

DIMENSIONS FORALL 190 STK DIMENSIONS ACCORDING TO SIZE > 20Direct Drive Catalogue V4,0STK range size="-1">

DIMENSIONS FOR ALL 300 STK DIMENSIONS ACCORDING TO SIZE > 22Direct Drive Catalogue V4,0STK range size="-1">

DIMENSIONS FOR ALL 400 STK DIMENSIONS ACCORDING TO SIZE > 24Direct Drive Catalogue V4,0STK range size="-1">

DIMENSIONS FOR ALL 500 STK DIMENSIONS ACCORDING TO SIZE > 26Direct Drive Catalogue V4,0STK range size="-1">

28Direct Drive Catalogue V4,0STK range >

C Z W W L H F > Motor diameter Size Cooling Power input Windingcode Cable length Motor technology Mounting flange 145STK 1 Natural convection A Cable side 190STK 2 Liquid cooling B No cables side 300STK 3 Integrated cooling jacket No mounting flange 400STK 500STK H High precision 145STK, 190STK 800STK S Standard precision 145STK, 190STK X High precision for 300STK-800STK C Shielded cable input W 4 wires without shield 2 meters X 4 wires shielded 1 3 meters > ... 9 11 meters > A to Z Special C:Cooling:1:Natural convection:Motor housing without cooling grooves2:Liquid cooling:Motor housing with...
