ensor

tncentration

PATENTED

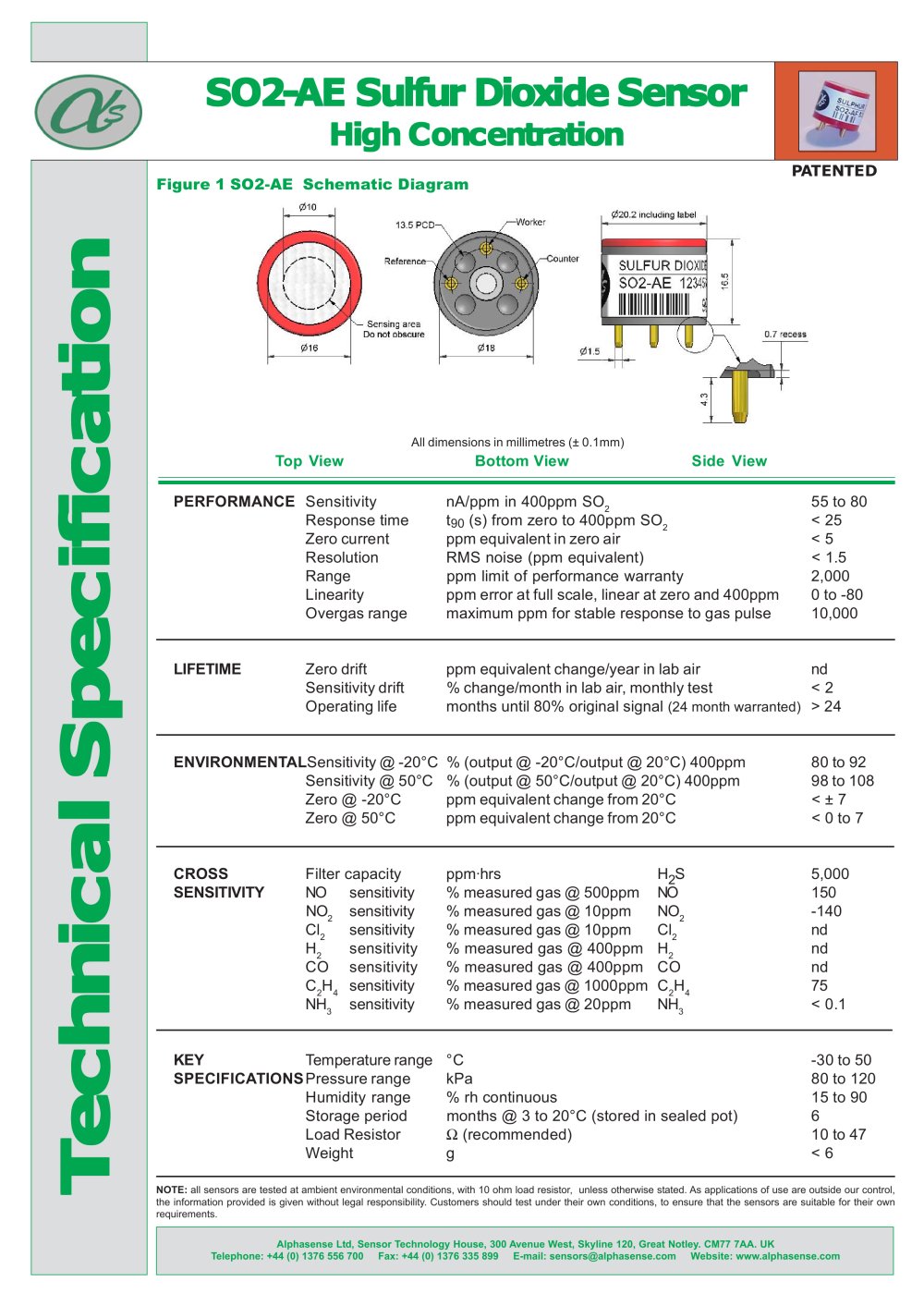

Figure 1 SO2-AE Schematic Diagram

All dimensions in millimetres (± 0.1mm)

Bottom View

Side View

Top View


PERFORMANCE	Sensitivity	nA/ppm in 400ppm SO₂	55 to 80
	Response time	t90 (s) from zero to 400ppm SO₂	< 25
	Zero current	ppm equivalent in zero air	< 5
	Resolution	RMS noise (ppm equivalent)	< 1.5
	Range	ppm limit of performance warranty	2,000
	Linearity	ppm error at full scale, linear at zero and 400ppm	0 to -80
	Overgas range	maximum ppm for stable response to gas pulse	10,000
LIFETIME	Zero drift	ppm equivalent change/year in lab air	nd
	Sensitivity drift	% change/month in lab air, monthly test	< 2
	Operating life	months until 80% original signal (24 month warranted)	> 24
ENVIRONMENTALSensitivity @ -20C % (output @ -20^<C/output @ 20^<C) 400ppm			80 to 92
	Sensitivity @ 50C	% (output @ 50°C/output @ 20°C) 400ppm	98 to 108
	Zero @ -20C	ppm equivalent change from 20C	< ± 7
	Zero @ 50C	ppm equivalent change from 20C	< 0 to 7
CROSS	Filter capacity	ppmhrs	5,000
SENSITIVITY	NO sensitivity	% measured gas @ 500ppm NO	150
	NO₂ sensitivity	% measured gas @ 10ppm NO₂	-140
	Cl₂ sensitivity	% measured gas @ 10ppm Cl₂	nd
	H₂ sensitivity	% measured gas @ 400ppm H₂	nd
	CO sensitivity	% measured gas @ 400ppm CO	nd
	C₂H₄ sensitivity	% measured gas @ 1000ppm C₂H₄	75
	NH₃ sensitivity	% measured gas @ 20ppm NH₃	< 0.1
KEY	Temperature range	C	-30 to 50
SPECIFICATIONS Pressure range		kPa	80 to 120
	Humidity range	% rh continuous	15 to 90
	Storage period	months @ 3 to 20C (stored in sealed pot)	6
	Load Resistor	Q (recommended)	10 to 47
	Weight	^g	< 6

NOTE: all sensors are tested at ambient environmental conditions, with 10 ohm load resistor, unless otherwise stated. As applications of use are outside our control, the information provided is given without legal responsibility. Customers should test under their own conditions, to ensure that the sensors are suitable for their own requirements.

Alphasense Ltd, Sensor Technology House, 300 Avenue West, Skyline 120, Great Notley. CM77 7AA. UK Telephone: +44 (0) 1376 556 700 Fax: +44 (0) 1376 335 899 E-mail: sensors@alphasense.com Website: www.alphasense.com
