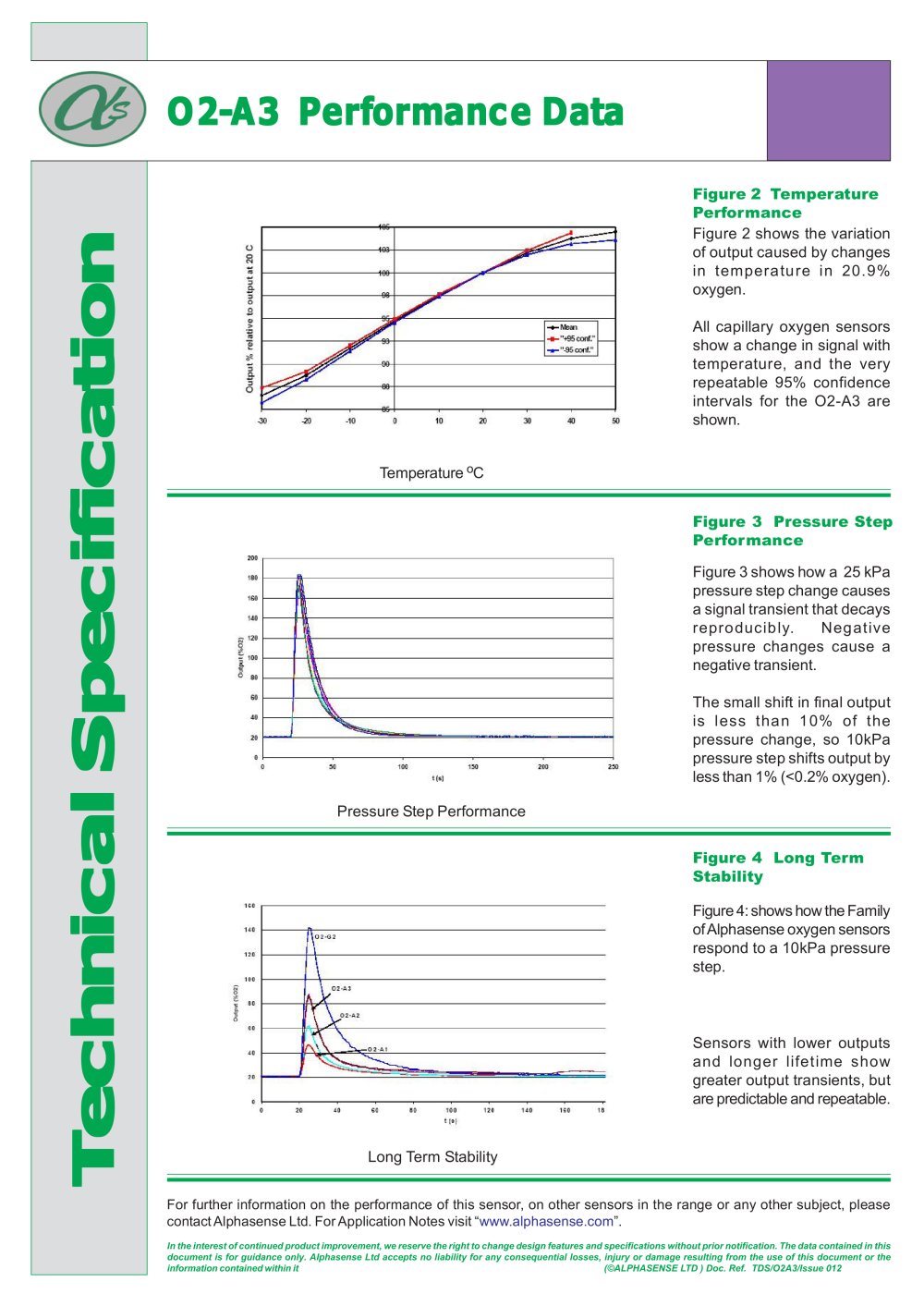

O2-A3 PO2-A3 PO2-A3 PO2-A3 PO2-A3 Perferferferferformance Daormance Daormance Daormance Daormance Datatatatata

Figure 2 TemperaturePerformance Figure 3 Pressure StepPerformance Figure 2 shows the variationof output caused by changes in temperature in 20.9% oxygen.All capillary oxygen sensorsshow a change in signal with temperature, and the very repeatable 95% confidence intervals for the O2-A3 are shown. Figure 4: shows how the Familyof Alphasense oxygen sensors respond to a 10kPa pressure step.Sensors with lower outputsand longer lifetime show greater output transients, but are predictable and repeatable.
o C Figure 3 shows how a 25 kPapressure step change causes a signal transient that decays reproducibly. Negative pressure changes cause a negative transient.The small shift in final outputis less than 10% of the pressure change, so 10kPa pressure step shifts output by less than 1% (<0.2% oxygen). Temperature Pressure Step Performance Long Term Stability Figure 4 Long TermStability
TTTTTececececechnical Specifhnical Specifhnical Specifhnical Specifhnical Specificaicaicaicaicationtiontiontiontion For further information on the performance of this sensor, on other sensors in the range or any other subject, please contact Alphasense Ltd. For Application Notes visit “www.alphasense.com”. In the interest of continued product improvement, we reserve the right to change design features and specifications without prior notification. The data contained in thisdocument is for guidance only. Alphasense Ltd accepts no liability for any consequential losses, injury or damage resulting from the use of this document or theinformation contained within it(©ALPHASENSE LTD ) Doc. Ref. TDS/O2A3/Issue 012
